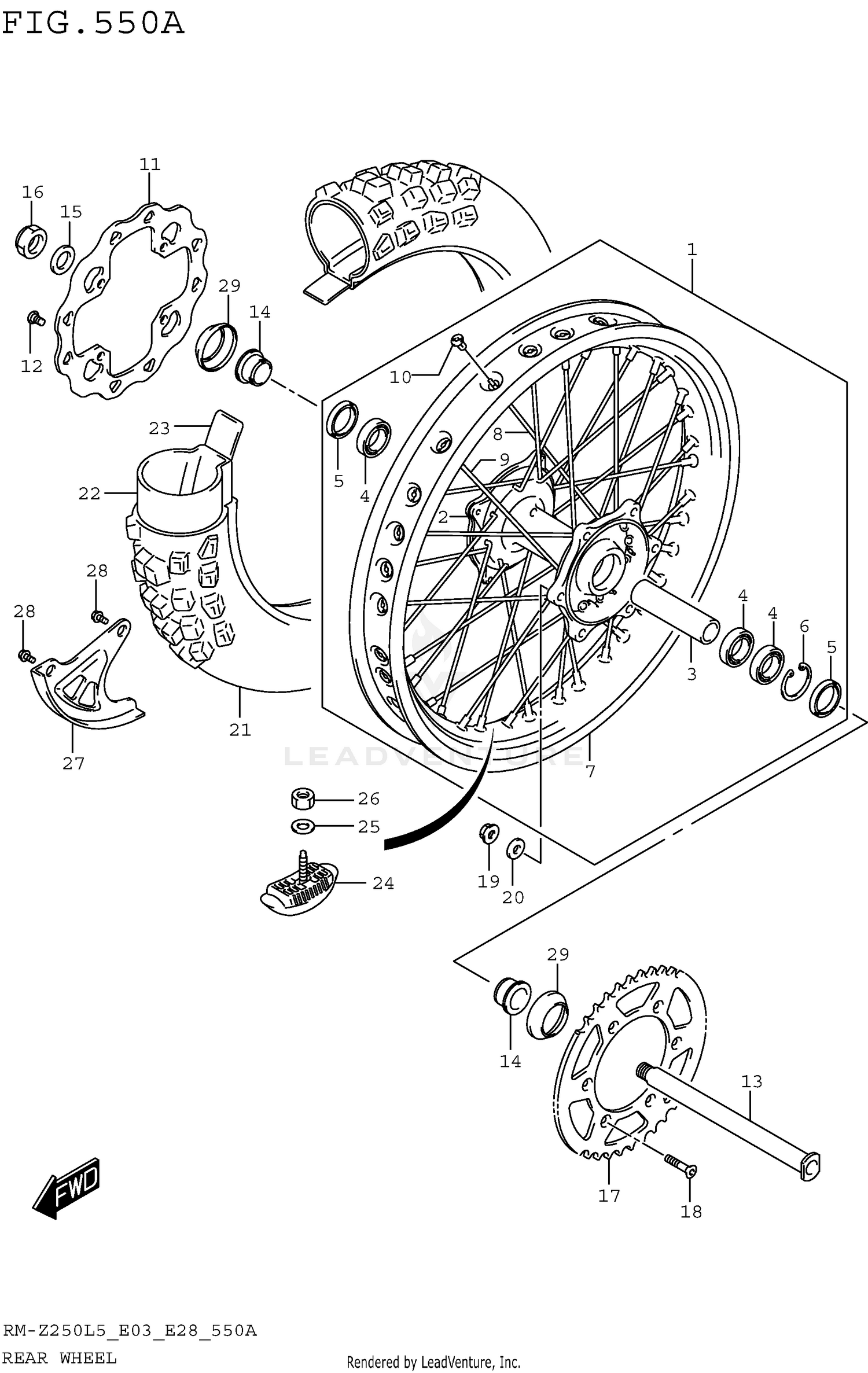

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL ASSY,REAR
64100-10H00
Superseded by 64100-10H01
|
$1,046.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
.HUB,REAR
64111-35G20
Superseded by 64111-35G30
|
$293.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SPACER,REAR HUB BEARING
64731-35G01
|
$42.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (25X42X9)
09262-25139
Superseded by 09262-25192
|
$48.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL,OIL (32X43X7)
09283-32045
Superseded by 09283-32049
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-41429
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIM, REAR WHEEL (19X1.85)
65311-10H00
|
$335.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SPOKE,REAR WHEEL INNER
65321-35G10
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SPOKE,REAR WHEEL OUTER
65322-35G10
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
.NIPPLE,REAR WHEEL
65325-35G10
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISC,REAR BRAKE
69211-28H10
|
$225.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (8X15)
09139-08022
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
AXLE,REAR
64711-35G10
|
$126.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER, REAR AXLE
64751-28H00
|
$38.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (22X35X2)
09160-22081
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-22007
|
$23.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET,RR (NT:49)
64511-28E00
|
$129.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET,REAR (NT:47-520)
64511-29F00
|
$183.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET,REAR (NT:50)
64511-36E00
|
$135.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET,REAR (NT:48)
64511-37E00
|
$187.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET, REAR (NT:51)
64511-40261
|
$166.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (8X28)
09120-08017
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
09159-08133
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (8.5X16X1.2)
09160-08082
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE, REAR (100/90-19 57M)
65110-49H00
|
$216.46 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE
55200-44610
Superseded by 55200-44611
|
$42.86 | ||
|
Unavailable |
|||
|
#23
PROTECTOR, WHEEL INNER TUBE
65261-01B30
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#24
STOPPER,BEAD (1.85)
65270-43D00
|
$63.46 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER,LOCK
08322-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08310-0008A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, REAR DISC
69231-37F20
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT (6X12)
09116-06197
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER,REAR AXLE SPACER
64752-28H00
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
