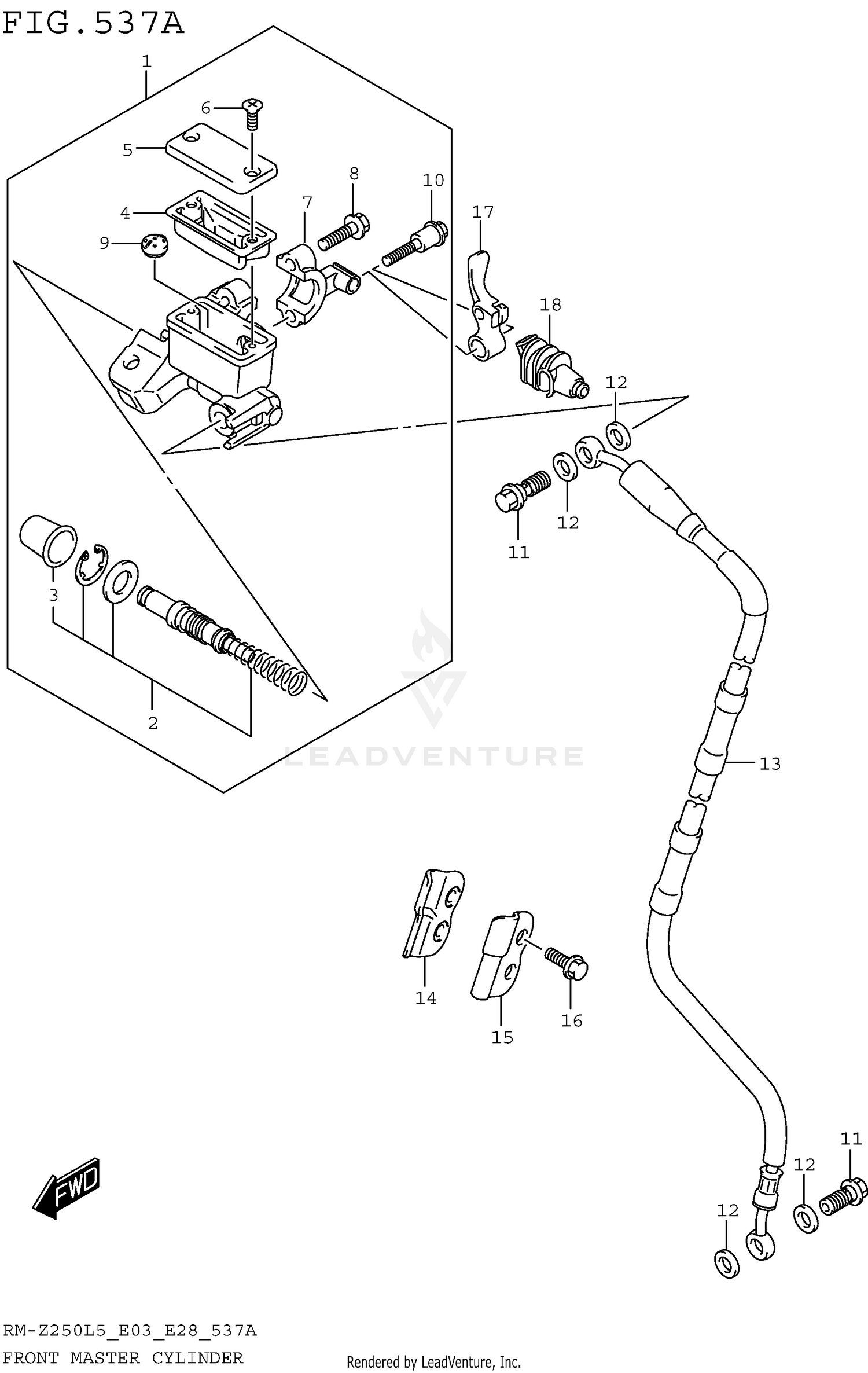

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-28H00
|
$261.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON & CUP SET
59600-37810
|
$66.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
59666-44300
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM
59667-14500
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
59669-27C01
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
69689-49300
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER
59671-28H00
|
$38.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT
59675-06F10
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEPARATOR
59748-36E00
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, MASTER CYLINDER HOLDER
57517-28H00
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
UNION
09360-10065
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE,FR BRAKE
59480-28H00
Superseded by 59480-28H01
|
$224.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, FR BRAKE HOSE INNER
59260-28H20
|
$32.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP,FRONT BRAKE HOSE
59271-28H10
|
$14.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, MASTER CYLINDER HOLDER
57153-28H01
|
$17.83 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, HOLDER LEVER
57516-28H10
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
