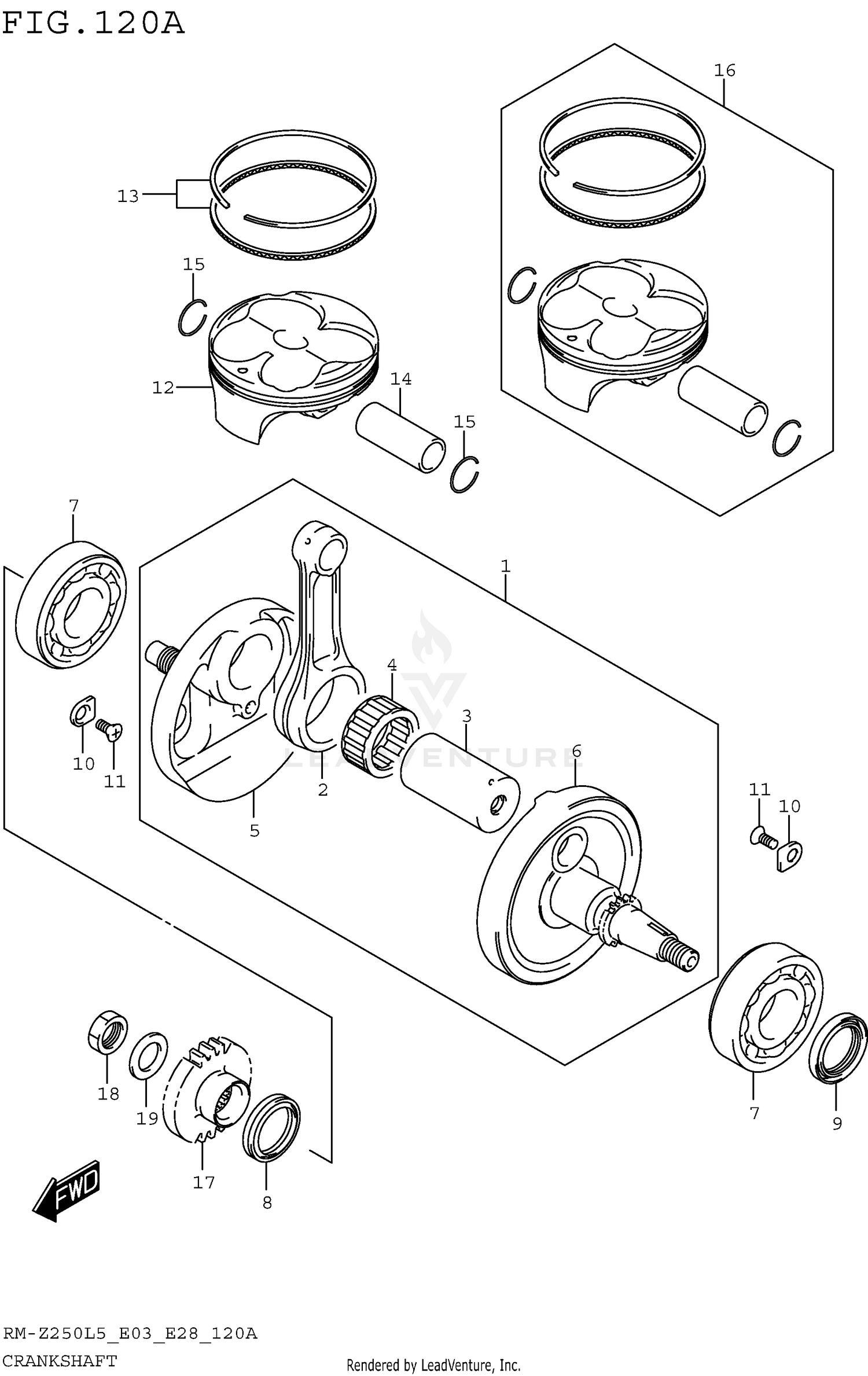

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-49H10
Superseded by 12200-49H11
|
$676.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROD, CONNECTING
12161-49H00-0B0
|
$178.92 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN, CRANK
12210-49H00
Superseded by 12210-49H10
|
$76.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (30X38X18)
09263-30060-0B0
|
$106.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT, RH
12220-49H00
|
$300.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT, LH
12261-49H00
|
$315.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING (30X63X16)
09262-30122
|
$108.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL,OIL (30X40X7)
09283-30061
Superseded by 09283-30076
|
$19.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (30X40X6)
09283-30069
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, CRANKSHAFT BEARING
24741-37F00
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON (YELLOW)
12111-49H10-0F0
|
$154.61 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING SET, PISTON
12140-10810
|
$48.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, PISTON
12151-49H00
|
$18.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
SNAP RING
09381-16001
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PISTON KIT
12110-49820
|
$291.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, PRIMARY DRIVE (NT:19)
21111-49H00
|
$107.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09140-16037
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
09164-16002
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
