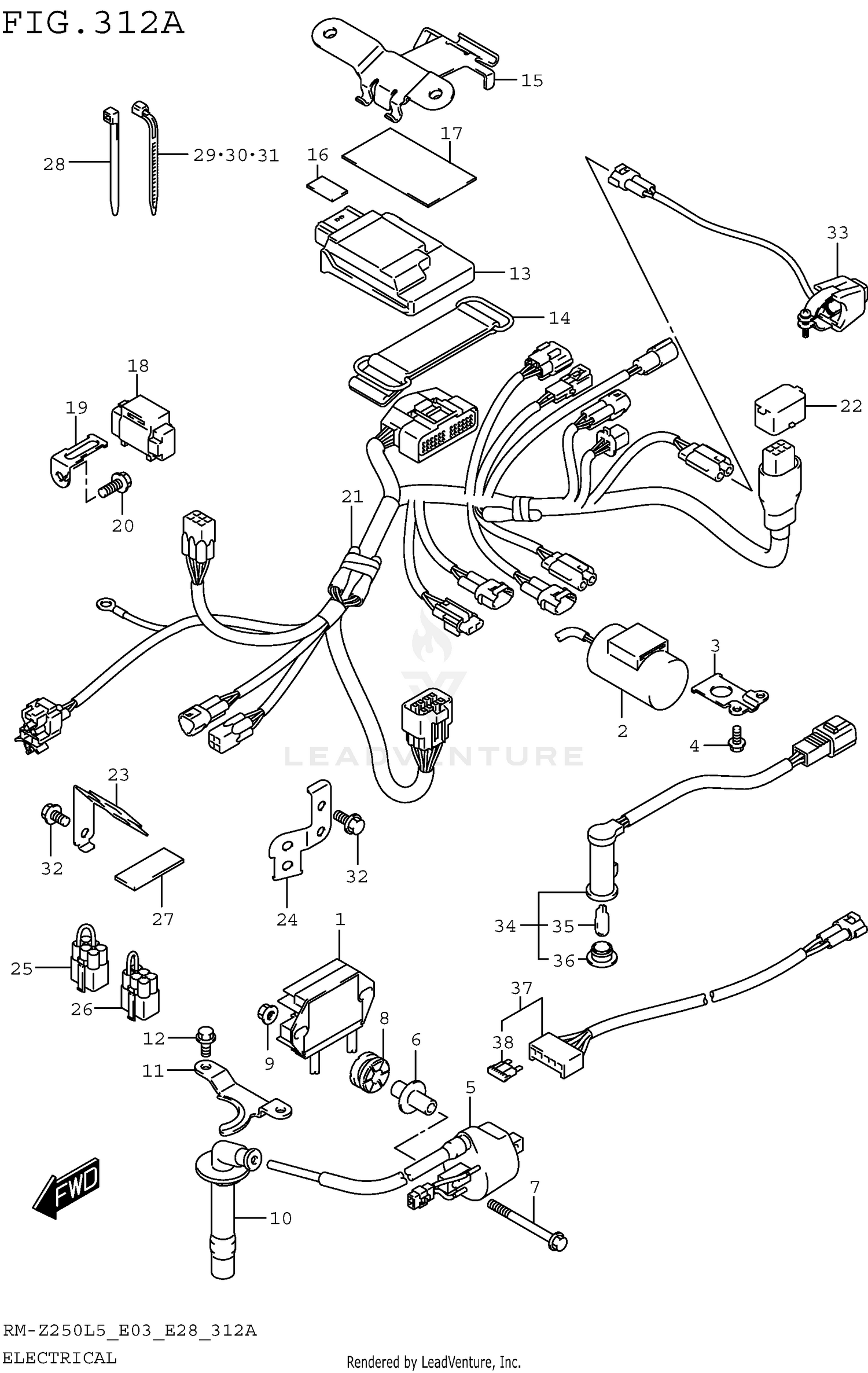

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER ASSY
32800-28H00
|
$262.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONDENSER ASSY
33640-28H00
|
$206.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, CONDENSER
33641-28H00
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X10)
09103-06188
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
COIL ASSY, IGNITION
33410-28H00
|
$127.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, IGNITION COIL
33419-49H00
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (6X60)
09103-06253
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09320-10062
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY, SPARK PLUG
33510-49H00
|
$64.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
RETAINER, SPARK PLUG CAP
33414-49H00
|
$12.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0610B
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONTROL UNIT, FI
32920-49HC1
|
$709.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, FI CONTROL UNIT
32942-14301
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, FI CONTROL UNIT
32931-49H00
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR, CDI (30X50X3.0)
33652-36000
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
PROTECTOR, CDI (30X50X3.0)
33652-36000
|
$2.88 | ||
|
Unavailable |
|||
|
#18
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, FUEL CUT SENSOR
33961-49H00
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW (6X16)
02162-0616A
Superseded by 02162-0616B
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#21
HARNESS, WIRING
36610-49H20
|
$395.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP,TS
36654-46H00
Superseded by 36654-46H01
|
$14.24 | ||
|
Unavailable |
|||
|
#23
BRACKET, COUPLER
36672-49H00
|
$7.05 | ||
|
Unavailable |
|||
|
#24
BRACKET, COUPLER
36672-49H10
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
WIRE,SHORT
36852-28H00
Superseded by 36852-28H01
|
$14.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
WIRE,SHORT
36852-49H00
Superseded by 36852-49H01
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#27
PROTECTOR,WIRING HARNESS (20X
36920-45G00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP (L:95)
09407-10403
|
$1.58 | ||
|
Unavailable |
|||
|
#29
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
01547-0610A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#33
SWITCH ASSY, ENGINE STOP
37820-49H00
|
$66.95 | ||
|
Available to order. Add to View Price |
|||
|
#34
LAMP ASSY, FI INDICATOR
36380-28H00
|
$87.53 | ||
|
Available to order. Add to View Price |
|||
|
#35
BULB (12V,3.4W)
09471-12028
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#36
LENS (RED)
36321-28H00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#37
WIRE, BATTERY
36890-28H00
|
$51.96 | ||
|
Available to order. Add to View Price |
|||
|
#38
FUSE (10A)
09481-10101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
