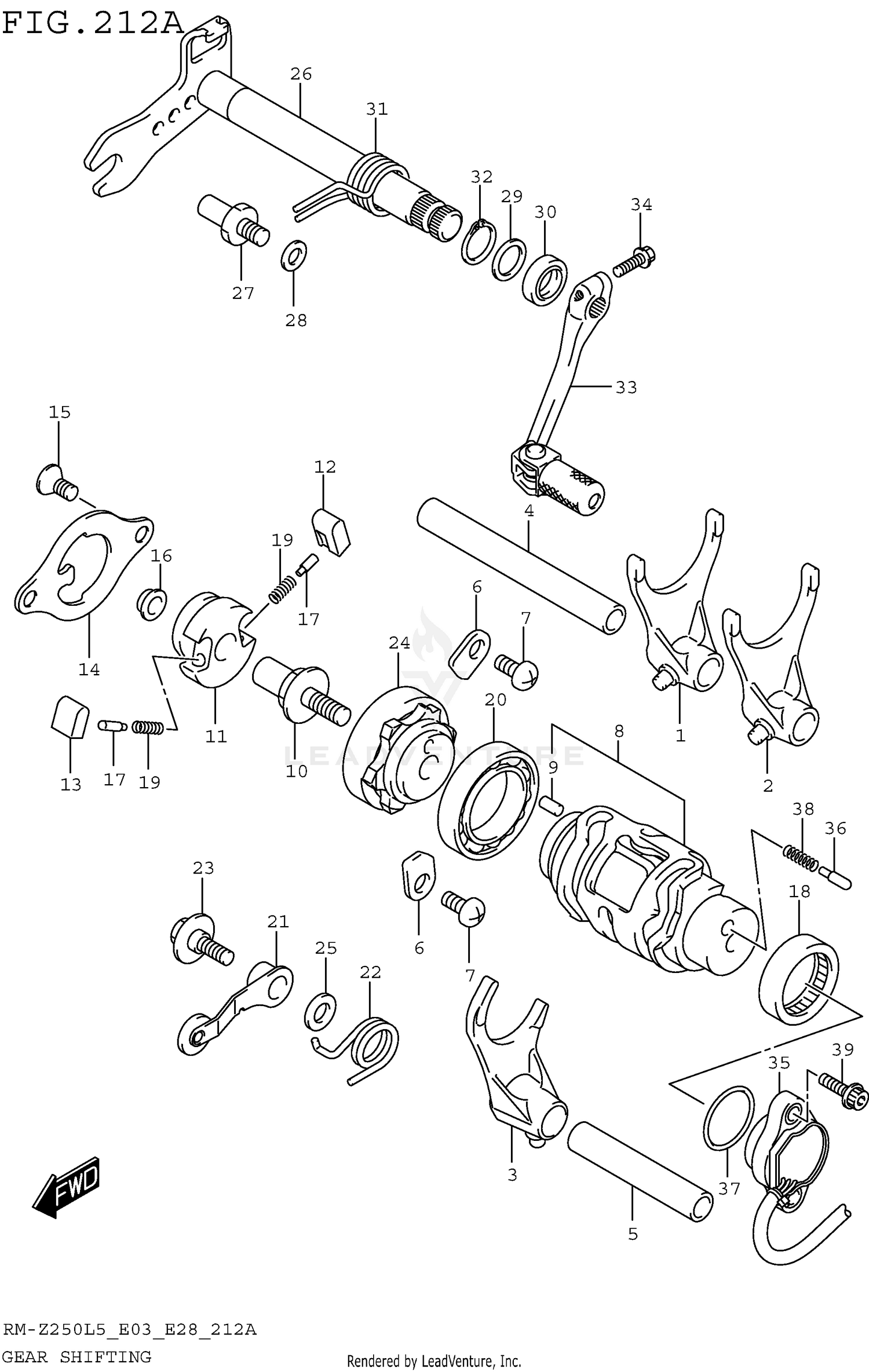

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, GEAR SHIFT NO.1
25211-49H00
|
$95.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, GEAR SHIFT NO.1
25211-49H00
|
$95.63 | ||
|
Unavailable |
|||
|
#3
FORK, GEAR SHIFT NO.3
25231-49H00
|
$92.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEAR SHIFT FORK NO.1
25411-37F20
|
$24.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, GEAR SHIFT FORK NO.2
25421-27C01
|
$19.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER
24741-21A00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (6X12)
09125-06122
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAM, GEAR SHIFT
25310-49H10
|
$202.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
.PIN
04221-04089
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, SHIFT CAM DRIVEN GEAR
25313-37F00
|
$15.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIFTER, GEAR SHIFT CAM
25322-28H00
|
$69.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAWL,GEAR SHIFT,NO.1
25323-34201
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAWL,GEAR SHIFT,NO.2
25324-34201
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
LIFTER, GEAR SHIFT PAWL
25331-49H00
|
$23.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (6X12)
09126-06011
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (7X10X5)
09180-07014
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN (5X8)
09209-05023
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING (25X32X12)
09263-25018
|
$26.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
09440-04003
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BEARING
08140-69050
|
$43.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
STOPPER, GEAR SHIFT CAM
25350-10H00
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, SHIFT CAM STOPPER
25355-49H10
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SHIFT CAM STOPPER
25357-29F10
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, SHIFT CAM STOPPER
25381-49H00
Superseded by 25381-49H10
|
$49.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
08211-06121
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHAFT,GEAR SHIF
25510-49H00
Superseded by 25510-49H01
|
$76.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
STOPPER, GEAR SHIFT ARM
25671-10H00
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM (8.8X14X1)
09181-08139
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIM (14X20X1)
09181-14139
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL, SHIFT SHAFT (14X22X6)
09283-14005
Superseded by 09283-14006
|
$8.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SPRING
09444-20011
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
08331-3114A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#33
LEVER ASSY, GEAR SHIFT
25600-10H21
|
$89.93 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
BASE ASSY,GEAR SHIFT TERM
37730-49H00
|
$135.43 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN (5X15.5)
09209-05011
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#37
O RING (D:2.4,ID:26.2)
09280-26005
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING
09440-04010
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
07120-0516A
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
