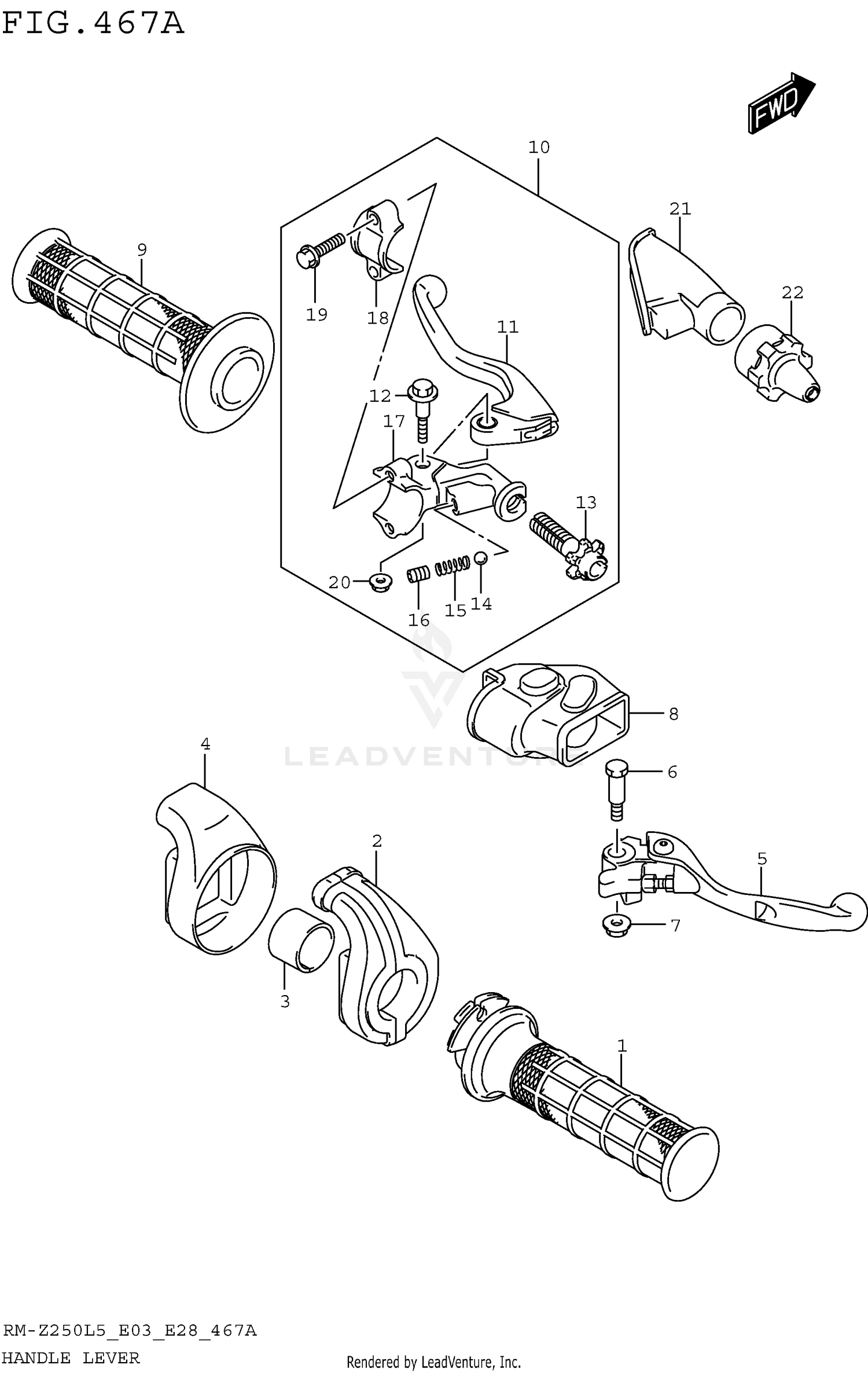

Handle Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP,THROTTLE
57110-10H10
Superseded by 57110-10H11
|
$60.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE ASSY,THROTTLE
57100-10H00
Superseded by 57100-10H01
|
$119.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, THROTTLE CASE
57151-35G00
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THROTTLE CASE
57129-35G00
|
$16.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER ASSY,BRAKE
57310-37F00
|
$43.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,BRAKE LEVER
57431-14500
|
$7.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COVER,BRAKE LEVER
57343-35G00
|
$20.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP LH
57211-28H00
|
$22.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER ASSY, CLUTCH
57500-28H00
|
$176.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, CLUTCH
57621-35G10
|
$26.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
57431-35G00
|
$37.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
ADJUSTER, CLUTCH CABLE
57441-37F00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BALL
06111-06003
|
$1.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SPRING
09440-04010
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW (6X8)
09134-06009
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, CLUTCH LEVER
57511-28H00
|
$45.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
.BRACKET,CLUTCH LEVER HOLDER
57512-28C00
|
$27.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
.BOLT,BRACKET
57513-29F10
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08310-00057
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER,CLUTCH LEVER
57341-28H00
Superseded by 57341-28H01
|
$11.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER,CLUTCH ADJUSTER
57342-37F00
Superseded by 57342-37F01
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
