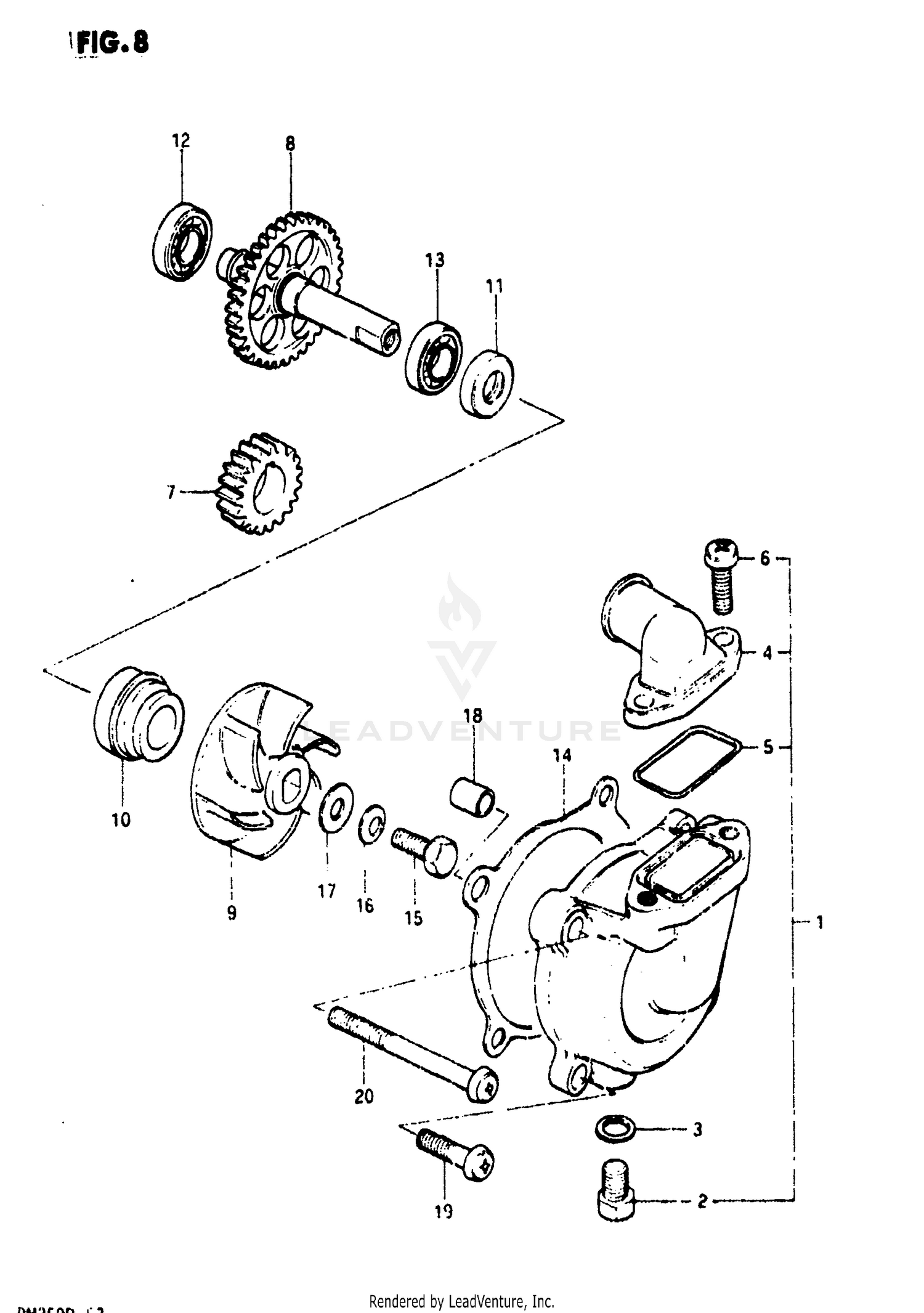

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE,WATER PUMP
17410-14300
Superseded by 17410-1431V
|
$95.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, DRAIN
17415-14300
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET (8.2X14X1)
17413-14100
Superseded by 09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CONNECTOR
17412-14300
Superseded by 17412-28E00
|
$35.89 | ||
|
Unavailable |
|||
|
#5
O RING
17414-14300
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02112-06165
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, DRIVE (NT:19)
17451-14300
|
$19.20 | ||
|
Unavailable |
|||
|
#8
SHAFT (NT:36)
17461-14300
|
$106.73 | ||
|
Unavailable |
|||
|
#9
IMPELLER
17491-14300
|
$23.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SEAL,MECHANICAL
17470-14100
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
.OIL SEAL (10X21X5)
09283-10004
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, INNER
09262-10004
|
$35.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
09262-12003
Superseded by 08113-69010
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, WATER PUMP CASE
17431-14302
Superseded by 17431-14303
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
09100-06099
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK WASHER
09164-06006
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET
09168-06016
Superseded by 09168-06025
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN
04211-09129
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-06208
Superseded by 02112-06207
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW
02112-06608
Superseded by 02112-06607
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
