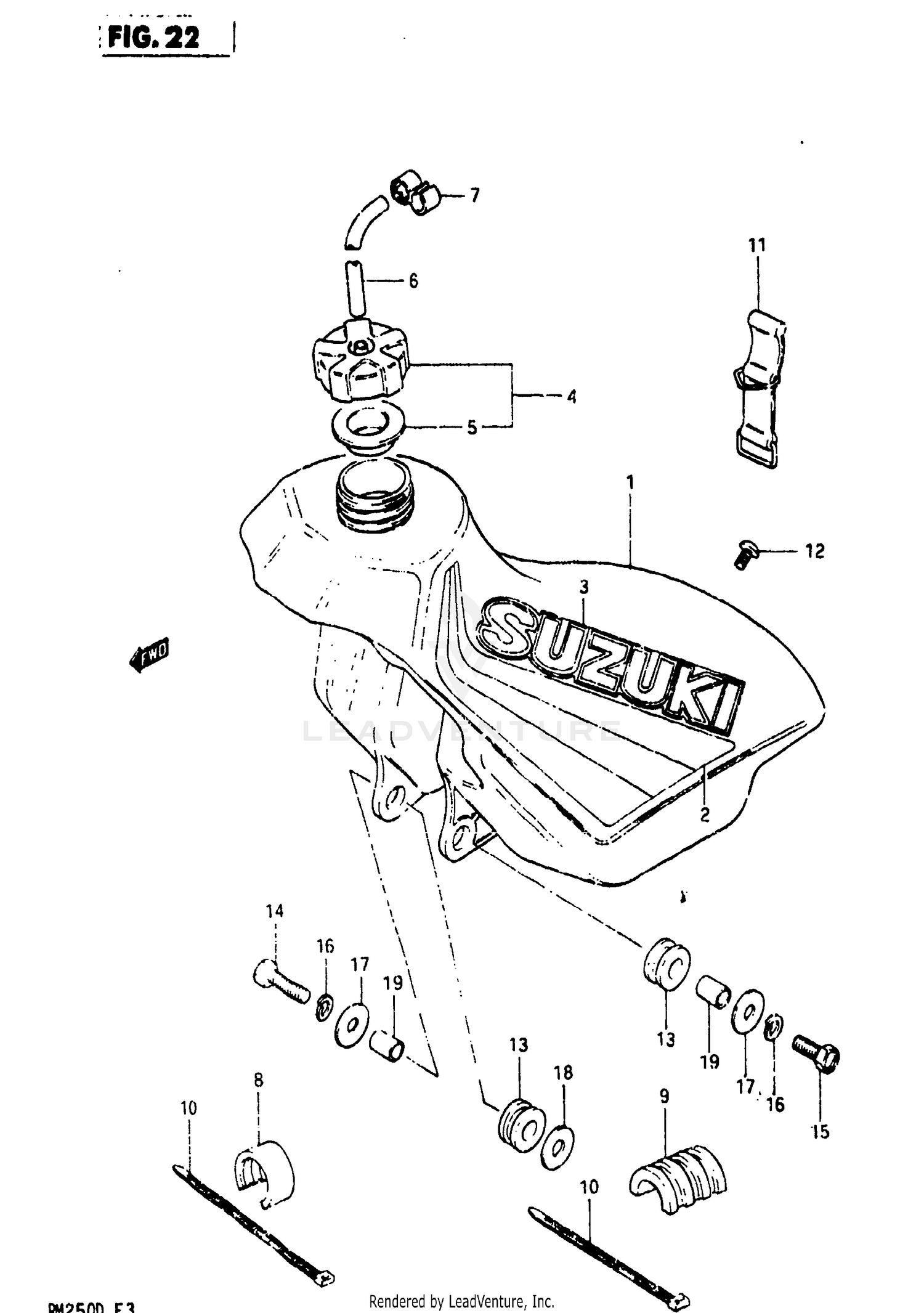

Fuel Tank (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44100-14880-163
Superseded by 44100-14881-163
|
$264.98 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-14300-67H
|
$41.16 | ||
|
Unavailable |
|||
|
#3
EMBLEM
68111-40210-64D
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP SET,FUEL TA
44200-40820
Superseded by 44200-40822
|
$19.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
44248-40400
Superseded by 44248-05211
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE,5X10X600
09343-05129
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
44486-40200
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, UPPER FRONT
44541-14300
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, UPPER REAR
44542-14300
|
$9.24 | ||
|
Unavailable |
|||
|
#10
CLAMP
09407-20401
Superseded by 09407-25402
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, REAR
44560-41300
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
09125-06009
Superseded by 09125-06073
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-12030
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01107-08458
Superseded by 01500-08453
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01107-08258
Superseded by 01500-08257
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER
09160-08035
Superseded by 09160-08130
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, RH
09160-08032
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
09180-08003
Superseded by 09180-08191
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
