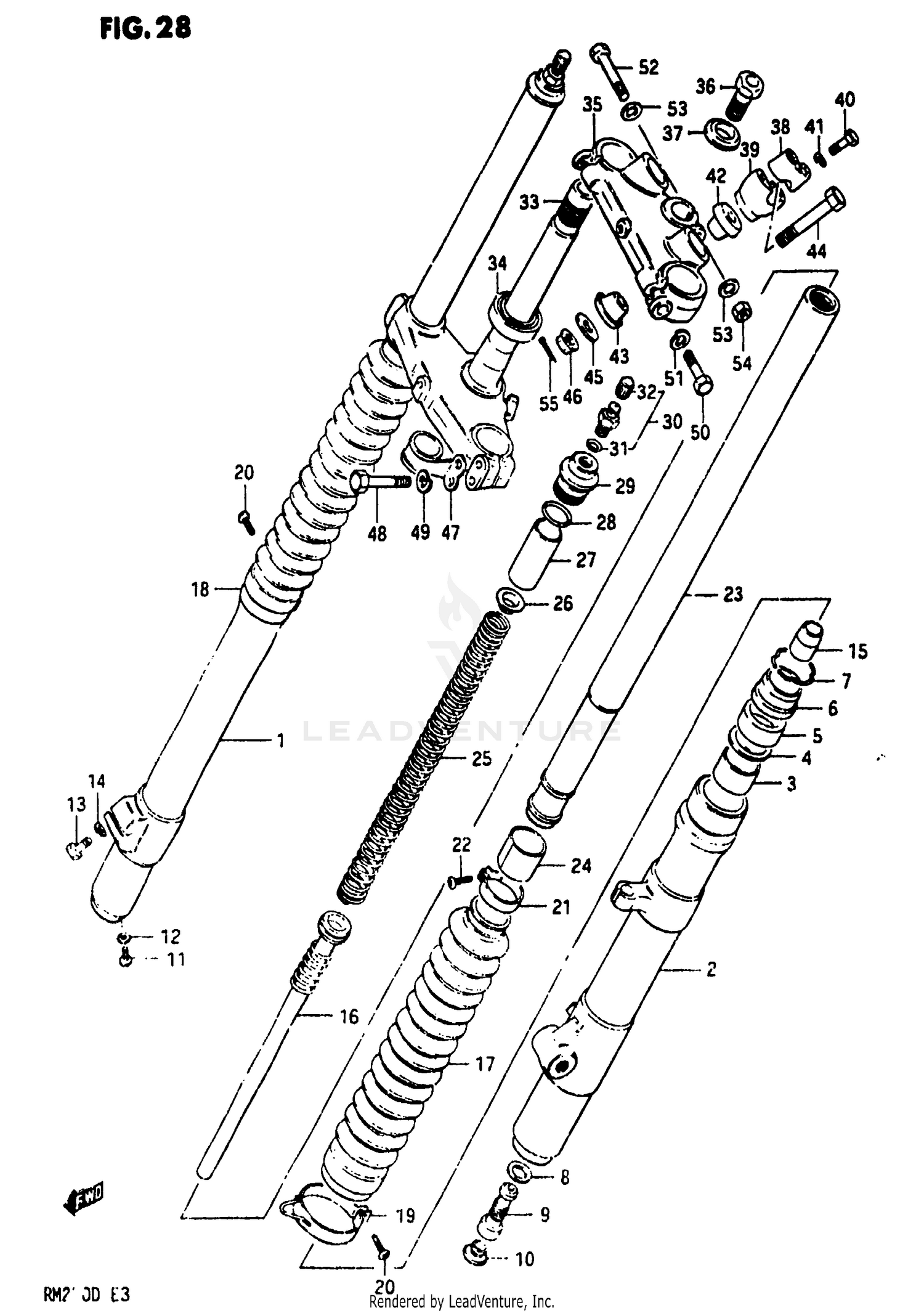

Front Fork (model D) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
FRONT FORK ASSY (YELLOW)
51100-14330-163
|
$838.63 | ||
|
Unavailable |
|||
|
#1
OUTER TUBE, RH (YELLOW)
51130-14330-163
|
$207.45 | ||
|
Unavailable |
|||
|
#2
OUTER TUBE, LH (YELLOW)
51140-14330-163
|
$228.06 | ||
|
Unavailable |
|||
|
#3
METAL, SLIDE
51167-14200
Superseded by 51167-40C00
|
$21.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
51158-14200
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
51153-14330
|
$17.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SEAL
51173-14330
|
$13.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RING, STOPPER
51156-14200
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
51148-14330
|
$1.17 | ||
|
Unavailable |
|||
|
#9
VALVE
51770-14330
|
$38.83 | ||
|
Unavailable |
|||
|
#10
CAP
51189-14330
|
$3.73 | ||
|
Unavailable |
|||
|
#11
SCREW
02112-04068
Superseded by 02112-0406B
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
51183-03010
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01107-08308
Superseded by 01500-08307
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
.WASHER
08321-31088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIECE, OIL LOCK
51195-14330
|
$11.77 | ||
|
Unavailable |
|||
|
#16
CYLINDER
51146-14330
|
$57.37 | ||
|
Unavailable |
|||
|
#17
BOOT
51571-14200
|
$38.18 | ||
|
Unavailable |
|||
|
#18
BAND
51575-14330
Superseded by 51574-14330
|
$14.21 | ||
|
Unavailable |
|||
|
#19
BAND
51574-14330
|
$14.21 | ||
|
Unavailable |
|||
|
#20
SCREW
02112-04168
Superseded by 02112-0416A
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND
51575-14200
|
$4.98 | ||
|
Unavailable |
|||
|
#22
SCREW
02112-04108
Superseded by 02112-04107
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#23
INNER TUBE
51110-14330
|
$180.69 | ||
|
Unavailable |
|||
|
#24
PISTON
51121-14200
|
$15.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING
51171-14330
|
$36.85 | ||
|
Unavailable |
|||
|
#26
GUIDE, SPRING
51172-14200
|
$3.01 | ||
|
Unavailable |
|||
|
#27
SPACER
51176-14260
|
$4.59 | ||
|
Unavailable |
|||
|
#28
.O RING
51117-14200
Superseded by 51117-14201
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP
51351-14330
|
$24.47 | ||
|
Unavailable |
|||
|
#30
VALVE, AIR
51169-14140
|
$15.96 | ||
|
Unavailable |
|||
|
#31
.O RING (D:1.9,ID:5.7)
51117-14210
Superseded by 09280-06005
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP
51294-40400
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
STEM, STEERING (BLACK)
51410-14330-291
|
$205.28 | ||
|
Unavailable |
|||
|
#34
RT 30X55X17 BEA
09265-30005
Superseded by 09265-30034
|
$72.95 | ||
|
Available to order. Add to View Price |
|||
|
#35
STEM HEAD, STEERING (BLACK)
51311-14330-291
|
$88.45 | ||
|
Unavailable |
|||
|
#36
BOLT
51351-41320
|
$8.80 | ||
|
Unavailable |
|||
|
#37
WASHER
51356-41310
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOLDER, HANDLEBAR (BLACK)
56211-27200-291
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOLDER, HANDLE LOWER (BLACK)
56221-14330-291
|
$60.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
.WASHER
08321-31088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#42
RUBBER, UPPER
56241-14200
|
$50.26 | ||
|
Available to order. Add to View Price |
|||
|
#43
RUBBER, LOWER
56242-14200
|
$47.91 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT
51321-14200
Superseded by 56321-28C00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER
51356-40400
Superseded by 09160-10035
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
09159-10027
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLIP
58621-14200
|
$5.33 | ||
|
Unavailable |
|||
|
#48
BOLT
01107-08408
Superseded by 01500-0840A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#49
.WASHER
08321-31088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#50
BOLT
01107-10458
Superseded by 01500-1045A
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#51
.WASHER
08321-31088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#52
BOLT
01107-08508
Superseded by 01500-08507
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER
08322-21088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
