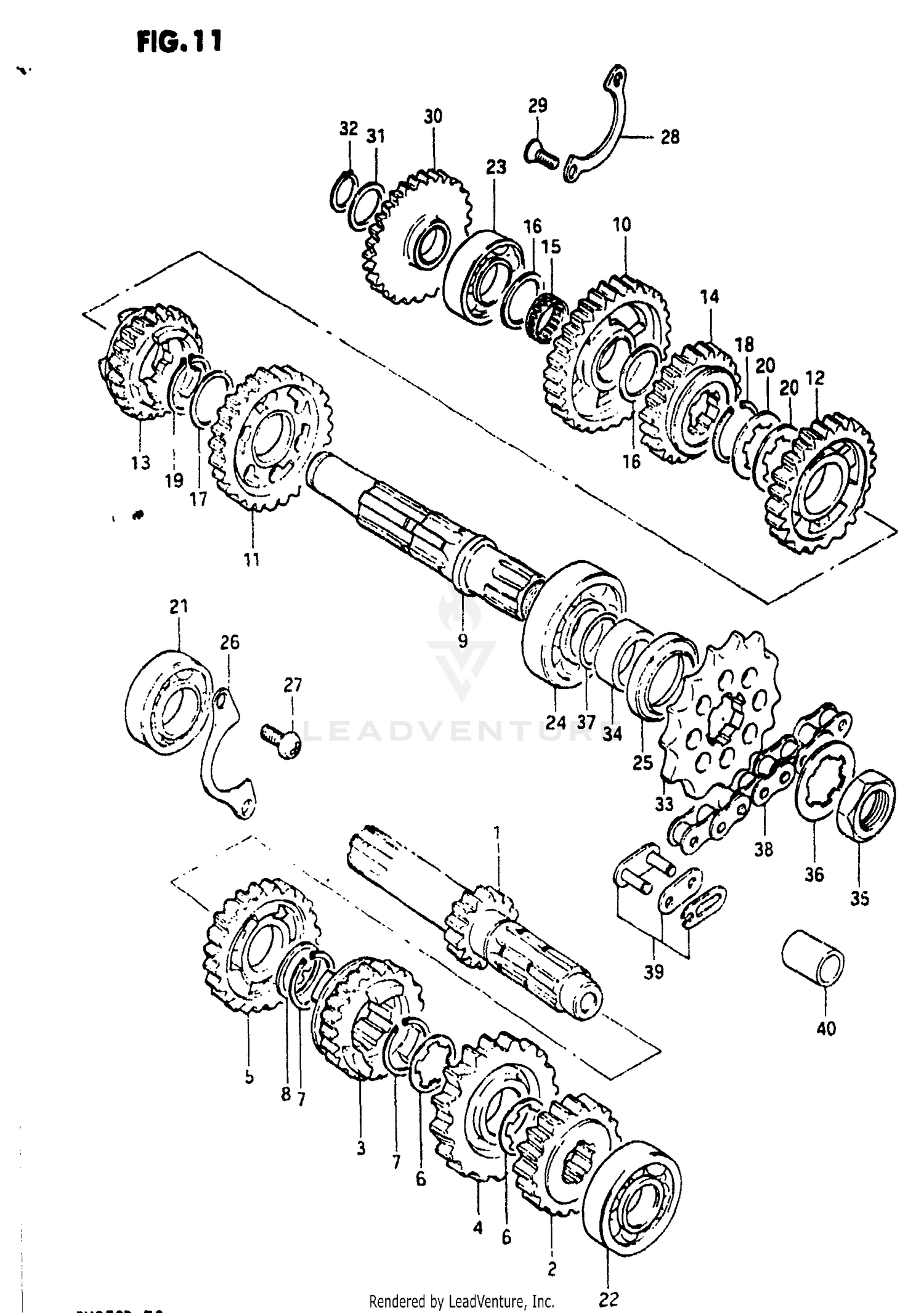

Transmission (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:13)
24121-14301
|
$106.19 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:16)
24221-14300
|
$63.59 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
24231-14300
Superseded by 24231-14301
|
$57.81 | ||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
24241-14300
Superseded by 24241-14301
|
$53.88 | ||
|
Unavailable |
|||
|
#5
GEAR, 5TH DRIVE (NT:22)
24251-14300
|
$59.90 | ||
|
Unavailable |
|||
|
#6
LOCK WASHER
09167-22011
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
09380-22006
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
THRUST WASHER
09181-22002
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#9
DRIVESHAFT
24131-14300
|
$102.89 | ||
|
Unavailable |
|||
|
#10
GEAR, 1ST DRIVEN (NT:27)
24311-14201
|
$64.56 | ||
|
Unavailable |
|||
|
#11
GEAR, 2ND DRIVEN (NT:27)
24320-14300
|
$76.96 | ||
|
Unavailable |
|||
|
#12
GEAR, 3RD DRIVEN (NT:23)
24331-14301
|
$59.70 | ||
|
Unavailable |
|||
|
#13
GEAR, 4TH DRIVEN (NT:21)
24341-14300
|
$63.96 | ||
|
Unavailable |
|||
|
#14
GEAR, 5TH DRIVEN (NT:21)
24351-14300
|
$61.83 | ||
|
Unavailable |
|||
|
#15
BEARING
09263-17004
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM (17X28X1)
08211-17281
Superseded by 09181-17195
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
THRUST WASHER
08221-25325
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
09380-22006
|
$3.78 | ||
|
Unavailable |
|||
|
#19
CIRCLIP, REAR FINAL DRIVE
08331-31258
Superseded by 08331-31256
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
09167-22013
|
$2.36 | ||
|
Unavailable |
|||
|
#21
BEARING, COUNTER SHAFT
09262-20009
Superseded by 09262-20073
|
$28.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, DRIVE SHAFT RH
09262-17008
Superseded by 09262-17023
|
$20.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, DRIVE SHAFT RH
09262-17008
Superseded by 09262-17023
|
$20.40 | ||
|
Unavailable |
|||
|
#24
BEARING (22X56X16)
09262-22014
Superseded by 09262-22028
|
$94.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
09283-32003
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, BEARING
24741-40300
|
$4.25 | ||
|
Unavailable |
|||
|
#27
SCREW
02112-06128
Superseded by 02112-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, BEARING
24751-40300
|
$3.54 | ||
|
Unavailable |
|||
|
#29
SCREW
02122-06128
Superseded by 02122-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#30
GEAR, KICK IDLE (NT:26)
26260-41101
Superseded by 26260-13A10
|
$83.63 | ||
|
Unavailable |
|||
|
#31
WASHER
08211-17241
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
09380-17001
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPROCKET, ENGINE (NT:14)
27511-14300
Superseded by 27511-47D00
|
$32.57 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, ENGINE (NT:13)
27511-14310
Superseded by 27511-37F00
|
$31.83 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, ENGINE (NT:15)
27511-14320
|
$32.92 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPACER
09180-22026
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
09140-18009
|
$4.92 | ||
|
Unavailable |
|||
|
#36
WASHER,LOCK (22.5X40.3X0.8)
09167-22012
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#37
O RING
09280-22003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#38
CHAIN,DRIVE ASS
27600-14212
Superseded by 27600-46K00-116
|
$179.72 | ||
|
Unavailable |
|||
|
#39
JOINT (DID)
27620-14252
|
$5.60 | ||
|
Unavailable |
|||
|
#39
JOINT (RK)
27620-14261
Superseded by 27620-14262
|
$6.36 | ||
|
Unavailable |
|||
|
#40
CUSHION, CHAIN
09180-12068
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
