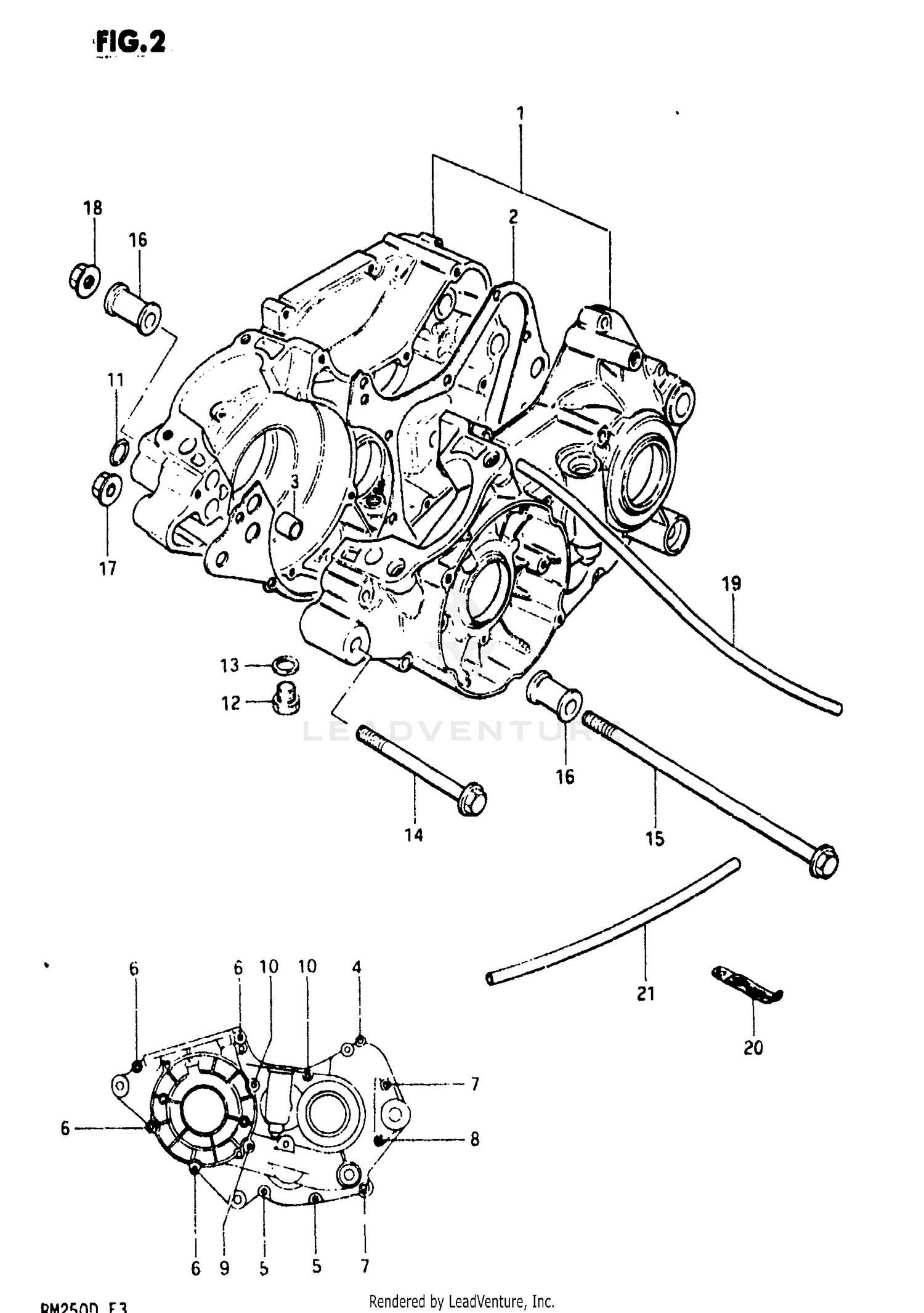

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11300-14851
|
$340.20 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11300-14890
Superseded by 11300-14892
|
$420.32 | ||
|
Unavailable |
|||
|
#2
GASKET,CRANKCAS
11481-14300
Superseded by 11481-14300-H17
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09206-13001
Superseded by 04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW
02112-06308
Superseded by 02112-06307
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-06358
Superseded by 02112-06357
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW (6X45)
02112-06458
Superseded by 02112-06457
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
6X50 CROSS SCRE
02112-06508
Superseded by 02112-06507
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW (6x55)
02112-06557
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02112-06608
Superseded by 02112-06607
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-06708
Superseded by 02112-06707
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:1.9,ID:13.8)
09280-14004
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
09168-14004
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT (8X100)
09103-08070
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,8X225
09100-08188
Superseded by 09103-08278
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER, ENGINE MOUNTING (L:28)
11611-14230
Superseded by 11610-14200
|
$12.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08319-31088
Superseded by 08319-3108A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08319-21088
Superseded by 08319-2108A
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE 4X7X600
09343-04046
Superseded by 09352-40706-600
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
09404-08402
Superseded by 09404-08420
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE 4X7X600
09343-04046
Superseded by 09352-40706-600
|
$6.32 | ||
|
Unavailable |
|||
