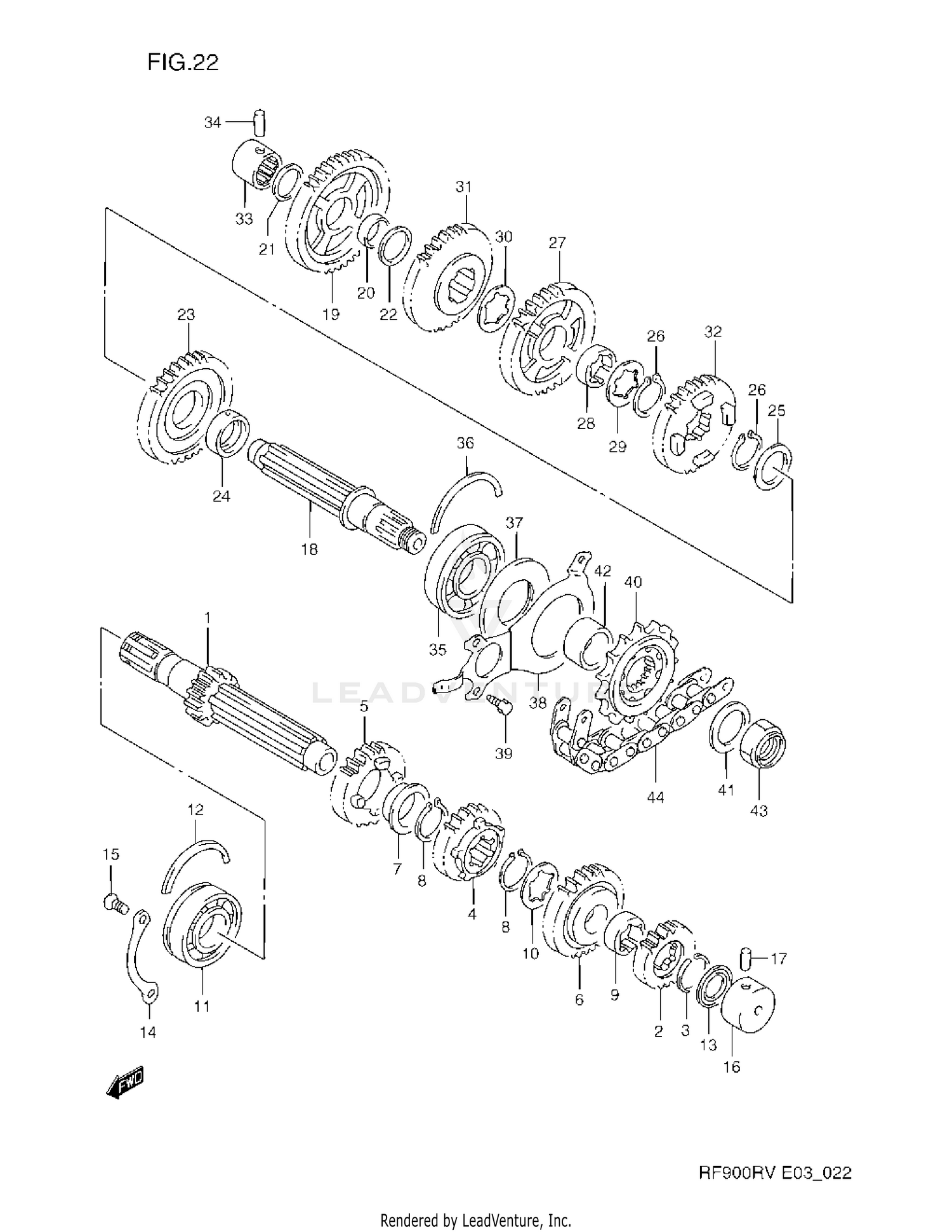

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:14)
24120-26D10
|
$221.97 | ||
|
Unavailable |
|||
|
#1
COUNTERSHAFT (NT:14)
24120-26D20
|
$163.56 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:21)
24221-26D00
|
$112.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
09380-28008
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 3RD DRIVE (NT:22)
24231-26D02
|
$151.23 | ||
|
Unavailable |
|||
|
#5
GEAR, 4TH DRIVE (NT:22)
24241-26D10
|
$163.51 | ||
|
Unavailable |
|||
|
#6
GEAR, 5TH DRIVE (NT:26)
24251-26D01
Superseded by 24251-26D02
|
$110.26 | ||
|
Unavailable |
|||
|
#7
BUSH, 4TH DRIVE GEAR
09301-28001
|
$20.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
08331-31286
Superseded by 08331-31289
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, 5TH DRIVE GEAR
24332-24A00
|
$16.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (28.1X38X1.0)
09167-28001
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, LH
09262-25051
Superseded by 09262-25105
|
$71.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, RH (25X62X17)
09262-25105
|
$71.52 | ||
|
Unavailable |
|||
|
#12
C RING
09390-62006
Superseded by 09390-62012
|
$9.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
C RING
09390-62012
|
$9.03 | ||
|
Unavailable |
|||
|
#13
OIL SEAL
09285-20006
|
$7.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
HOLDER, BEARING
24741-27A00
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BEARING (20X34X17.5)
09263-20082
Superseded by 09263-20085
|
$80.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN
04221-07129
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, DRIVE
24131-46E10
|
$212.50 | ||
|
Unavailable |
|||
|
#19
GEAR, 1ST DRIVEN (NT:38)
24311-26D10
|
$139.01 | ||
|
Unavailable |
|||
|
#20
BUSH, 1ST DRIVEN
09300-22005
Superseded by 24312-02F00
|
$30.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, RH
08211-20341
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, RH (20X34X1.0)
09181-20251
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LH
08211-22341
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LH (22X34X1.0)
09181-22223
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 2ND DRIVEN (NT:38)
24321-26D01
|
$212.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH
09300-28002
|
$19.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
.SHIM (28X38X1)
08211-28381
Superseded by 09181-28195
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (28X38X1.0)
09181-28195
|
$5.01 | ||
|
Unavailable |
|||
|
#26
CIRCLIP
08331-31286
Superseded by 08331-31289
|
$2.58 | ||
|
Unavailable |
|||
|
#27
GEAR, 3RD DRIVEN (NT:31)
24331-26D10
|
$318.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSH, 3RD DRIVEN GEAR
24332-48B00
Superseded by 24332-48B01
|
$35.42 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, LH (T:1)
09167-28001
|
$4.83 | ||
|
Unavailable |
|||
|
#30
WASHER, RH (T:2)
09167-28008
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, 4TH DRIVEN (NT:26)
24341-26D10
Superseded by 24341-26D11
|
$210.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, 4TH DRIVEN (NT:26)
24341-26D11
|
$210.88 | ||
|
Unavailable |
|||
|
#32
GEAR, 5TH DRIVEN (NT:27)
24351-26D20
Superseded by 24351-26D21
|
$154.91 | ||
|
Unavailable |
|||
|
#32
GEAR, 5TH DRIVEN
24351-26D21
|
$154.91 | ||
|
Unavailable |
|||
|
#33
BEARING (20X34X20)
09263-20040
|
$57.96 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN (L:20)
04221-07209
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, LH (28X70X18)
09262-28025
|
$158.16 | ||
|
Available to order. Add to View Price |
|||
|
#36
C RING (67.6X75X2)
09390-70001
|
$10.26 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL (36X70X6)
09283-36008
|
$25.92 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE, OIL SEAL
24751-17E00
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
01500-06123
Superseded by 01500-0612A
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPROCKET, ENGINE (NT:15)
27510-48B00
|
$105.86 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER (25X40X1.5)
08211-25402
Superseded by 09181-25268
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER (25X40X1.5)
09181-25268
|
$3.91 | ||
|
Unavailable |
|||
|
#42
SPACER (25X36X17.7)
09180-25098
|
$19.91 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT
09159-20004
|
$19.09 | ||
|
Available to order. Add to View Price |
|||
|
#44
CHAIN, DRIVE (RK532GSV2X116LE
27600-40C20-110
Superseded by 27600-46E20-116
|
$276.38 | ||
|
Available to order. Add to View Price |
|||
