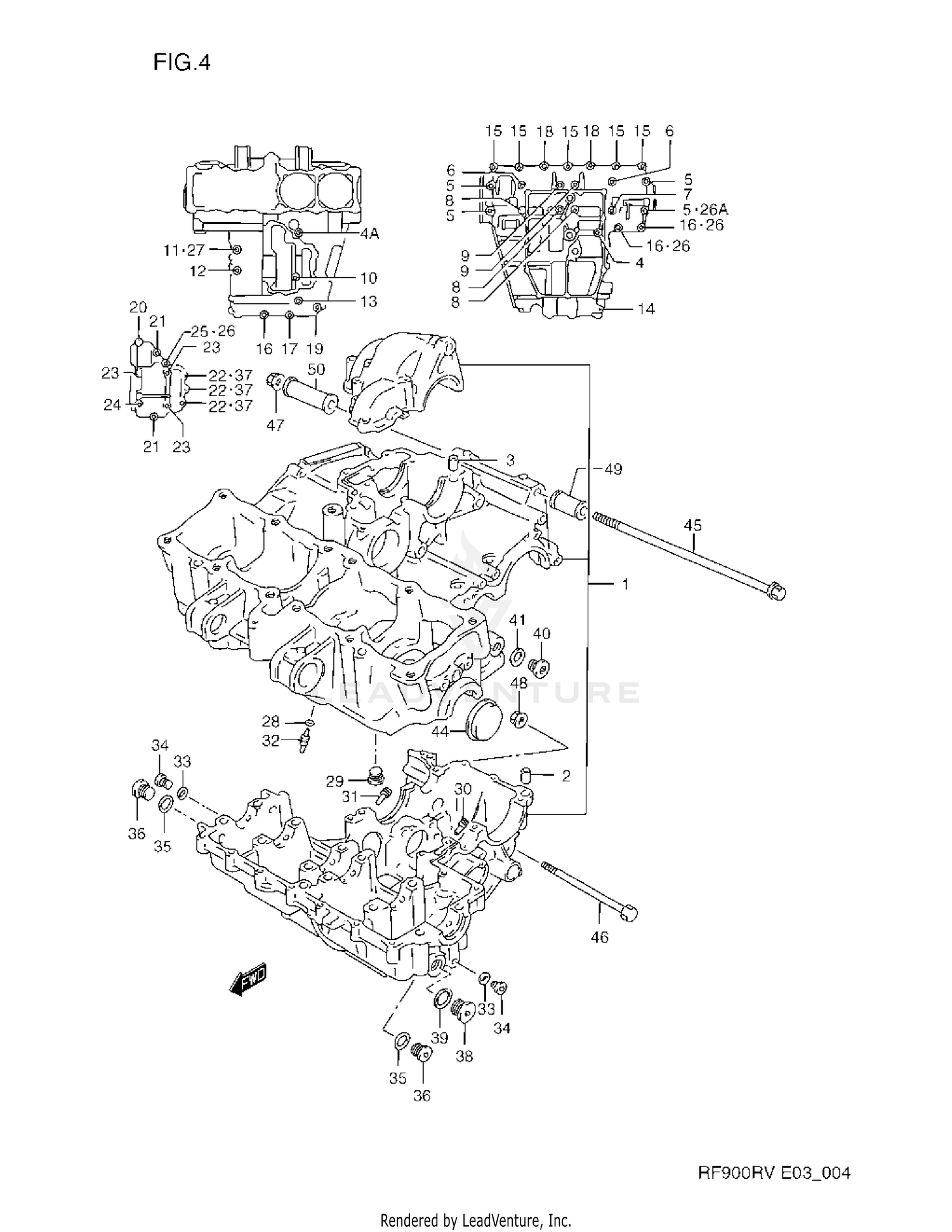

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14
BOLT
01550-08603
Superseded by 01550-0860A
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-06353
Superseded by 01550-0635A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01550-06403
Superseded by 01550-0640A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01550-06403
Superseded by 01550-0640A
|
$2.95 | ||
|
Unavailable |
|||
|
#18
BOLT
01550-06503
Superseded by 01550-0650A
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-06653
Superseded by 01550-0665A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
07130-06253
Superseded by 07130-0625B
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
07130-06353
Superseded by 07130-0635B
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, STATOR
07130-06403
Superseded by 07130-0640B
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
07130-06503
Superseded by 07130-0650B
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
07130-06603
Superseded by 07130-0660B
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (6X145)
09103-06062
|
$3.41 | ||
|
Unavailable |
|||
|
#26
.GASKET (6.2X13X1.2)
09168-06018
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26A
GASKET (10.2X20X2.3)
09168-10031
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET (8.2X14X1)
09168-08016
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG (18X8)
09248-18002
Superseded by 09248-18011
|
$7.72 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET, OIL GALLERY MISSION L
09493-24010
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET,140 (#140)
09493-28012
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#32
JET, OIL GALLERY PISTON
09493-80008
|
$14.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
09168-10002
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
GASKET
09168-10007
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG, OIL GALLERY
09248-10007
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG, OIL GALLERY
11315-17E00
|
$4.39 | ||
|
Unavailable |
|||
|
#35
GASKET
09168-16002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PLUG, OIL DRAIN
09248-16010
Superseded by 09248-16012
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
09168-06024
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLUG, LH
09248-22002
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET
09168-22002
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLUG, OIL GALLERY
09248-14010
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#41
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#42
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.08 | ||
|
Unavailable |
|||
|
#43
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#43
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$12.54 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLUG, CRANKCASE LH
09241-37002
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT (10X280)
09103-10274
|
$9.83 | ||
|
Unavailable |
|||
|
#46
BOLT (12X140)
09103-12045
|
$7.68 | ||
|
Unavailable |
|||
|
#47
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
NUT
08319-31128
Superseded by 08319-3112A
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPACER, LH (L:45)
11611-21E00
|
$19.59 | ||
|
Unavailable |
|||
|
#50
SPACER, RH (L:65)
11611-14210
|
$34.68 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11302-46870
Superseded by 11302-46876
|
$1,711.22 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11302-46874
Superseded by 11302-46876
|
$1,711.22 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11302-46875
Superseded by 11302-46876
|
$1,711.22 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11302-46876
|
$1,711.22 | ||
|
Unavailable |
|||
|
#2
PIN
09206-13004
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
04211-09129
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X105)
09103-06163
|
$2.09 | ||
|
Unavailable |
|||
|
#4A
BOLT (6X105)
09103-06067
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
NO DESCRIPTION AVAILABLE
09103-09007
Superseded by 09103-09007-XC0
|
$5.53 | ||
|
Unavailable |
|||
|
#6
BOLT (9X95)
09103-09008
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (9X105)
09103-09009
|
$6.44 | ||
|
Unavailable |
|||
|
#8
BOLT (9X115)
09103-09010
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (9X60)
09106-09001
|
$4.98 | ||
|
Unavailable |
|||
|
#10
BOLT
07130-06753
Superseded by 07130-0675B
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07130-08503
Superseded by 07130-0850A
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07130-08603
Superseded by 07130-0860B
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07130-08803
Superseded by 07130-0880B
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
