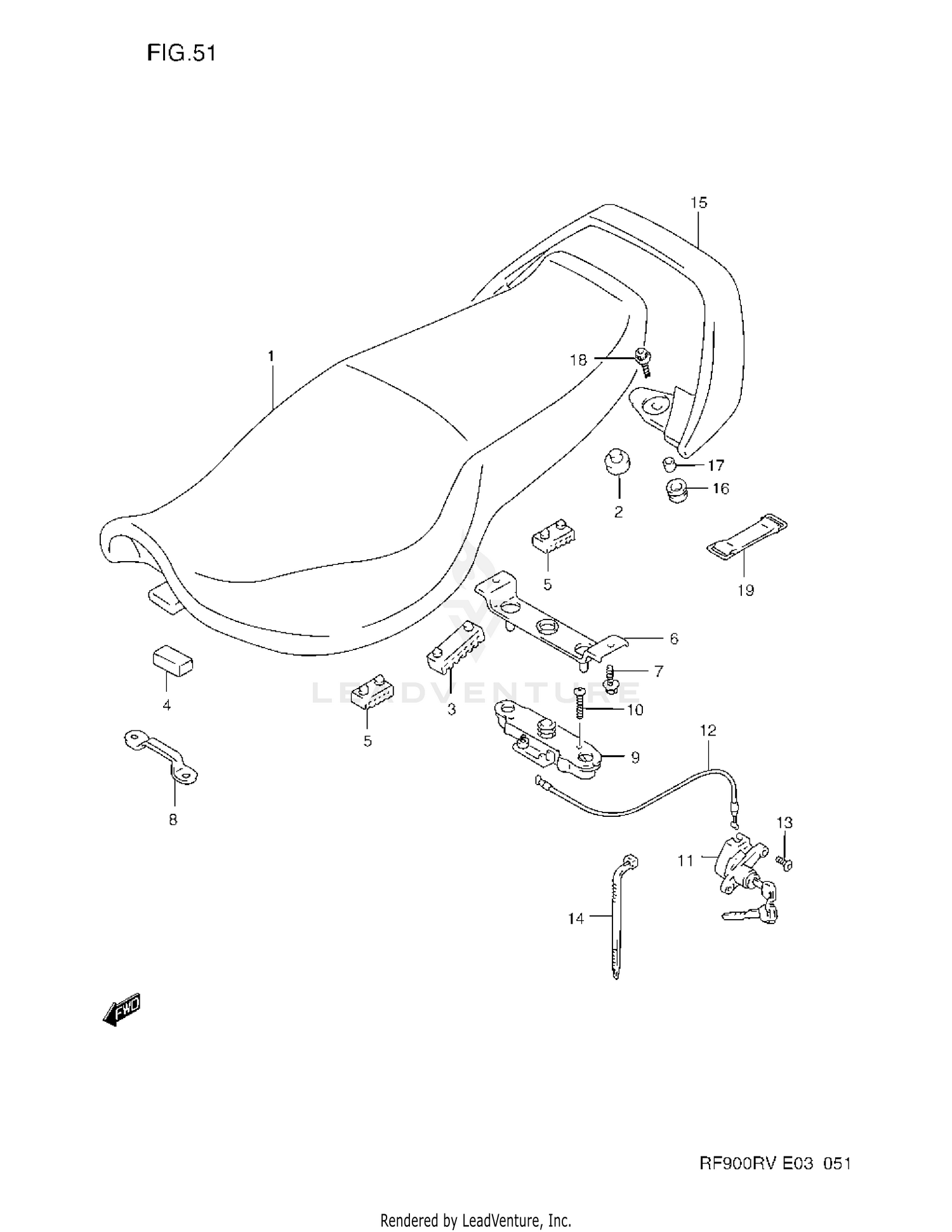

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY (BLACK)
45100-31E00-6VP
|
$416.66 | ||
|
Unavailable |
|||
|
#2
CUSHION, REAR
09321-10011
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION, CENTER
45148-31E00
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, CENTER
45149-31E00
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
45149-31300
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRIKER, SEAT LOCK
45210-22D01
|
$33.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, SEAT FRONT HOOK
45119-17E00
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, SEAT SUPPORT REAR
45220-13601
|
$86.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, SEAT SUPPORT BRK
02112-06303
Superseded by 02112-0630A
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET,SEAT
95700-12851
Superseded by 95700-12853
|
$146.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET,SEAT
95700-12852
Superseded by 95700-12853
|
$146.62 | ||
|
Unavailable |
|||
|
#12
CABLE, SEAT LOCK
45280-12D00
|
$17.85 | ||
|
Unavailable |
|||
|
#13
SCREW (6X12)
09139-06075
|
$1.54 | ||
|
Unavailable |
|||
|
#13
SCREW (6X14)
09139-06092
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09407-18403
Superseded by 09407-18402
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
HANDLE, PILLION (BLACK)
46211-31E00-019
Superseded by 46211-31E00-33J
|
$276.52 | ||
|
Unavailable |
|||
|
#15
HANDLE, PILLION (RED)
46211-31E00-19A
|
$211.87 | ||
|
Unavailable |
|||
|
#15
HANDLE, PILLION (GREEN)
46211-31E00-1UH
|
$192.60 | ||
|
Unavailable |
|||
|
#15
HANDLE, PILLION (SILVER)
46211-31E00-0FP
|
$194.72 | ||
|
Unavailable |
|||
|
#15
HANDLE, PILLION (GRAY)
46211-31E00-17U
|
$194.72 | ||
|
Unavailable |
|||
|
#15
HANDLE, PILLION (BLACK)
46211-31E00-33J
|
$276.52 | ||
|
Unavailable |
|||
|
#15
HANDLE, PILLION (BLACK)
46211-31E00-019
Superseded by 46211-31E00-33J
|
$276.52 | ||
|
Unavailable |
|||
|
#16
CUSHION
09320-20008
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
09160-08135
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, STEERING DAMPER
07130-08303
Superseded by 07130-0830A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, TOOL
09462-00008
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
