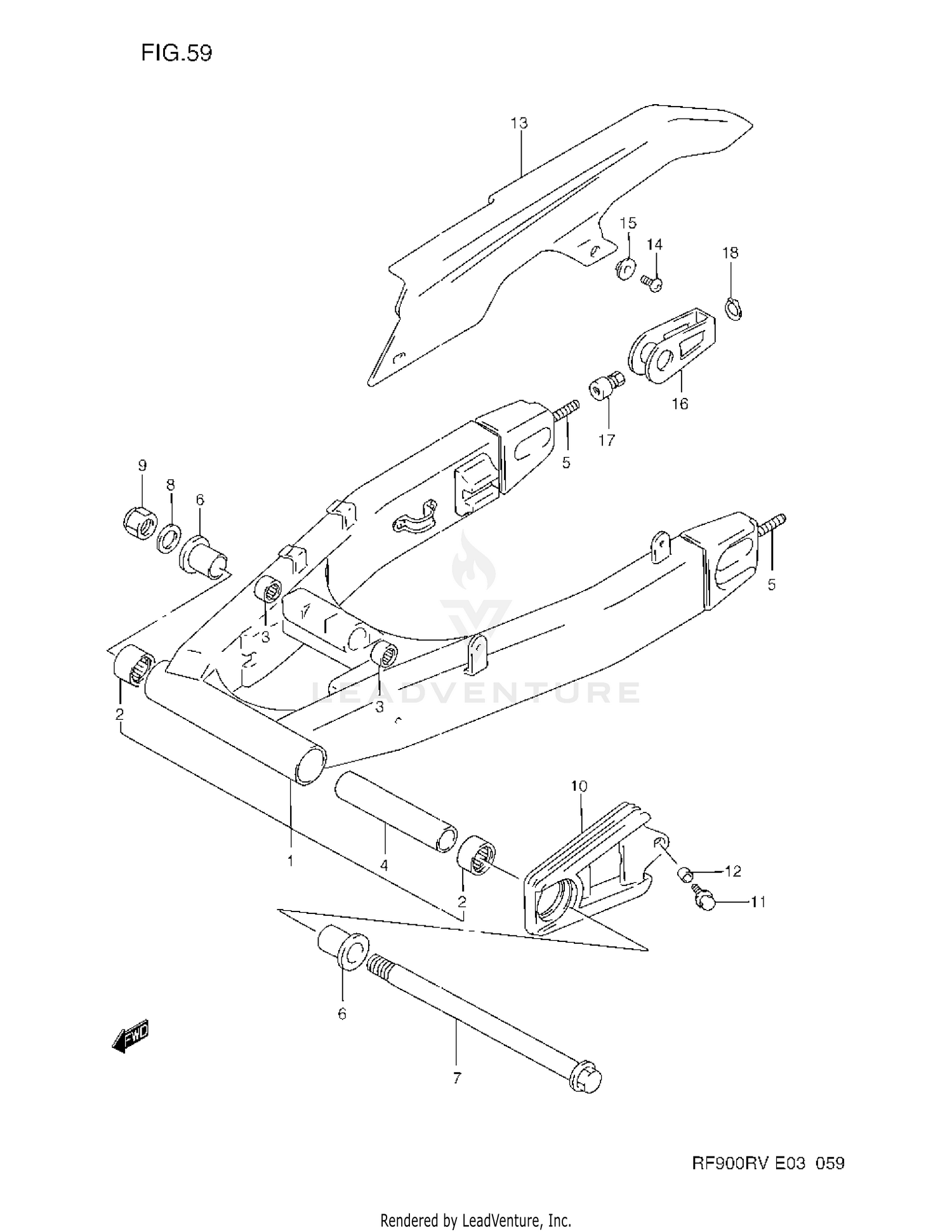

Rear Swinging Arm (model R/s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR
61000-31E01
|
$1,519.56 | ||
|
Unavailable |
|||
|
#2
BEARING (25X33X35)
09263-25059
Superseded by 09263-25073
|
$37.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (17X24X25)
09263-17037
Superseded by 09263-17053
|
$26.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER
61282-31E00
|
$31.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,STUD
61431-40C00
Superseded by 09108-08261
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER,RR SWGARM PIVOT,BRG
61251-31E00
|
$64.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT,REAR SWINGINGARM PIVOT
61211-31E00
|
$139.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-18026
Superseded by 09160-18030
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-18007
|
$20.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUFFER,CHAIN TO
61273-17E02
Superseded by 61273-17E03
|
$35.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
09116-06111
Superseded by 09116-06152
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.5X10X7)
09180-06002
Superseded by 09180-06283
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, CHAIN
61310-45D11
Superseded by 61310-45D12
|
$120.41 | ||
|
Unavailable |
|||
|
#14
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09169-06026
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
ADJUSTER, CHAIN
61411-40C00
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CHAIN ADJUSTER
61415-40C00
Superseded by 61415-22D00
|
$27.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CHAIN ADJUSTER
61415-22D00
|
$27.65 | ||
|
Unavailable |
|||
|
#18
CIRCLIP
08331-31136
Superseded by 08331-3113A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
REFER TO FIG.59A(J-3) FOR
SPECIAL NOTE
|
|||
|
Unavailable |
|||
