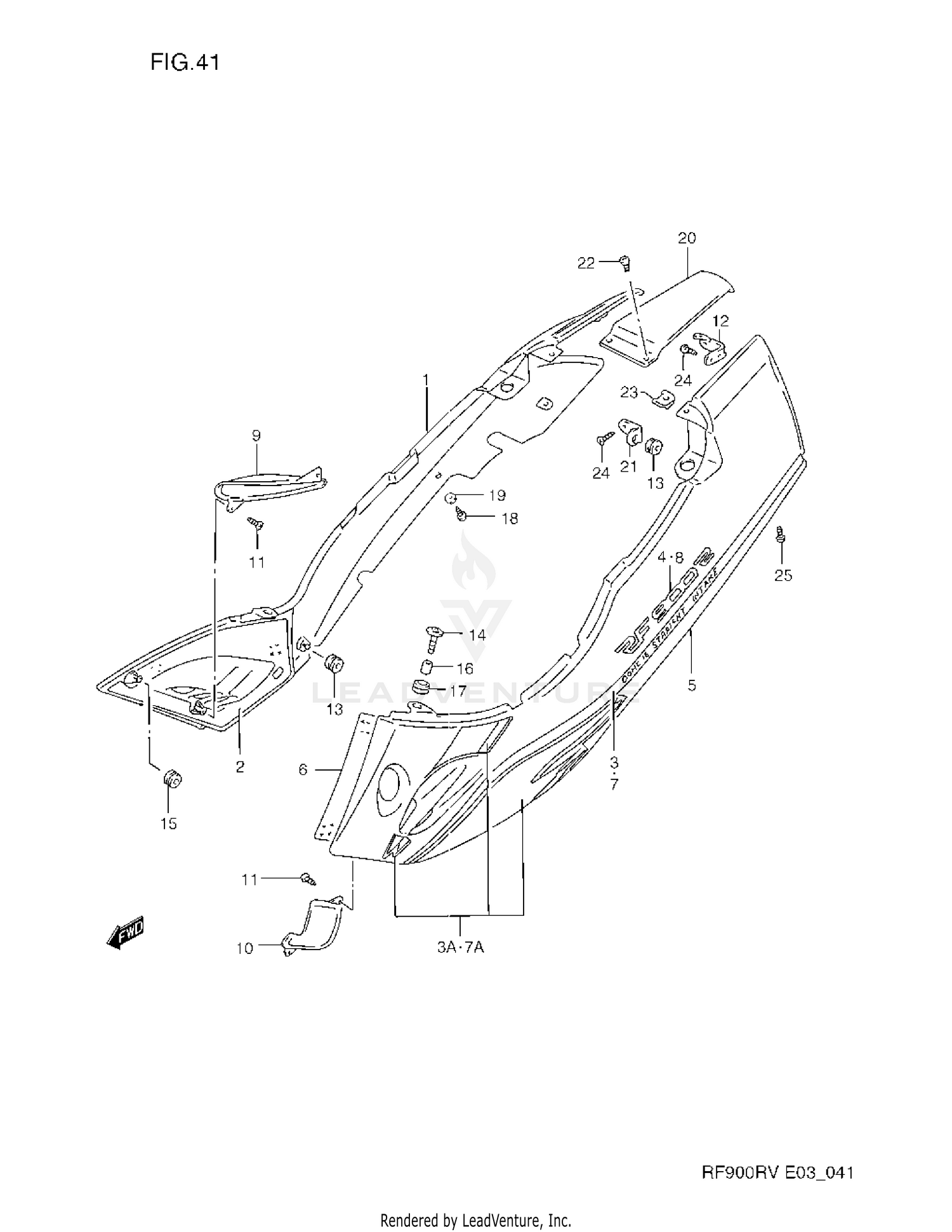

Frame Cover (model R/s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (RED)
47100-31E00-19A
|
$509.74 | ||
|
Unavailable |
|||
|
#1
COVER, FRAME RH (BLACK)
47100-31E00-33J
|
$546.25 | ||
|
Unavailable |
|||
|
#1
COVER, FRAME RH (GREEN)
47100-31E00-1UH
|
$327.53 | ||
|
Unavailable |
|||
|
#1
COVER, FRAME RH (SILVER)
47100-31E10-0FP
|
$327.53 | ||
|
Unavailable |
|||
|
#2
SHIELD, HEAT RH
47117-31E00
|
$34.19 | ||
|
Unavailable |
|||
|
#3
TAPE SET, RH
68130-31E00-B7G
|
$119.09 | ||
|
Unavailable |
|||
|
#3
TAPE SET, RH
68130-31E00-B7H
|
$94.96 | ||
|
Unavailable |
|||
|
#3
TAPE SET, RH
68130-31E00-D3S
|
$104.89 | ||
|
Unavailable |
|||
|
#3A
TAPE SET, NO.2 RH
68130-31E10-D8M
|
$43.18 | ||
|
Unavailable |
|||
|
#3
TAPE SET, RH
68130-31E00-D9E
|
$151.79 | ||
|
Unavailable |
|||
|
#4
EMBLEM
68131-31E00-AF7
|
$48.78 | ||
|
Unavailable |
|||
|
#4
EMBLEM
68131-31E00-B8U
|
$37.87 | ||
|
Unavailable |
|||
|
#4
EMBLEM
68131-31E00-D3T
|
$55.60 | ||
|
Unavailable |
|||
|
#4
EMBLEM
68131-31E00-D8P
|
$37.87 | ||
|
Unavailable |
|||
|
#5
COVER, FRAME LH (RED)
47200-31E00-19A
|
$492.94 | ||
|
Unavailable |
|||
|
#5
COVER, FRAME LH (BLACK)
47200-31E00-33J
|
$509.74 | ||
|
Unavailable |
|||
|
#5
COVER, FRAME LH (GREEN)
47200-31E00-1UH
|
$327.53 | ||
|
Unavailable |
|||
|
#5
COVER, FRAME LH (SILVER)
47200-31E10-0FP
|
$369.63 | ||
|
Unavailable |
|||
|
#6
SHIELD, HEAT LH
47217-31E00
|
$30.03 | ||
|
Unavailable |
|||
|
#7
TAPE SET, LH
68140-31E00-B7G
|
$119.09 | ||
|
Unavailable |
|||
|
#7
TAPE SET, LH
68140-31E00-B7H
|
$94.96 | ||
|
Unavailable |
|||
|
#7
TAPE SET, LH
68140-31E00-D3S
|
$104.89 | ||
|
Unavailable |
|||
|
#7
TAPE SET, LH
68140-31E00-D9E
|
$94.96 | ||
|
Unavailable |
|||
|
#7A
TAPE SET, NO.2 LH
68140-31E10-D8M
|
$43.18 | ||
|
Unavailable |
|||
|
#8
EMBLEM
68131-31E00-AF7
|
$48.78 | ||
|
Unavailable |
|||
|
#8
EMBLEM
68131-31E00-B8U
|
$37.87 | ||
|
Unavailable |
|||
|
#8
EMBLEM
68131-31E00-D3T
|
$55.60 | ||
|
Unavailable |
|||
|
#8
EMBLEM
68131-31E00-D8P
|
$37.87 | ||
|
Unavailable |
|||
|
#9
COVER, INNER RH
47511-31E00
|
$15.15 | ||
|
Unavailable |
|||
|
#10
COVER, INNER LH
47611-31E00
|
$15.15 | ||
|
Unavailable |
|||
|
#11
SCREW
03541-14123
Superseded by 03541-1412A
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, FRAME COVER RH
47191-21E00
|
$6.01 | ||
|
Unavailable |
|||
|
#12
BRACKET, FRAME COVER LH
47192-21E00
|
$6.01 | ||
|
Unavailable |
|||
|
#13
CUSHION
09320-08018
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X16)
09136-06102
Superseded by 09136-06121
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FRONT
09116-06131
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION,FRAME C
47161-21E00
Superseded by 47161-21E01
|
$10.99 | ||
|
Unavailable |
|||
|
#16
SPACER
09180-06225
Superseded by 09180-06265
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
09320-08061
Superseded by 09320-08525
|
$4.14 | ||
|
Unavailable |
|||
|
#18
.SCREW
02142-05123
Superseded by 02142-0512A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
09161-05017
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COVER, FRAME CENTER (RED)
47311-31E00-19A
|
$70.98 | ||
|
Unavailable |
|||
|
#20
COVER, FRAME CENTER (BLACK)
47311-31E00-33J
|
$69.37 | ||
|
Unavailable |
|||
|
#20
COVER, FRAME CENTER (GREEN)
47311-31E00-1UH
|
$50.17 | ||
|
Unavailable |
|||
|
#20
COVER, FRAME CENTER (SILVER)
47311-31E00-0FP
|
$51.41 | ||
|
Unavailable |
|||
|
#21
BRACKET, REAR
47193-21E00
|
$6.78 | ||
|
Unavailable |
|||
|
#22
.SCREW
02142-05123
Superseded by 02142-0512A
|
$1.65 | ||
|
Unavailable |
|||
|
#23
NUT
09148-05021
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
03541-14123
Superseded by 03541-1412A
|
$2.60 | ||
|
Unavailable |
|||
|
#25
SCREW
03241-15163
Superseded by 03241-1516A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
REFER TO FIG.41A(G-4) FOR
SPECIAL NOTE
|
|||
|
Unavailable |
|||
