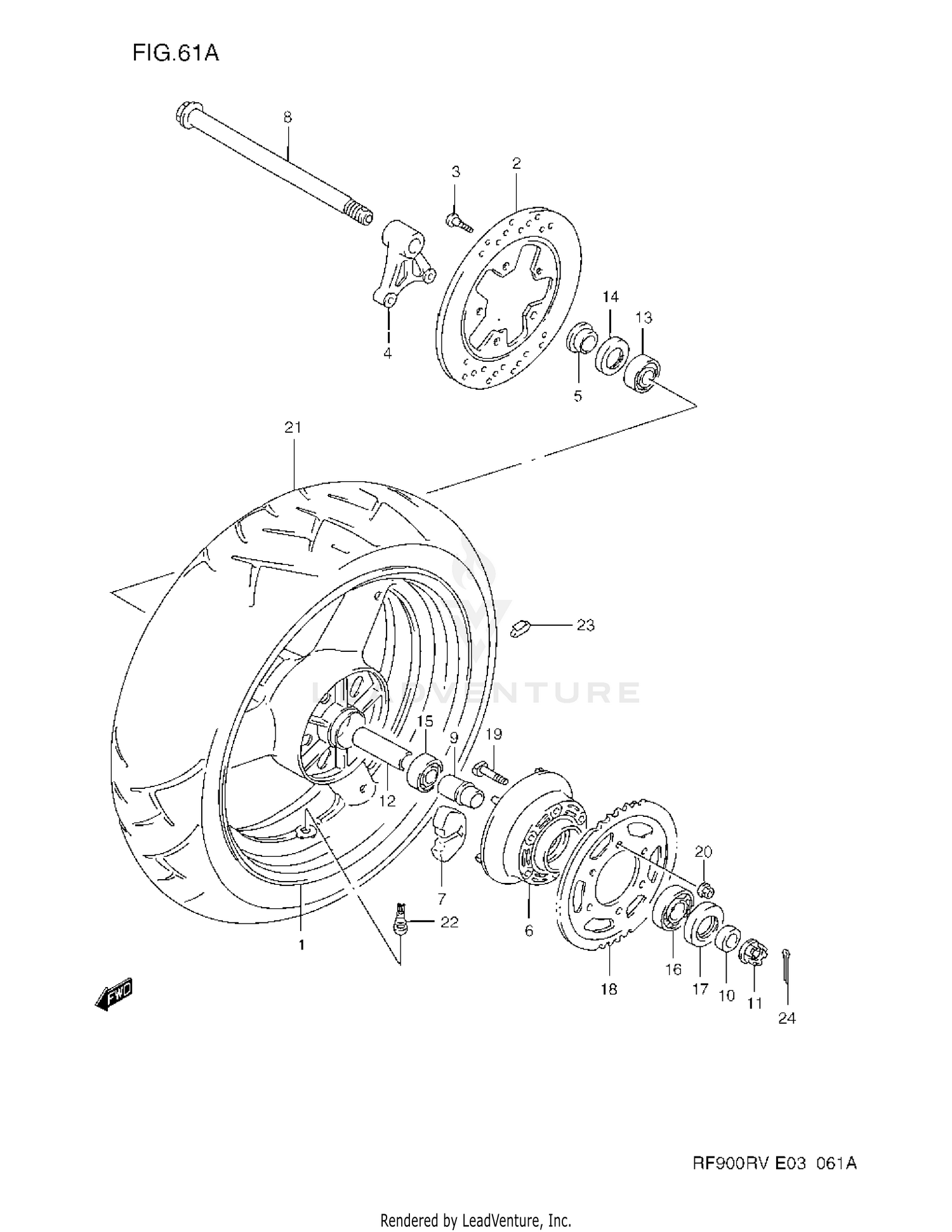

Rear Wheel (model T/v) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL,RR,17M/CX
64111-17E11-12R
Superseded by 64111-17E12-12R
|
$916.75 | ||
|
Unavailable |
|||
|
#2
DISC, REAR BRAKE
69211-21E00
|
$415.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X33)
09106-08125
Superseded by 09106-08148
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, REAR CALIPERS
69721-46E00
|
$126.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, RH
64741-17E00
|
$27.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, SPROCKET
64611-17E00
|
$177.27 | ||
|
Unavailable |
|||
|
#7
SHOCK ABSORBER, DRUM
64651-17E00
|
$16.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
AXLE, REAR
64711-17E10
|
$150.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, DRUM
64733-48B00
|
$29.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, LH
64751-46E00
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
09141-20004
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER, BEARING
64731-40C00
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RH (20X47X14)
09262-20114
|
$34.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL,OIL (27X47X7)
09285-28001
Superseded by 09285-28004
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, LH (20X47X14)
09262-20042
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, DRUM (25X62X17)
09262-25114
|
$57.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (35X62X8)
09285-35001
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, REAR (NT:43)
64511-31E00
|
$103.49 | ||
|
Unavailable |
|||
|
#19
BOLT
09119-10037
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08319-31107
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE, REAR 170/60 ZR17 (72W)
65110-31E00
|
$233.24 | ||
|
Unavailable |
|||
|
#22
VALVE ASSY, WHEEL RIM (TR412)
43130-24A11
Superseded by 43130-24A00
|
$10.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BALANCER (10G)
55411-00A00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALANCER, WHEEL NO.2
55412-00A01
Superseded by 55412-17G00
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER
04111-40408
Superseded by 04111-4040A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
