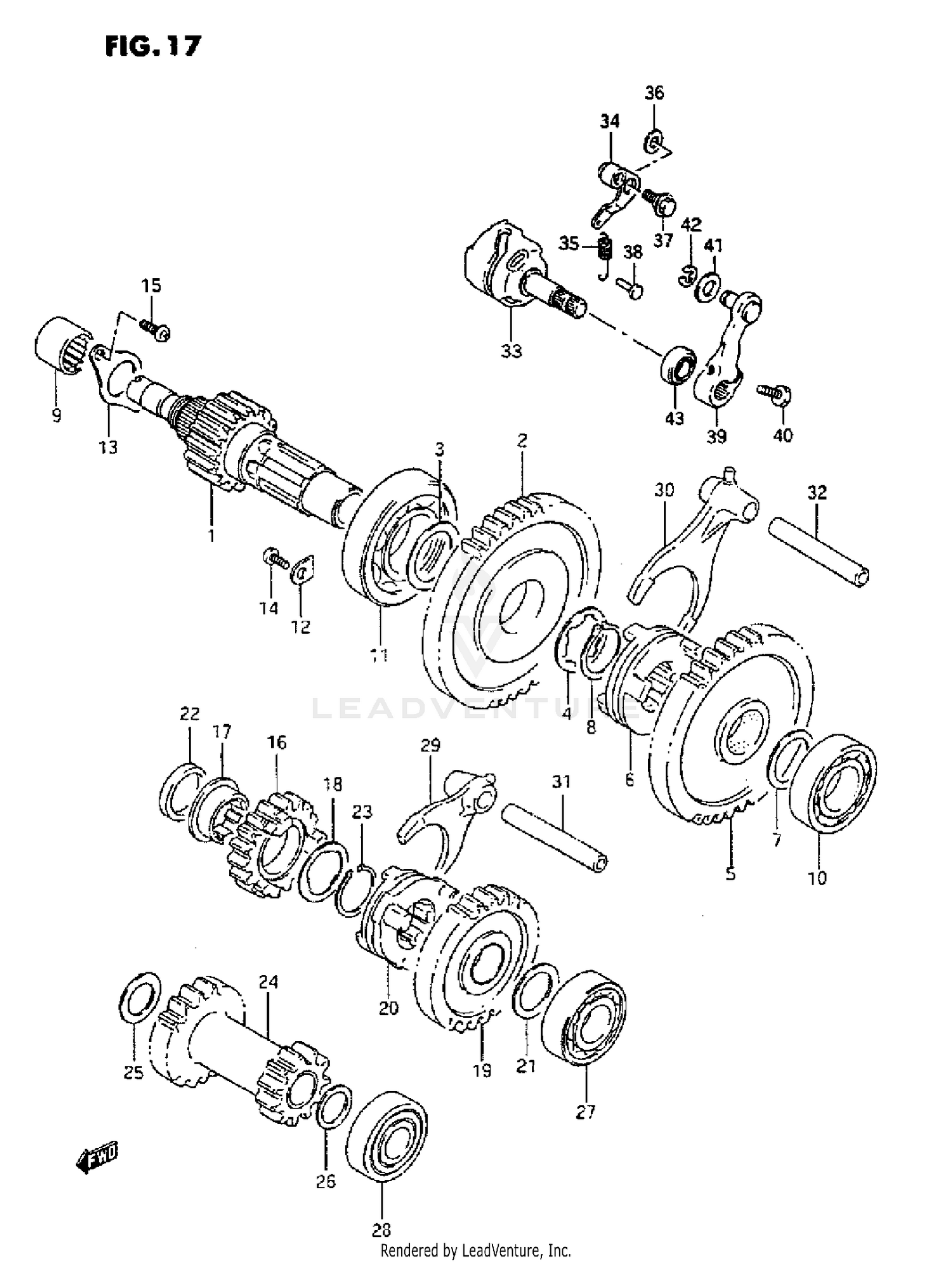

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, SUB TRANSMISSION
29121-19B01
Superseded by 29121-19B10
|
$289.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, DRIVEN NO.1 (NT:43)
29311-19B01
|
$141.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, RH
08211-32441
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LH
09167-32002
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, DRIVEN NO.2 (NT:37)
29320-19B00
|
$206.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
DOG, DRIVEN GEAR
29331-19B00
|
$83.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
08211-25351
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
08331-31326
Superseded by 08331-3132A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RH
09263-18023
|
$32.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, LH
09262-25003
|
$31.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, MIDDLE
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
RETAINER
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
RETAINER
24751-19B00
|
$2.87 | ||
|
Unavailable |
|||
|
#14
SCREW
02112-06123
Superseded by 02112-0612A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, DRIVE NO.1 (NT:18)
29211-19B00
Superseded by 29211-19B01
|
$97.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH
29215-19B00
Superseded by 29215-19B01
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK WASHER
09167-25016
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, DRIVE NO.2 (NT:25)
29220-19B00
|
$122.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
DOG, DRIVE GEAR
29231-19B00
|
$56.27 | ||
|
Unavailable |
|||
|
#21
WASHER
08211-20301
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER (25X34X5.5)
09180-25083
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING,SNAP
09380-25003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, IDLE (NT:17/11)
29150-19B10
|
$200.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (17X24X4.5)
09180-17076
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SUB T/M IDLE, LH
08211-15261
Superseded by 09181-15195
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, DRIVE SHAFT LH
09262-20069
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
09262-15022
Superseded by 09262-15062
|
$19.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
FORK, NO.1
29511-19B00
|
$81.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
FORK, NO.2
29521-19B00
|
$82.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHAFT, NO.1
25421-35403
Superseded by 25421-35410
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHAFT, GEAR SHIFT FORK
25421-04702
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAN, SUB TRANSMISSION GEAR
29610-19810
|
|||
|
Unavailable |
|||
|
#34
STOPPER
29630-19B00
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING
09443-09042
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
08211-06141
|
$2.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT
09111-06054
|
$4.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
PIN
09223-04001
|
$1.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
ARM
25360-19B70
|
$74.95 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, GEAR SHIFT LINK
01500-06203
Superseded by 01500-0620A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER
08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
SEAL,OIL (12X22X9)
09285-12006
|
$7.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
