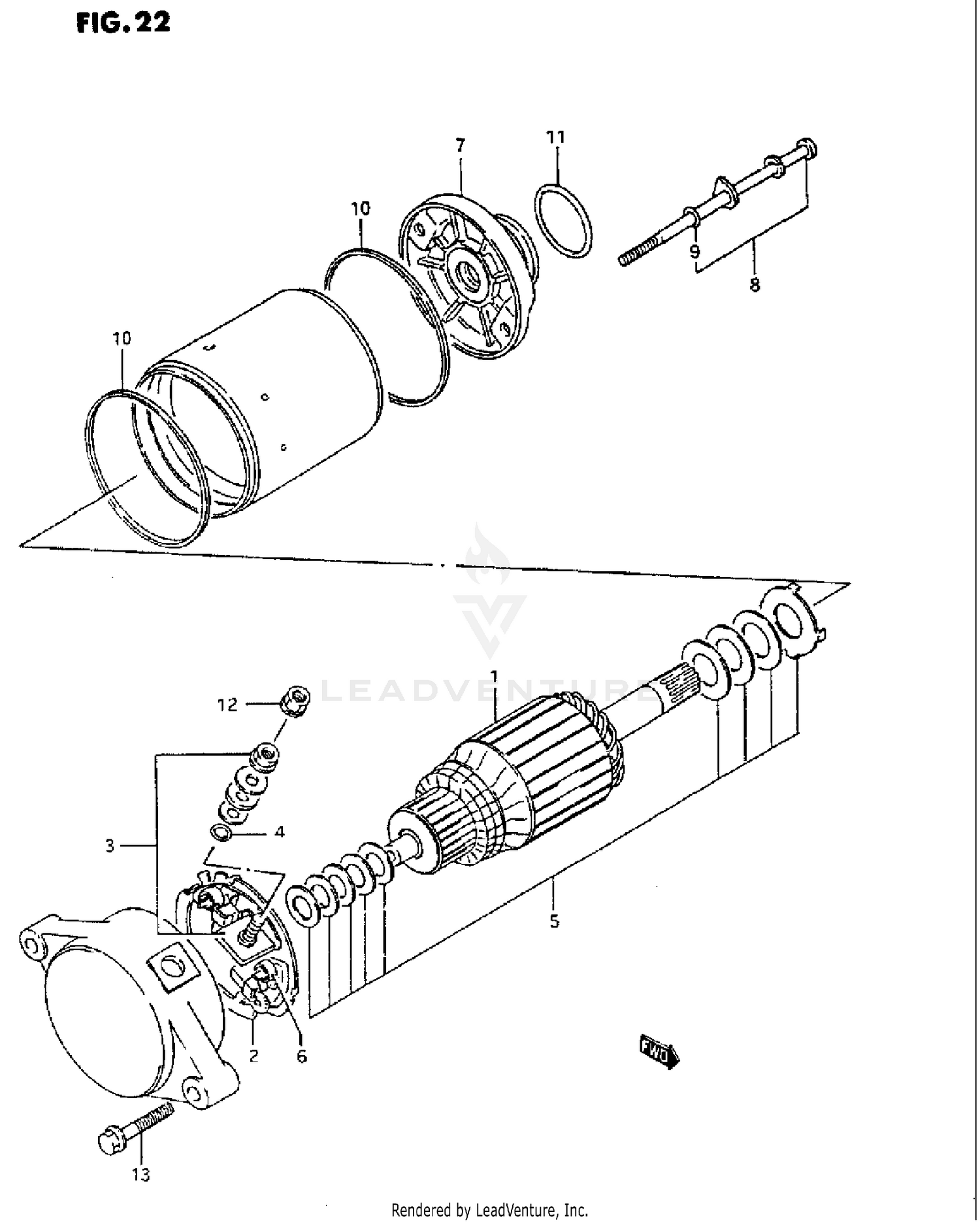

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-19B11
Superseded by 31100-19B20
|
$709.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
ARMATURE
31311-19B12
|
$231.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER SET, BRUSH (-)
31132-19B10
|
$33.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
TERMINAL SET, BRUSH (+)
31130-19B10
|
$31.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING
31143-49040
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER SET
31170-19B10
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
..SPRING, BRUSH
31135-31300
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET ASSY, FRORIT
31150-19B10
|
$121.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT SET
31280-19B10
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING
31143-49040
|
$4.93 | ||
|
Unavailable |
|||
|
#10
O RING
31264-31300
Superseded by 31264-32E00
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O RING (D:3,ID:24.5)
09280-24003
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08361-35068
Superseded by 08361-3506A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
