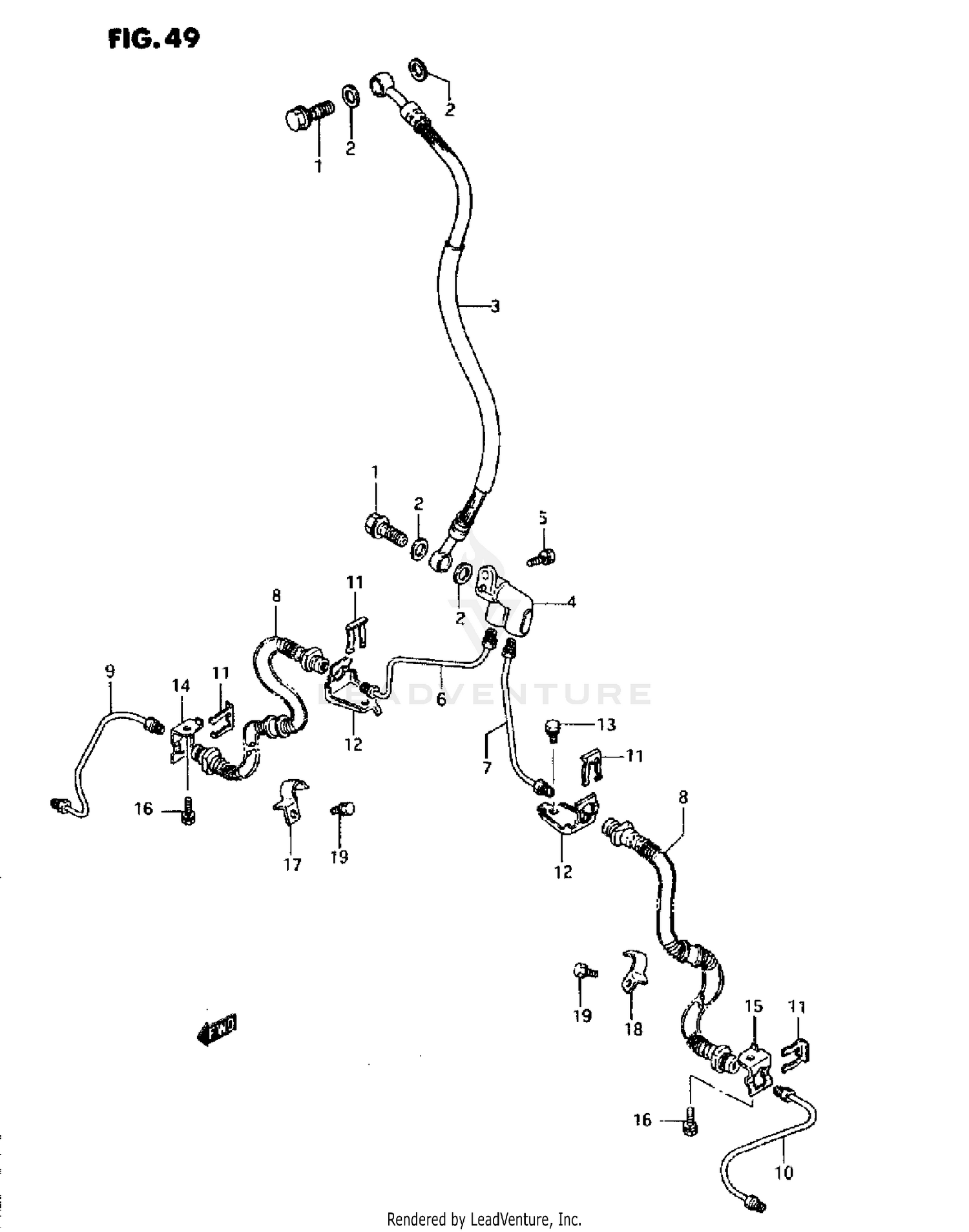

Front Brake Horse Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNION (10X1.00X22)
09360-10039
Superseded by 09360-10061
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE
59480-19B01
Superseded by 59480-19B03
|
$69.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, THREE WAY
59490-19A00
Superseded by 59491-19A10
|
$60.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01570-06163
Superseded by 01570-0616A
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, BRAKE NO.1 RH
59250-19B00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, BRAKE NO.1 LH
59450-19800
|
|||
|
Unavailable |
|||
|
#8
HOSE,FR BRAKE N
59240-19B02
Superseded by 59240-19B03
|
$65.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, BRAKE NO.2 RH
59250-19B10
|
$8.45 | ||
|
Unavailable |
|||
|
#10
PIPE. BRAKE NO.2 LH
59450-19B10
|
$8.62 | ||
|
Unavailable |
|||
|
#11
E RING
09383-13001
Superseded by 09383-13003
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, HOSE
59268-19B00
|
$4.11 | ||
|
Unavailable |
|||
|
#13
BOLT
01570-06123
Superseded by 01570-0612A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, HOSE RH
59261-19B00
|
$4.29 | ||
|
Unavailable |
|||
|
#15
GUIDE, HOSE LH
59271-19B00
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01570-06123
Superseded by 01570-0612A
|
$2.87 | ||
|
Unavailable |
|||
|
#17
CLAMP, HOSE RH
59266-19B01
Superseded by 59266-19B02
|
$4.13 | ||
|
Unavailable |
|||
|
#18
CLAMP HOSE LH
59276-19801
|
|||
|
Unavailable |
|||
|
#19
BOLT
01570-06103
Superseded by 01570-0610A
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
CYLINDER ASSY, FRONT MASTER
59600-44B11
|
$327.63 | ||
|
Available to order. Add to View Price |
|||
