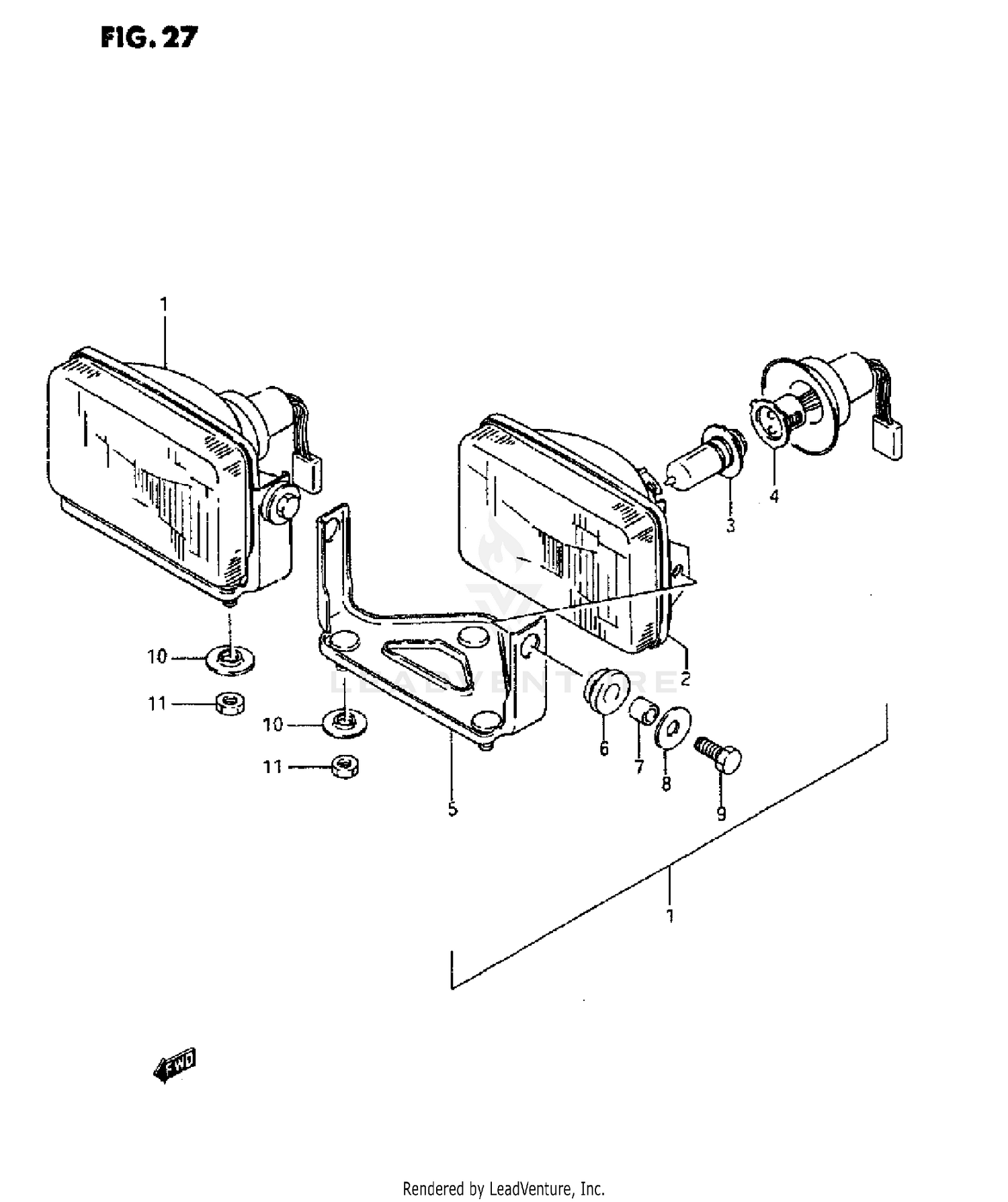

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-19B03
|
$221.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNIT, LAMP
35121-19B00
|
$68.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V, 30/30W,
09471-12093
|
$37.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET
35171-19803
|
|||
|
Unavailable |
|||
|
#5
BRACKET LAMP
35141-19B00
|
$16.82 | ||
|
Unavailable |
|||
|
#6
CUSHION
35139-45230
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
35133-19B00
|
$3.87 | ||
|
Unavailable |
|||
|
#8
WASHER
U9160-06057
|
|||
|
Unavailable |
|||
|
#9
BOLT
09100-06067
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
09169-06028
Superseded by 09169-06041
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08310-00063
Superseded by 08310-0006A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
