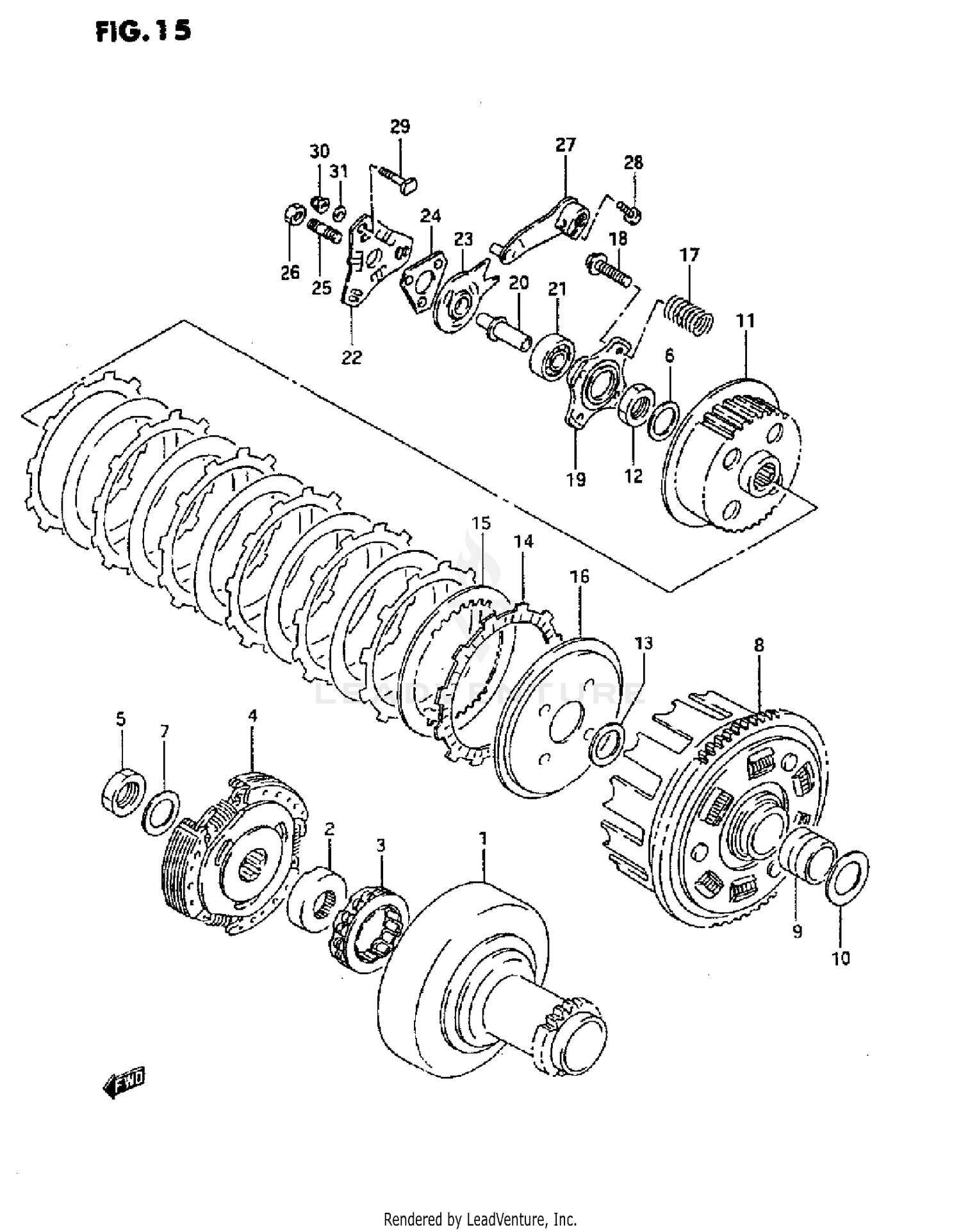

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE (NT:20)
21110-19811
|
|||
|
Unavailable |
|||
|
#2
RACE, INNER
21631-19810
|
|||
|
Unavailable |
|||
|
#3
CLUTCH, ONE WAY
21273-19B10
|
$181.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH ASSY,SHO
21500-19B21
Superseded by 21500-19B22
|
$249.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09140-18012
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09164-20007
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER (ID:18.3)
09164-18007
Superseded by 09164-18001
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR ASSY, PRIMARY DRIVEN
21200-19B03
|
$233.77 | ||
|
Unavailable |
|||
|
#9
SPACER
09180-22035
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (22X36X1.0)
08211-22361
Superseded by 09181-22251
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
HUB, CLUTCH
21410-24500
|
$109.34 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09140-20001
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08211-20323
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, DRIVE
21441-22A01
|
$19.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE,DRIVEN (T:1.4)
21451-01B40
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
DISC, PRESSURE
21462-24501
|
$60.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09440-19017
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, RELEASE
21465-24500
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIECE, PUSH
23121-19B00
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
09262-12001
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE, BALL OUTER
23231-19B10
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
GUIDE, BALL INNER
23211-24201
|
$27.00 | ||
|
Unavailable |
|||
|
#24
BALL, RELEASE
23250-31003
|
$31.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, ADJUSTER
09134-08009
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, ADJUSTER
09140-08019
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#27
ARM, RELEASE
23220-24500
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, GEAR SHIFT LINK
01500-06203
Superseded by 01500-0620A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
09119-06068
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
08313-20063
Superseded by 08313-2006A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, BOLT
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
