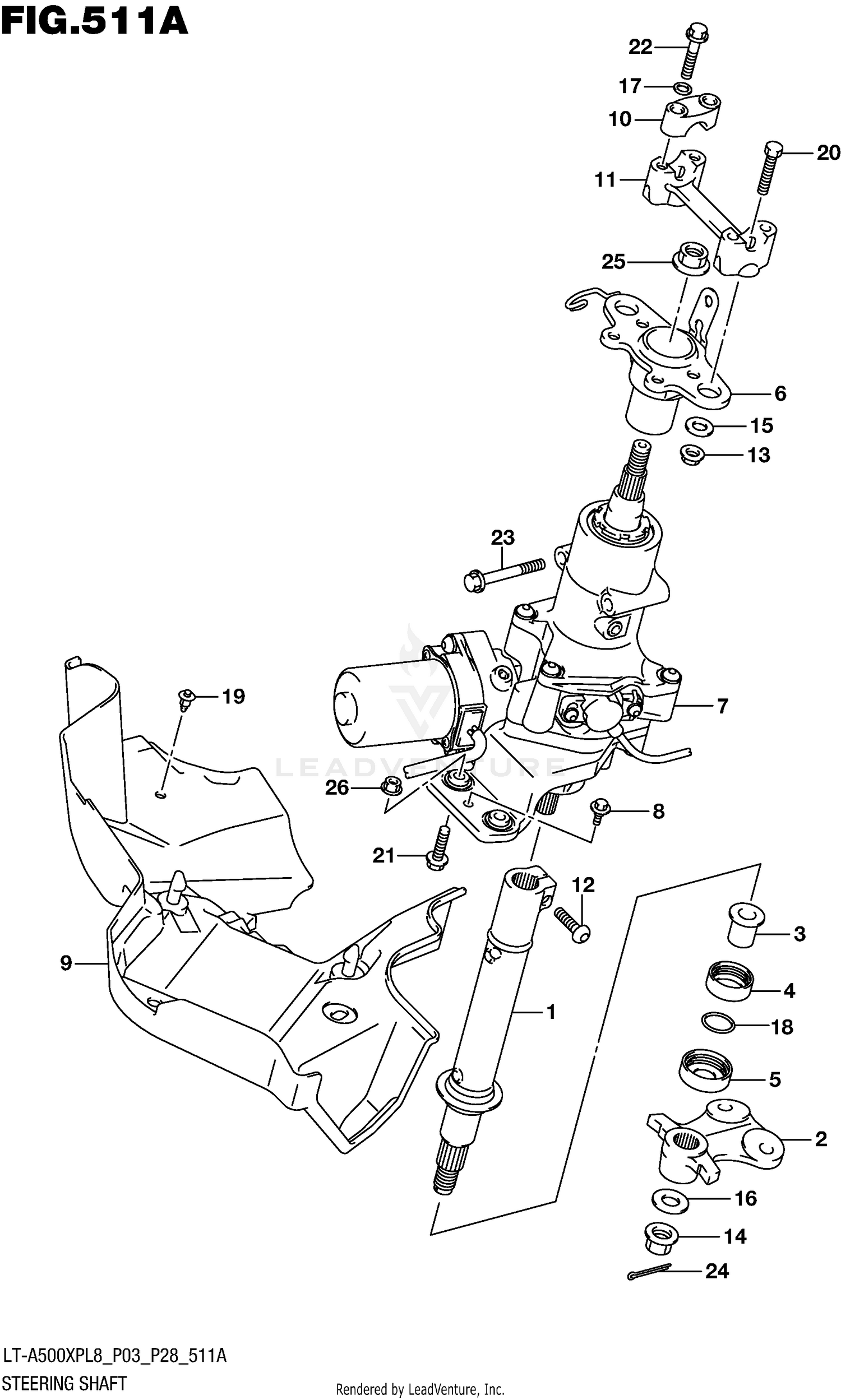

Steering Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, STEERING
51650-31G40
|
$437.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, STEERING ARM
51653-31G30
|
$154.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, STEERING SHAFT LOWER
51661-31G00
|
$38.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUST SEAL, STEERING SHAFT
51662-31G00
Superseded by 51662-31G01
|
$13.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST SEAL, STEERING LOWER
51663-31G10
Superseded by 51663-31G11
|
$19.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, STEERING SHAFT
51680-31G00
|
$202.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY ASSY,STEER
51700-31G15
Superseded by 51700-31G18
|
$3,032.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X12)
09111-06085
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, EPS ECU
51771-31G00
|
$151.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HANDLE HOLDER UP
56211-09F00-291
|
$33.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
(BLACK)
56211-09F00-291
|
$33.16 | ||
|
Unavailable |
|||
|
#11
CLAMP, HANDLE HOLDER
56211-31G10
|
$48.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X25)
09106-08129
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09159-14027
|
$15.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (10.5X22X2.3)
09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (14.5X30X3.2)
09160-14062
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
09164-08015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING (D:2.4,ID:23.7)
09280-24010
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT
01500-1035A
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-0830A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01550-0835A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01550-0875A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN
04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
08316-1014A
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
