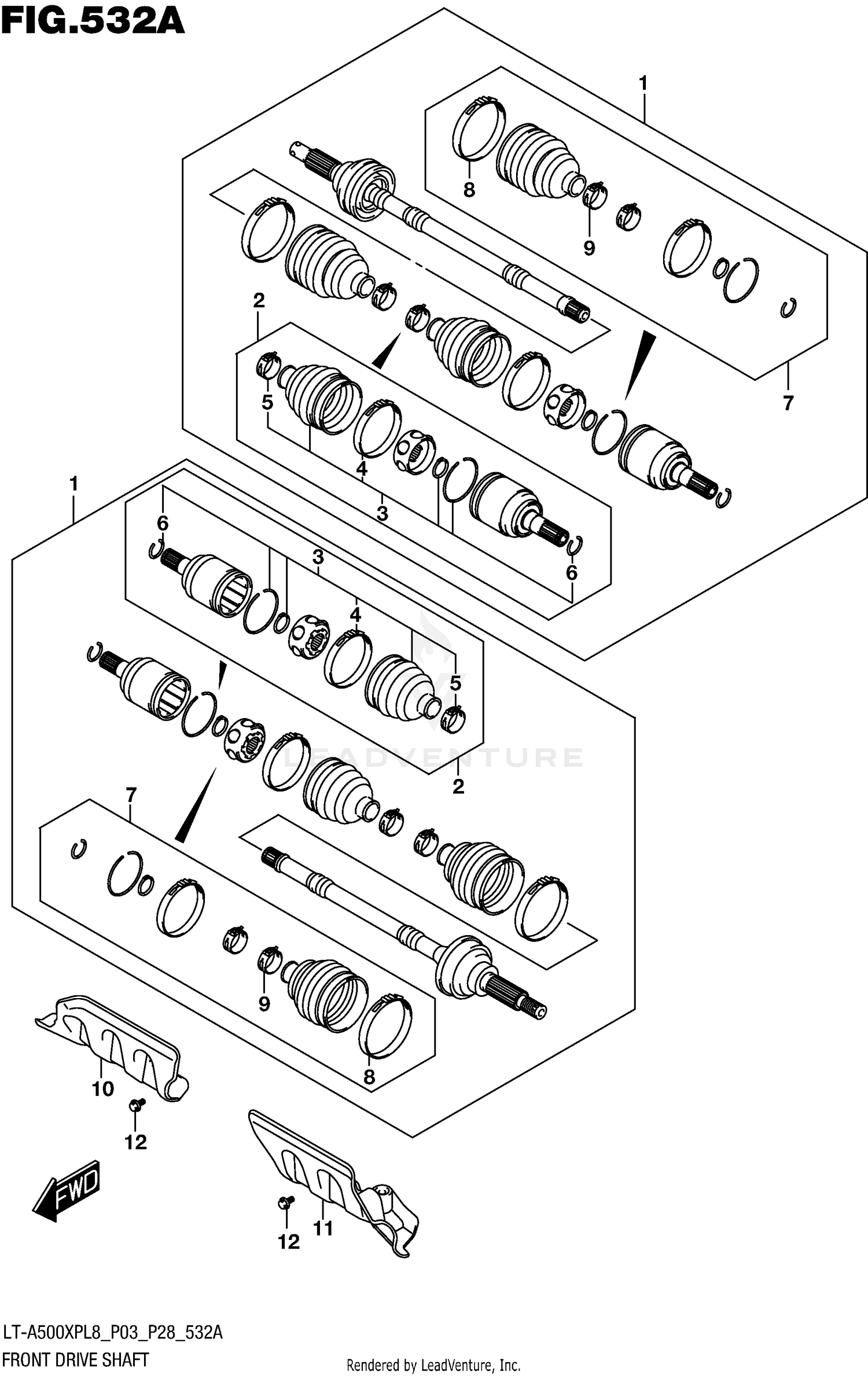

Front Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT ASSY, FRONT DRIVE
54901-31G31
|
$368.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
.JOINT SET
54933-31G21
|
$300.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT SET, INNER
54931-31G21
|
$119.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
...BAND, BOOT
44121-31G50
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
...BAND, BOOT
44124-31G20
|
$8.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
...CIRCLIP
54925-19B01
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BOOT SET, OUTER
54930-31G21
|
$152.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
..BAND, BOOT
44121-31G40
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
...BAND, BOOT
44124-31G20
|
$8.41 | ||
|
Unavailable |
|||
|
#10
PROTECTOR,FR DRIVE SHAFT,R
54903-31G00
Superseded by 54903-31G01
|
$29.03 | ||
|
Unavailable |
|||
|
#11
PROTECTOR,FR DRIVE SHAFT,L
54904-31G00
Superseded by 54904-31G01
|
$29.43 | ||
|
Unavailable |
|||
|
#12
BOLT (6X12)
09111-06085
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
