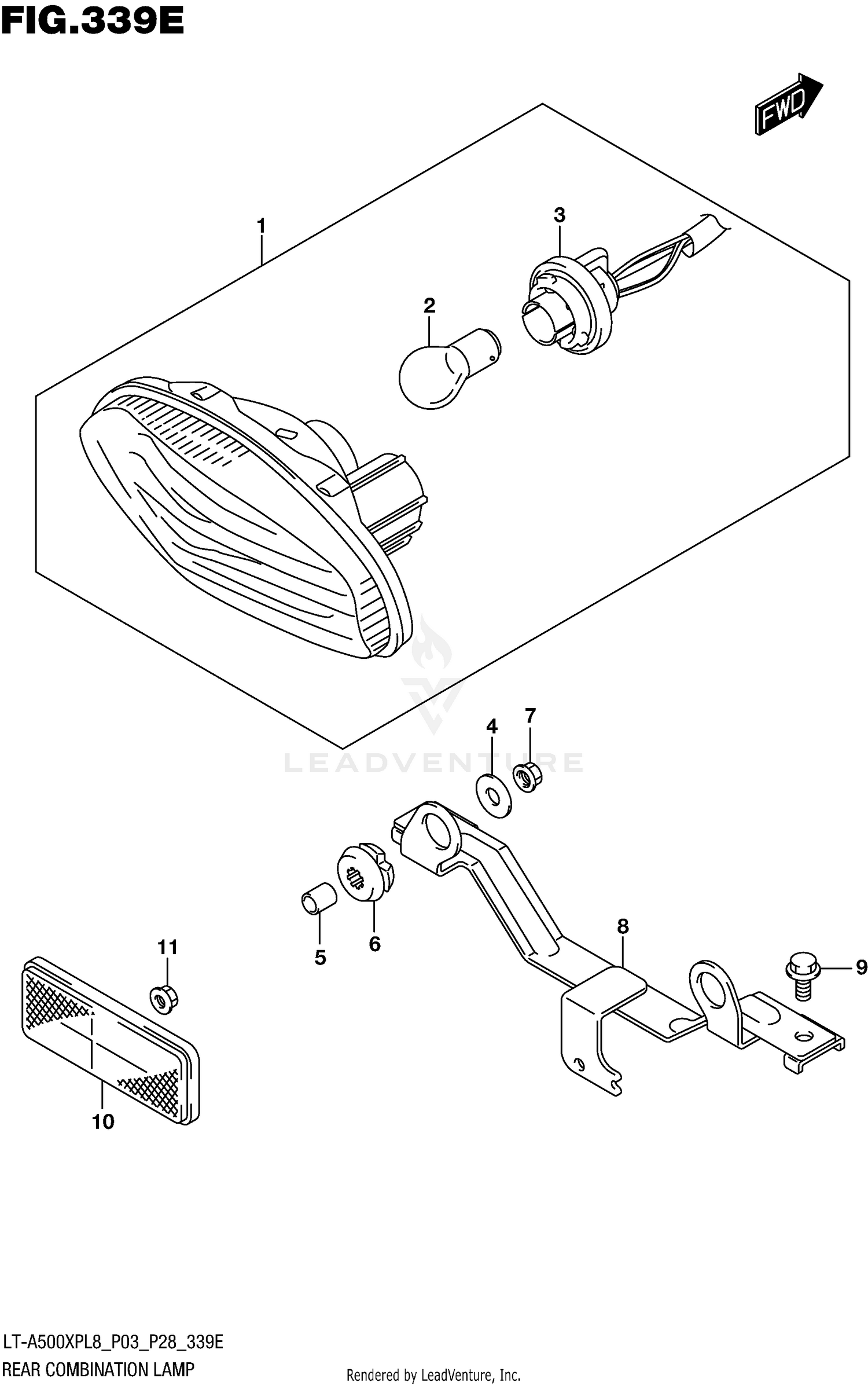

Rear Combination Lamp (lt-a500xpbl8 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-31G00
|
$93.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BULB (12V21/5W,BF141-49642A)
09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SOCKET & CORD
35718-03G30
|
$34.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER (6.5X20X1.2)
09160-06027
Superseded by 09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER (6.5X9X10.5)
09180-06264
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09320-09018
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BRACKET, REAR COMBINATION LAM
35726-31G10
|
$31.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
REFLECTOR ASSY, REAR
35970-07F01
|
$26.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08316-1005B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
