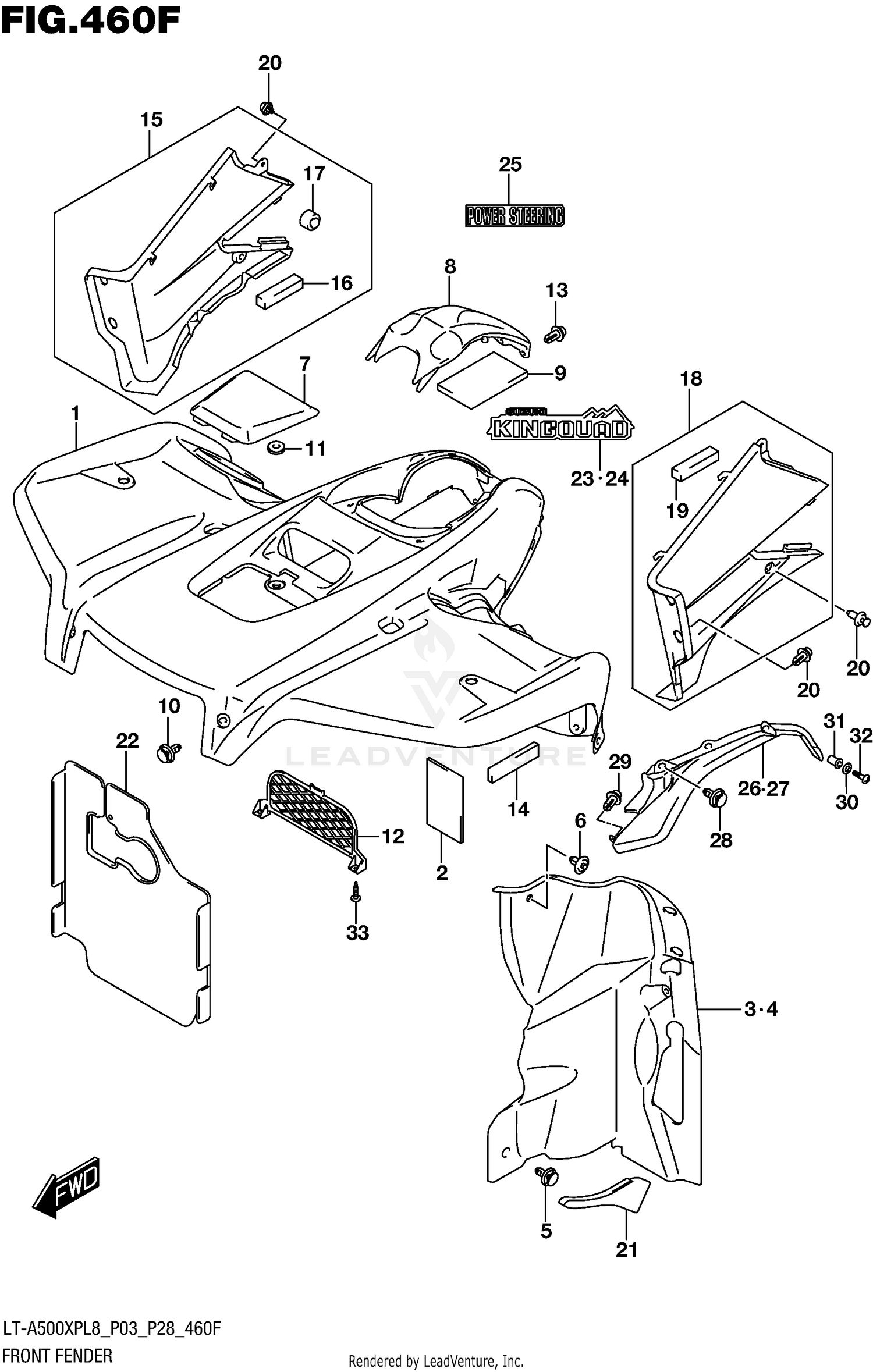

Front Fender (lt-a500xpbl8 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (BLACK)
53111-31G60-QFA
Superseded by 53111-31G80-QFA
|
$600.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, FRONT FENDER NO.2
53132-31GB0
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUDFLAP, INNER RH
53411-31G02
|
$39.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUD FLAP,FENDER
53421-31G01
Superseded by 53421-31G03
|
$29.71 | ||
|
Unavailable |
|||
|
#5
CLIP
09409-08335
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLIP
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
LID (BLACK)
53341-31G52-QFA
Superseded by 53341-31G60-QFA
|
$134.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER, CENTER (BLACK)
53119-31G50-QFA
Superseded by 53119-31G60-QFA
|
$161.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, FRONT FENDER NO.1
53131-31GB0
|
$19.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
09409-08335
|
$2.85 | ||
|
Unavailable |
|||
|
#11
CUSHION
09320-08018
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER,INNER
53212-31G01
Superseded by 53212-31G03
|
$17.21 | ||
|
Unavailable |
|||
|
#13
CLIP
09409-08335
|
$2.85 | ||
|
Unavailable |
|||
|
#14
CUSHION, COVER SIDE
53113-31H00
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,SIDE,R
53110-31G30-291
Superseded by 53112-31G04
|
$54.22 | ||
|
Unavailable |
|||
|
#16
.CUSHION, COVER NO.2
53146-05G00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
.CUSHION
09321-10019
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,SIDE,L
53110-31G20-291
Superseded by 53122-31G04
|
$121.48 | ||
|
Unavailable |
|||
|
#19
.CUSHION, COVER NO.2
53146-05G00
|
$8.21 | ||
|
Unavailable |
|||
|
#20
CLIP
09409-08335
|
$2.85 | ||
|
Unavailable |
|||
|
#21
MUDGUARD,SIDE RH
53116-31G00
Superseded by 53116-31G01
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER,CENTER
53117-31G00
Superseded by 53117-31G01
|
$33.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
EMBLEM,FR FENDE
68151-31GC0-EFG
Superseded by 68151-31GC1-EFG
|
$53.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
EMBLEM,LH
68152-31GC0-EFG
Superseded by 68152-31GC1-EFG
|
$53.97 | ||
|
Available to order. Add to View Price |
|||
|
#25
EMBLEM,"POWER-S
68151-31GD0-CT5
Superseded by 68151-31GD1-CT5
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
EMBLEM,"POWER-S
68151-31GD0-CT5
Superseded by 68151-31GD1-CT5
|
$23.49 | ||
|
Unavailable |
|||
|
#26
MUDGUARD, FRONT RH (BLACK)
53331-31G10-291
|
|||
|
Unavailable |
|||
|
#27
MUDGUARD, FRONT LH (BLACK)
53332-31G10-291
|
|||
|
Unavailable |
|||
|
#28
CLIP
09409-08335
|
$2.85 | ||
|
Unavailable |
|||
|
#29
CLIP
09409-08335
|
$2.85 | ||
|
Unavailable |
|||
|
#30
WASHER (5.5X20X1.4)
09160-05046
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT
09159-05045
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
02142-0525B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
