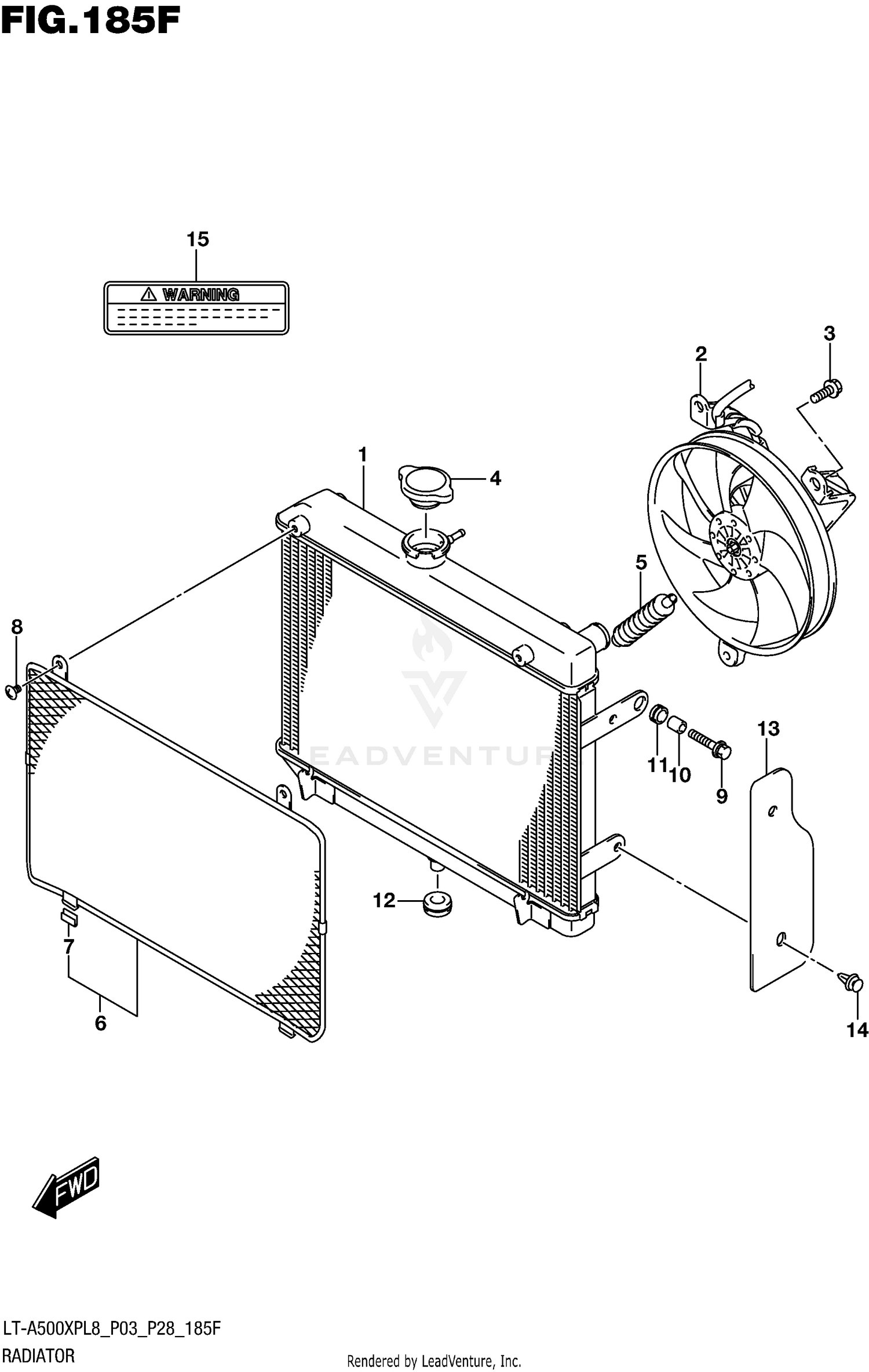

Radiator (lt-a500xpbl8 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR SET WATER
17710-31G30
|
$284.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
FAN ASSY, RADIATOR
17800-31G20
|
$307.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY, RADIATOR
17730-14G00
|
$55.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOOT,RDTR FAN MOTOR
17820-07G10
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, RADIATOR
17760-09F00
Superseded by 17760-09F01
|
$69.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PROTECTOR,CTR
17765-09F00
Superseded by 17765-09F01
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02142-0608A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X25)
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X10X12)
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-10042
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-12036
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUARD, RADIATOR FAN
17811-31G00
|
$59.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
LABEL,COOLING FAN
17991-02F01
Superseded by 17991-02F02
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
