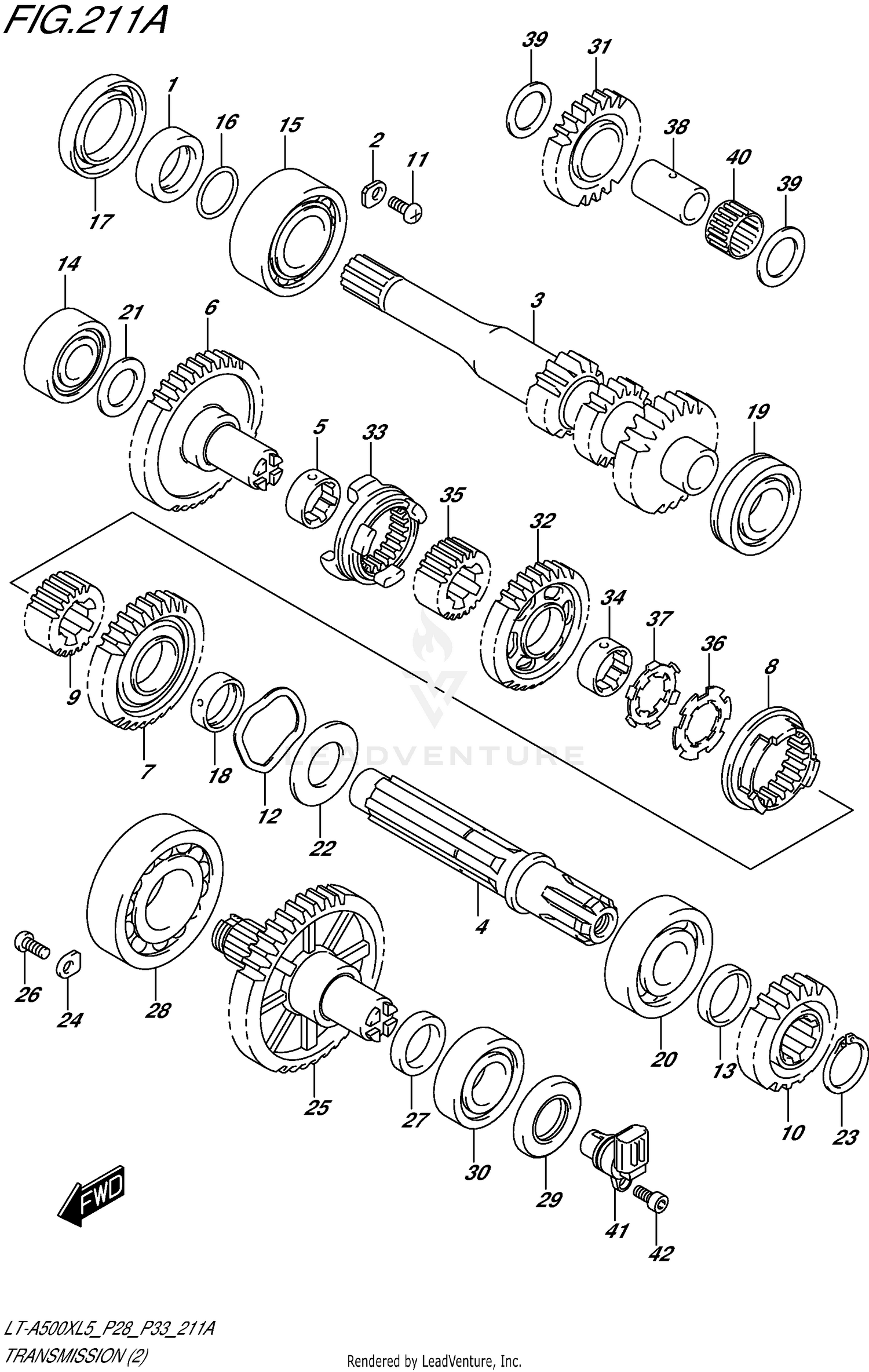

Transmission (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPACER, PRIMARY SHAFT
21102-31G00
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
RETAINER, DRIVE SHAFT RH
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, DRIVE (NT:25/16/16)
29111-11H01
|
$313.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, SUB T/M COUNTER
29131-31G00
|
$110.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, SUB T/M DRIVEN GR LOW
29215-07G00
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, SUB T/M DRIVEN LOW
29311-31G00
|
$150.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, SUB T/M DRIVEN HIGH
29321-31G00
|
$175.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
DOG, GEAR SHIFT HIGH
29331-31G10
|
$89.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, SUB T/M SELECT
29332-31G00
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, SUB T/M DRIVE NO.2
29411-31H00
|
$73.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (6X12)
09125-06122
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09164-34001
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (25X30X7)
09180-25097
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING (20X47X14)
09262-20139
|
$48.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING (25X62X17)
09262-25153
|
$79.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING (D:2.4,ID:24.7)
09280-25004
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (38X56X7)
09283-38025
|
$39.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSH, SUB T/M DRIVEN GR
24252-19F00
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING (25X52X15)
09262-25142
|
$40.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING (25X62X17)
09262-25073
|
$32.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
08211-20363
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
08211-25463
|
$4.25 | ||
|
Unavailable |
|||
|
#23
CIRCLIP
08331-31259
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#24
RETAINER, SEC DRIVE SHAFT
24741-21A00
|
$3.53 | ||
|
Unavailable |
|||
|
#25
SHAFT, SUB T/M OUTPUT
29120-31H00
|
$326.18 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW (6X12)
09125-06122
|
$2.67 | ||
|
Unavailable |
|||
|
#27
SPACER (25X34X5.5)
09180-25083
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING (30X72X19)
09262-30077
|
$63.52 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL,OIL (25X45X5)
09283-25076
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING (25X52X15)
09262-25003
|
$31.14 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, REVERSE IDLE (NT:23)
24561-31G20
|
$110.34 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR, REVERSE DRIVEN (NT:32)
24571-31G00
|
$128.96 | ||
|
Available to order. Add to View Price |
|||
|
#33
DOG, SUB T/M SELECT SLIDING
24581-31G00
|
$97.17 | ||
|
Available to order. Add to View Price |
|||
|
#34
BUSH, SUB T/M DRIVEN GR LOW
29215-07G00
|
$25.08 | ||
|
Unavailable |
|||
|
#35
SPACER, SUB T/M SELECT
29332-31G00
|
$49.75 | ||
|
Unavailable |
|||
|
#36
WASHER,LOCK (25.1X41X1.5)
09167-25013
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER
09169-25001
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
SHAFT, REVERSE IDLE
24551-31G00
|
$20.08 | ||
|
Available to order. Add to View Price |
|||
|
#39
SHIM (20X30X1)
09181-20195
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING (20X24X13)
09263-20060
|
$22.53 | ||
|
Available to order. Add to View Price |
|||
|
#41
SENSOR, SPEED
34990-31G01
|
$148.73 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
