2015 Suzuki KINGQUAD 500 AXI CAMO Crankshaft OEM Parts

Accessory
Air & Fuel
Body, Fairing & Fender
Brakes
Cooling System
Dash & Gauges
Drive & Transmission
Electrical
Engine
Exhaust
Foot Control
Frame
Handlebars & Controls
Labels
Luggage
Other
Seat
Suspension

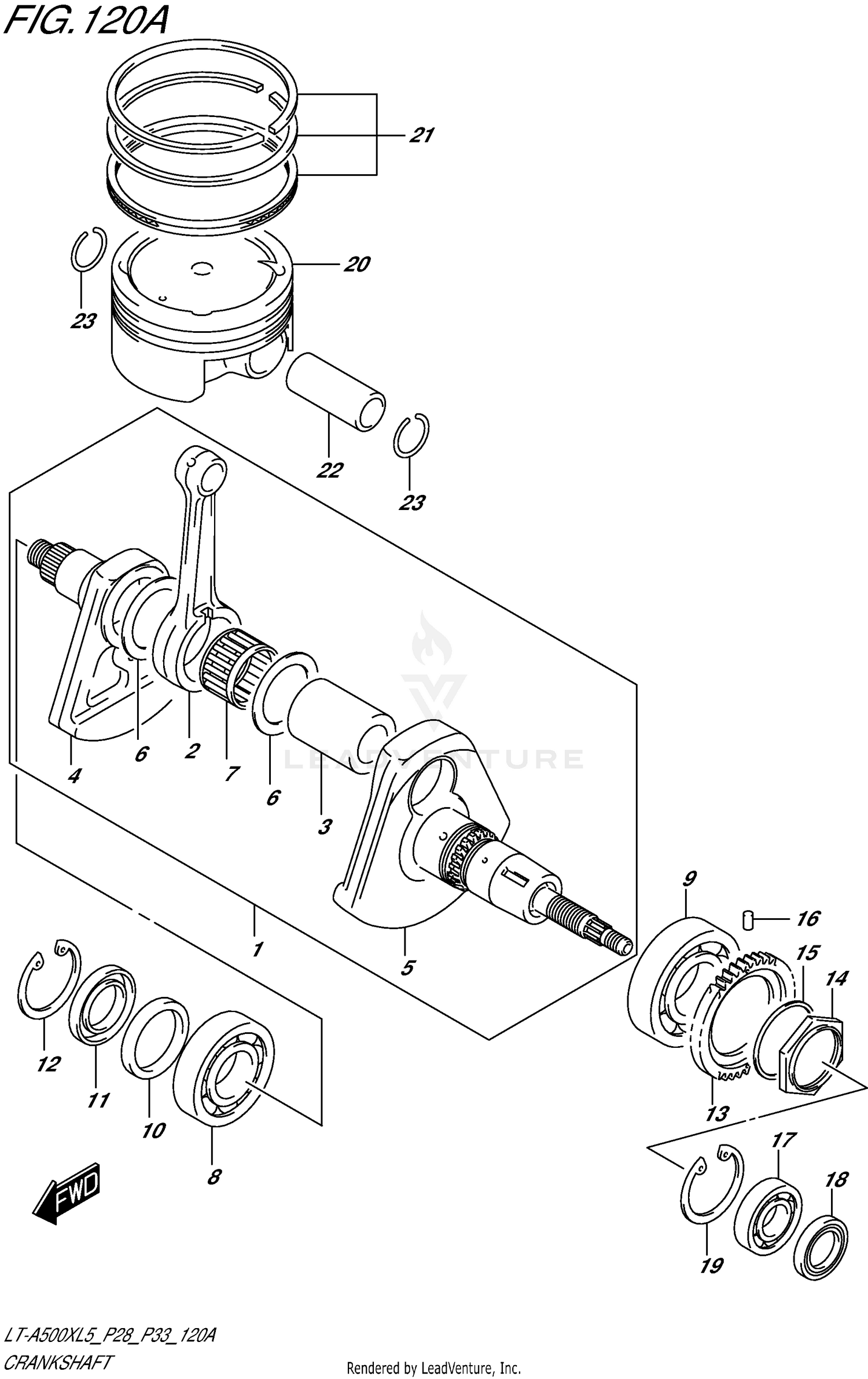

Crankshaft Diagram

Item MSRP Qty
#1 CRANKSHAFT ASSY
12200-11H00
$1,046.64
Available to order.
Add to View Price
#2 CONNROD
12161-11H00
$183.73
Available to order.
Add to View Price
#3 .PIN, CRANK
12210-11H00
$81.27
Available to order.
Add to View Price
#4 .CRANKSHAFT RH
12220-11H00
Unavailable
#5 .CRANKSHAFT LH
12261-11H00
Unavailable
#6 WASHER (35X55X1)
09160-35005
$11.91
Available to order.
Add to View Price
#7 BEARING (35X44X25)
09263-35043
$107.57
Available to order.
Add to View Price
#8 BEARING (40X80X18)
09262-40008
$87.29
Available to order.
Add to View Price
#9 BEARING (45X85X19)
09262-45007
$113.64
Available to order.
Add to View Price
#10 OIL SEAL (34X49X6)
09282-34003
$48.45
Available to order.
Add to View Price
#11 OIL SEAL (34X52X6)
09282-34001
$41.06
Available to order.
Add to View Price
#12 CIRCLIP
08331-41529
$4.85
Available to order.
Add to View Price
#13 GEAR, CRANK BALANCER DRIVE
12661-31G01
$170.70
Available to order.
Add to View Price
#14 NUT, CRANK BALANCER DRIVE GEA
12664-31G00
$27.14
Available to order.
Add to View Price
#15 WASHER (45X60X1.2)
09160-45006
$7.04
Available to order.
Add to View Price
#16 PIN (5X8)
09261-05005
$1.79
Available to order.
Add to View Price
#17 BEARING (25X47X8)
09262-25006
$32.19
Available to order.
Add to View Price
#18 OIL SEAL (25X42X6)
09283-25095
$33.52
Available to order.
Add to View Price
#19 CIRCLIP
08331-41479
$2.89
Available to order.
Add to View Price
#20 PISTON (YELLOW)
12111-31H10-0F0
$85.96
Available to order.
Add to View Price
#21 RING SET, PISTON
12140-03G20
$117.04
Available to order.
Add to View Price
#22 PIN,PISTON
12151-24A00
$28.45
Available to order.
Add to View Price
#23 SNAP RING
09381-20004
$2.05
In Stock: Ready to ship.
Add to View Price
