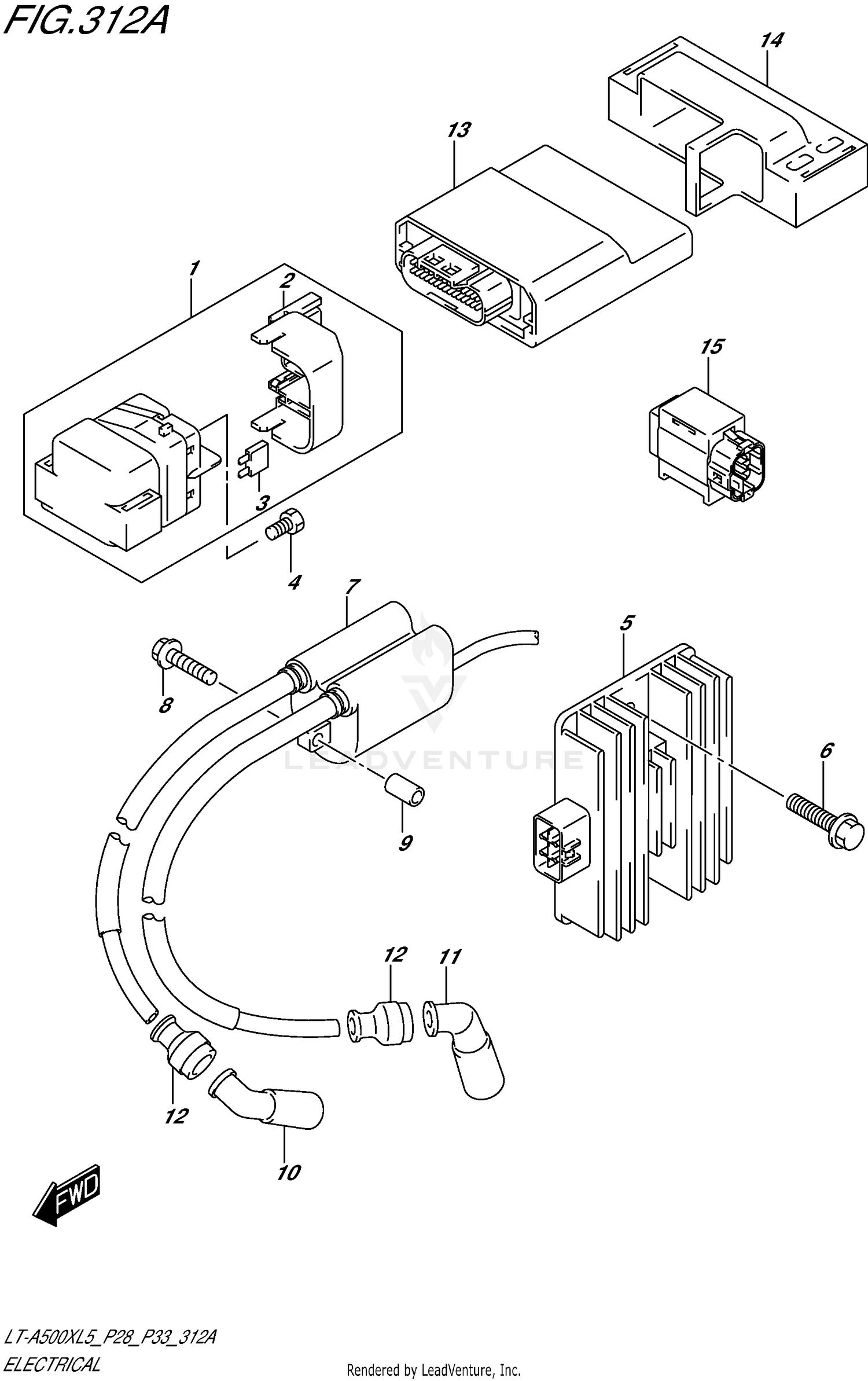

Electrical (lt-a500xl5 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-41G00
Superseded by 31800-41G10
|
$118.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (30A)
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-42F10
|
$306.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY, IGNITION
33410-40H00
Superseded by 33410-40H01
|
$140.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01547-0640A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (6.4X10X18)
09180-06195
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY, SPARK PLUG
33510-31G10
|
$42.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP ASSY, SPARK PLUG
33510-31G10
|
$42.53 | ||
|
Unavailable |
|||
|
#12
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONTROL UNIT,FI
32920-31HA0
Superseded by 32920-31HA1
|
$615.55 | ||
|
Unavailable |
|||
|
#14
HOLDER, FI CONTROL UNIT
32980-31GA0
|
$48.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
