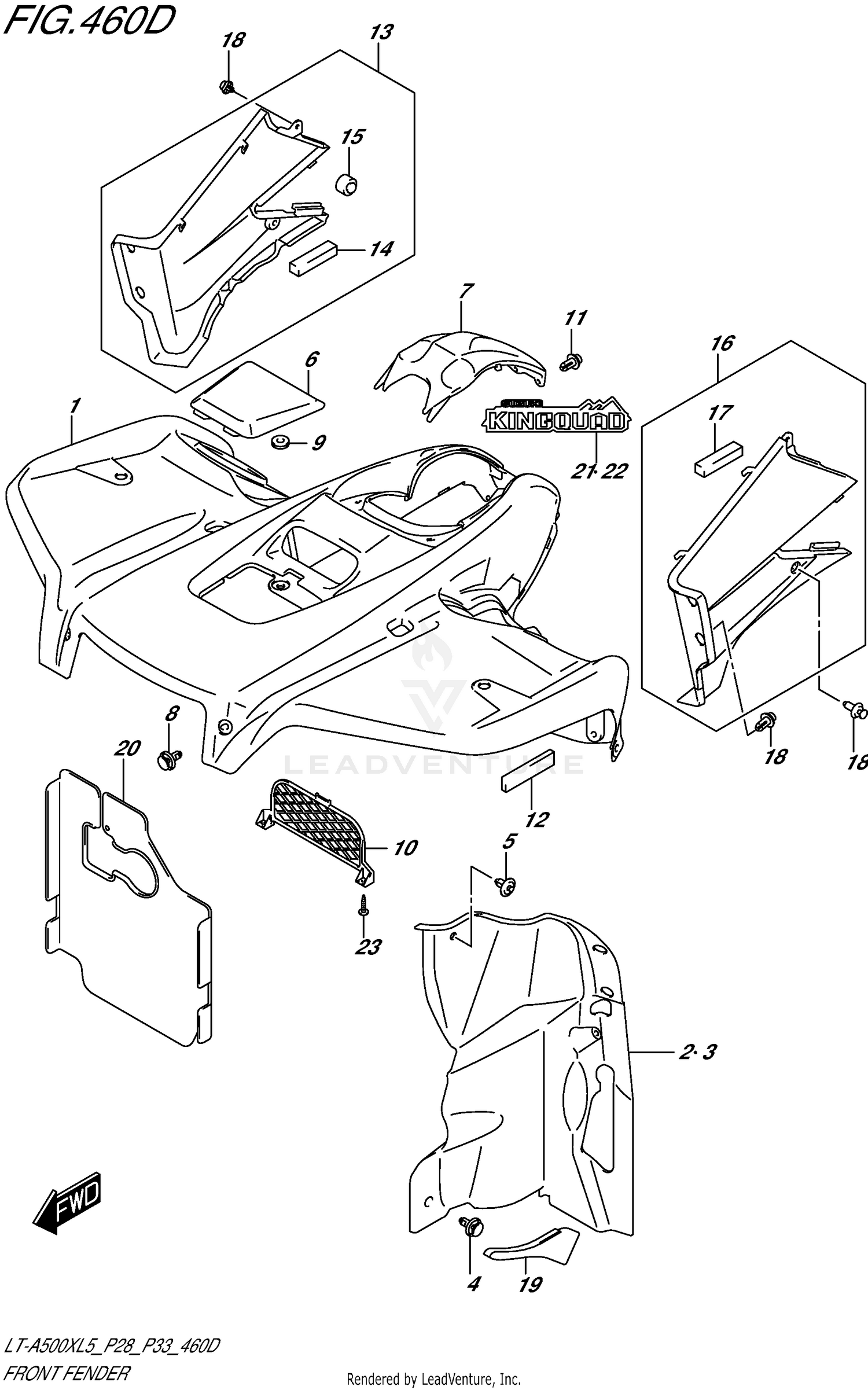

Front Fender (lt-a500xzl5 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (CAMOUFLAGE)
53111-31GC3-PHW
Superseded by 53111-31G41-PHW
|
$816.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUDFLAP, INNER RH
53411-31G02
|
$39.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUD FLAP,FENDER
53421-31G01
Superseded by 53421-31G03
|
$29.71 | ||
|
Unavailable |
|||
|
#4
CLIP
09409-08335
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLIP
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
LID (CAMOUFLAGE)
53341-31GC3-PHW
Superseded by 53341-31GC4-PHW
|
$62.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, CENTER (CAMOUFLAGE)
53119-31GC2-PHW
|
$147.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
09409-08335
|
$2.85 | ||
|
Unavailable |
|||
|
#9
CUSHION
09320-08018
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COVER,INNER
53212-31G01
Superseded by 53212-31G03
|
$17.21 | ||
|
Unavailable |
|||
|
#11
CLIP
09409-08335
|
$2.85 | ||
|
Unavailable |
|||
|
#12
CUSHION, FENDER SIDE
53145-07G10
Superseded by 53145-07GA0
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,SIDE,R
53110-31G10-291
Superseded by 53112-31G04
|
$54.22 | ||
|
Unavailable |
|||
|
#14
.CUSHION, COVER NO.2
53146-05G00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09321-10019
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,SIDE,L
53110-31G20-291
Superseded by 53122-31G04
|
$121.48 | ||
|
Unavailable |
|||
|
#17
.CUSHION, COVER NO.2
53146-05G00
|
$8.21 | ||
|
Unavailable |
|||
|
#18
CLIP
09409-08335
|
$2.85 | ||
|
Unavailable |
|||
|
#19
MUDGUARD,SIDE RH
53116-31G00
Superseded by 53116-31G01
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER,CENTER
53117-31G00
Superseded by 53117-31G01
|
$33.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
EMBLEM,FR FENDE
68151-31GC0-EFG
Superseded by 68151-31GC1-EFG
|
$53.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM,LH
68152-31GC0-EFG
Superseded by 68152-31GC1-EFG
|
$53.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
