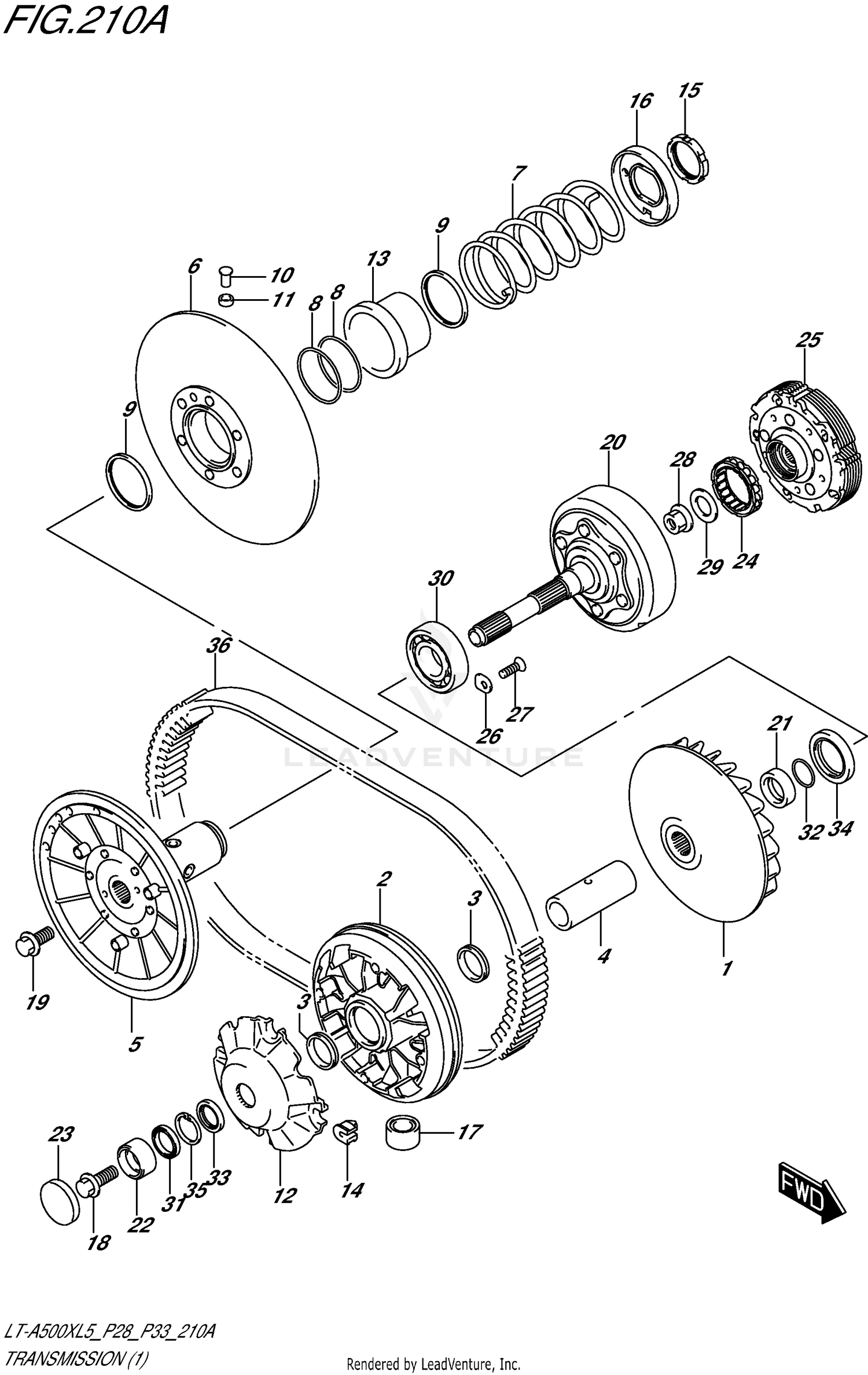

Transmission (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FACE, FIXED DRIVE
21110-11H00
|
$210.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
FACE, MOVABLE DRIVE
21120-11H00
|
$218.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, MOVABLE DRIVE FACE
21124-15F00
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, MOVABLE DRIVE
21125-11H50
|
$79.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
FACE, FIXED DRIVEN
21210-11H00
|
$468.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
FACE, MOVABLE DRIVEN
21240-11H10
|
$448.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, MOVABLE DRIVEN
21243-38F10
|
$67.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING,MOVABLE DRIVEN
21245-38F00
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL,MOVABLE DRIVEN OIL
21247-38F00
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN,MOVABLE DRIVEN
21248-15F01
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,MOVABLE DRIVEN PIN
21249-15F00
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, MOVABLE DRIVE
21431-11H00
|
$68.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHEET, MOVABLE DRIVEN
21471-38F10
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER,MOVABLE DRIVE PLATE
21481-14F00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT,DRIVEN PULLEY SPRING
21518-38F00
|
$36.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, MOVABLE DRIVEN
21519-38F10
|
$24.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROLLER, MOVABLE DRIVEN
21650-09F51
|
$21.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (12X30)
09103-12028
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (12X25)
09103-12049
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOUSING, CLUTCH
21100-11H00
|
$363.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, PRIMARY SHAFT
21102-31G00
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER, CLUTCH HOUSING
21106-31G10
|
$37.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, V-BELT BEARING
21107-31G00
|
$11.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLUTCH,PRI DRIVE ONE WAY
21273-44D00
|
$178.21 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH ASSY, SHOE
21500-11H10
|
$455.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
RETAINER, CL HSG BRG
24741-20A00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
09159-18023
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER
09164-18004
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING (25X62X17)
09262-25073
|
$32.51 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING (35X47X7)
09262-35075
|
$81.68 | ||
|
Available to order. Add to View Price |
|||
|
#32
O RING (D:2.4,ID:24.7)
09280-25004
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL (35X47X5)
09283-35051
|
$32.12 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL (38X56X7)
09283-38025
|
$39.96 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
08331-41479
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#36
V-BELT, DRIVE
27601-11H00
|
$314.60 | ||
|
Available to order. Add to View Price |
|||
