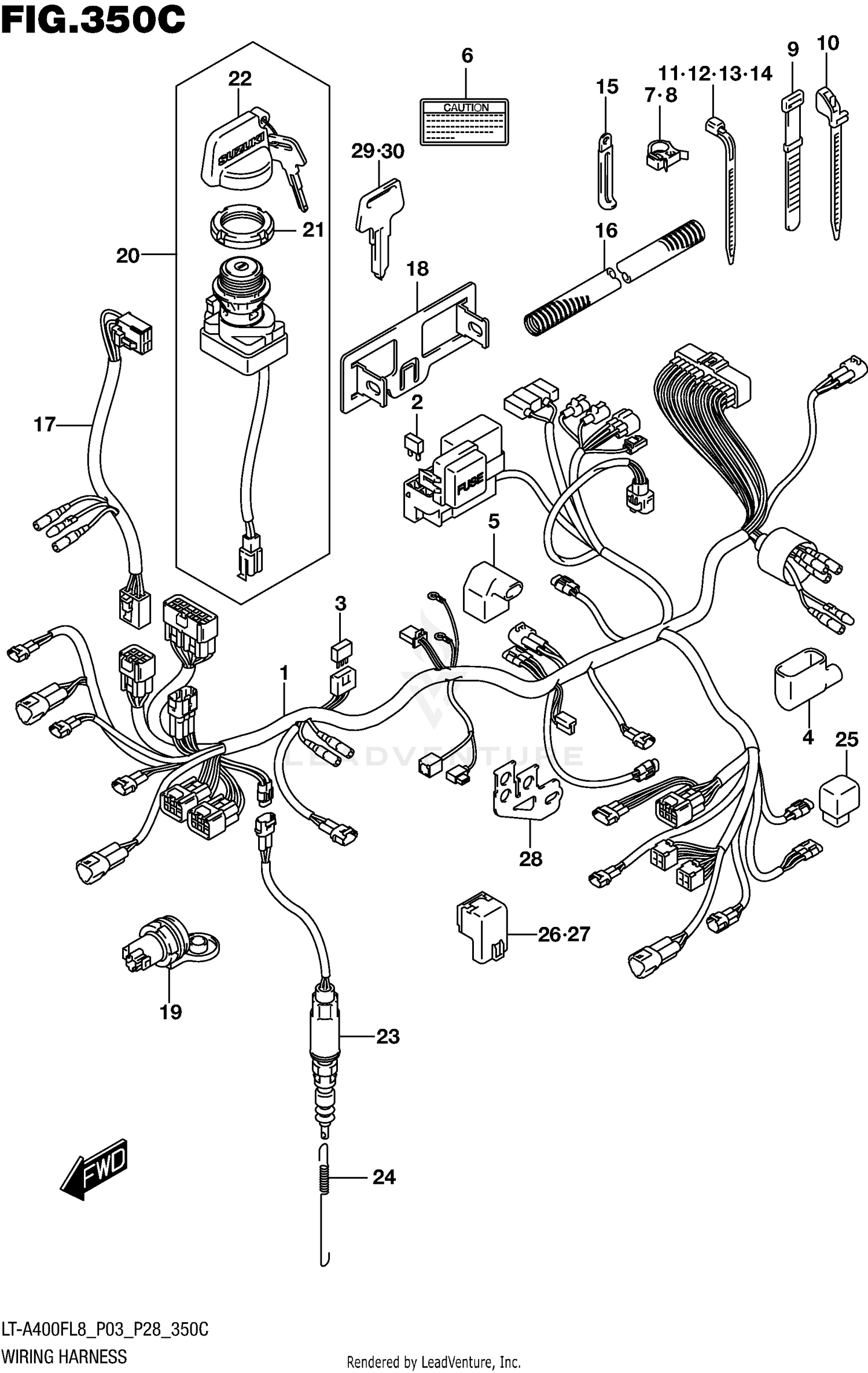

Wiring Harness (lt-a400fl8 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING
36610-27HG0
Superseded by 36610-27HG2
|
$685.04 | ||
|
Unavailable |
|||
|
#2
.FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
.PROTECTOR, WIRING HARNESS
36618-25H00
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOOT, CONNECTOR
36618-27H00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, CAUTION MAX AMP
38852-09F50
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
09403-20403
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
09403-30403
|
$2.48 | ||
|
Unavailable |
|||
|
#9
CLAMP (L:120)
09407-12402
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09407-12407
|
|||
|
Unavailable |
|||
|
#11
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:235)
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP (L:45)
09404-08205
Superseded by 09404-08211
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE,WIRING HARNESS
36619-27H00
|
$10.09 | ||
|
Unavailable |
|||
|
#17
WIRE, FRONT BRAKE SW LEAD
36855-27H00
|
$55.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,FUSE BOX
36744-38F00
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
TERMINAL, POWER SOURCE
38850-03G10
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH ASSY,IGNITION
37110-38F00
Superseded by 37110-38F01
|
$105.61 | ||
|
Available to order. Add to View Price |
|||
|
#21
.NUT,IGNITION SWITCH
37112-24500
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
.MASCOT,KEY
37142-19B00
Superseded by 37142-19B01
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
SWITCH ASSY,STOP LAMP
37740-38F01
|
$129.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
09443-06016
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
RELAY,NEUTRAL START
38730-09F00
|
$60.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
RELAY ASSY
38740-31G10
Superseded by 38740-31G11
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
RELAY ASSY
38740-31G10
Superseded by 38740-31G11
|
$36.45 | ||
|
Unavailable |
|||
|
#28
BRACKET, RELAY
38741-27H20
|
|||
|
Unavailable |
|||
|
#29
KEY,BLANK (TYPE:C)
37146-19B00
|
$10.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
KEY,BLANK (TYPE:D)
37146-19B10
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
