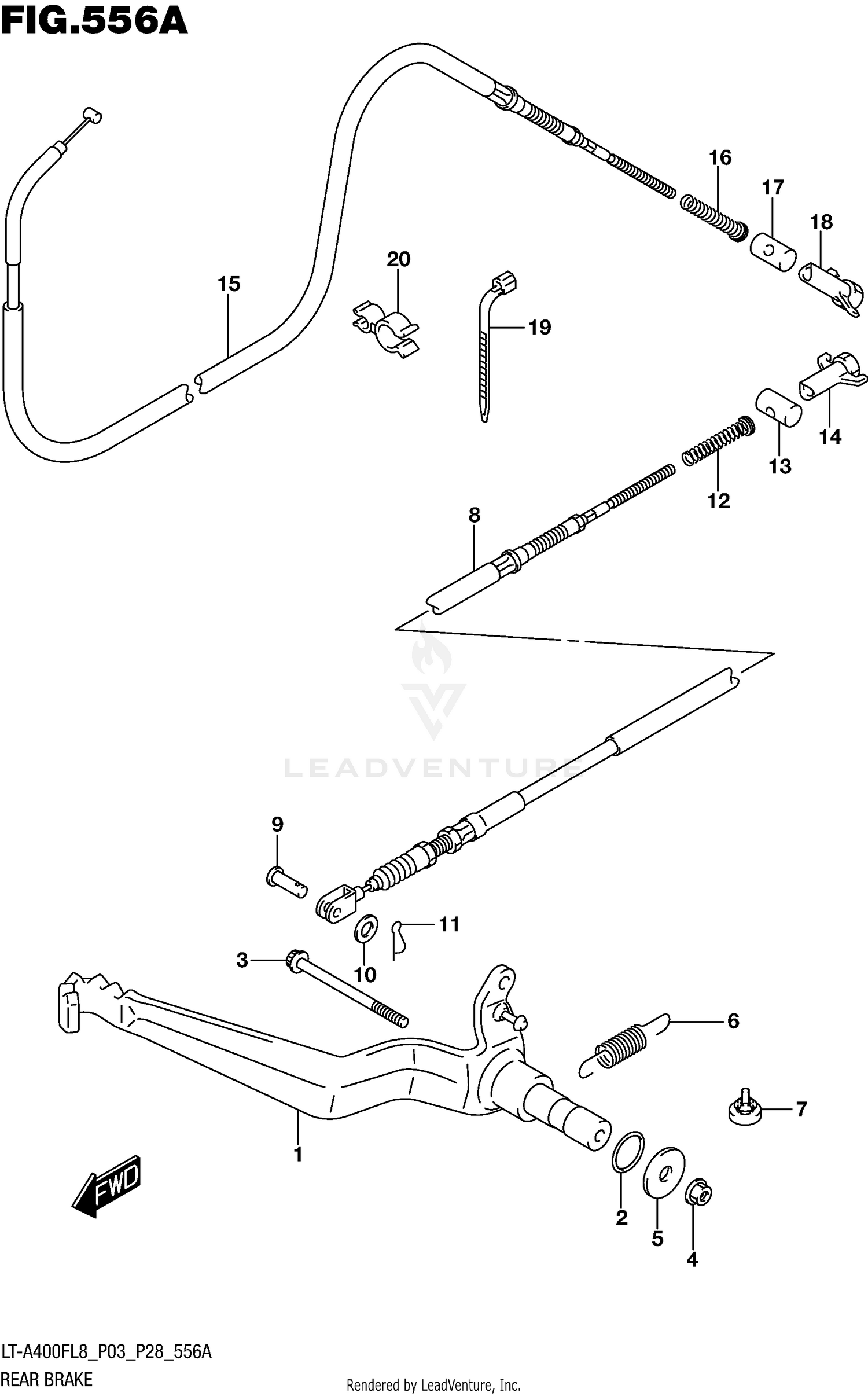

Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL,BRAKE
43110-27H00
|
$65.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING (D:2.4,ID:16.8)
09280-17002
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01550-0685A
|
$2.53 | ||
|
Unavailable |
|||
|
#4
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (6.5X28X1.6)
09160-06136
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
09443-12019
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09321-08022
Superseded by 09321-08026
|
$2.45 | ||
|
Unavailable |
|||
|
#8
CABLE,REAR BRAKE
58510-27H10
|
$63.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN (5.8X17.5)
09200-05001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLIP
09385-06012
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09440-08042
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
09209-13006
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09150-06015
|
$4.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CABLE,PARKING BRAKE
58810-27H10
Superseded by 58810-27H11
|
$65.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
09440-08042
|
$3.17 | ||
|
Unavailable |
|||
|
#17
PIN
09209-13006
|
$6.57 | ||
|
Unavailable |
|||
|
#18
NUT
09150-06015
|
$4.53 | ||
|
Unavailable |
|||
|
#19
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLAMP (D1:12,D2:8)
09408-00056
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
