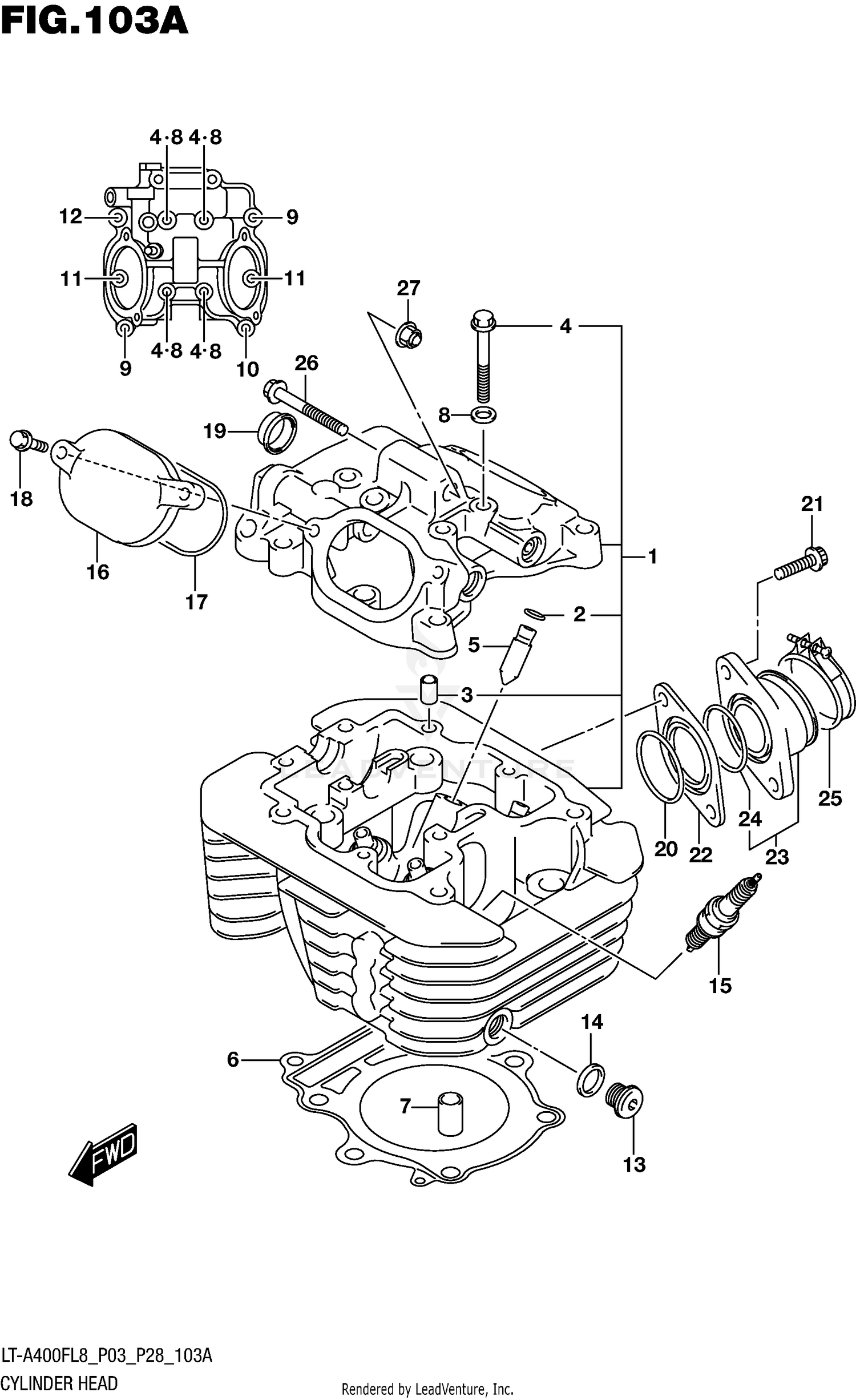

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-27H20
|
$1,281.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
.RING,SNAP (10X85)
09381-10004
|
$1.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
.PIN (8X11)
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BOLT (6X55)
09103-06102
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE,VALVE (OS:0.3)
11115-14D71
|
$44.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-38F00
|
$46.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN (10.4X13X22)
09206-13004
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT (6X35)
09103-06108
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X39)
09103-06026
|
$2.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG (L:12)
09248-12004
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET (12.1X16.2X3.7)
09168-12002
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15-1
SPARK PLUG (DENSO, IU22D)
09482-00553
|
$19.09 | ||
|
Unavailable |
|||
|
#15-2
SPARK PLUG (NGK, CR7EIA-9)
09482-00554
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#15-3
SPARK PLUG (DENSO, IU24D)
09482-00555
|
$23.03 | ||
|
Unavailable |
|||
|
#15-4
SPARK PLUG (NGK, CR8EIA-9)
09482-00556
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#15-5
SPARK PLUG (NGK, CR6EIA-9)
09482-00590
|
$18.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP,INSPECTION
11175-47D00
|
$27.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
.O RING,INSPECTION CAP
11177-14D01
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG (OD:30)
09241-25007
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (D:2.4,ID:39.7)
09280-40010
Superseded by 09280-40020
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
07120-0625A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
INSULATOR, INTAKE PIPE
13117-38F01
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE ASSY,INTAKE
13101-27H00
Superseded by 13101-27H01
|
$60.86 | ||
|
Available to order. Add to View Price |
|||
|
#24
.O RING
13118-38F00
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
09402-54208
|
$7.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT (8X60)
09103-08345
Superseded by 09103-08217
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
