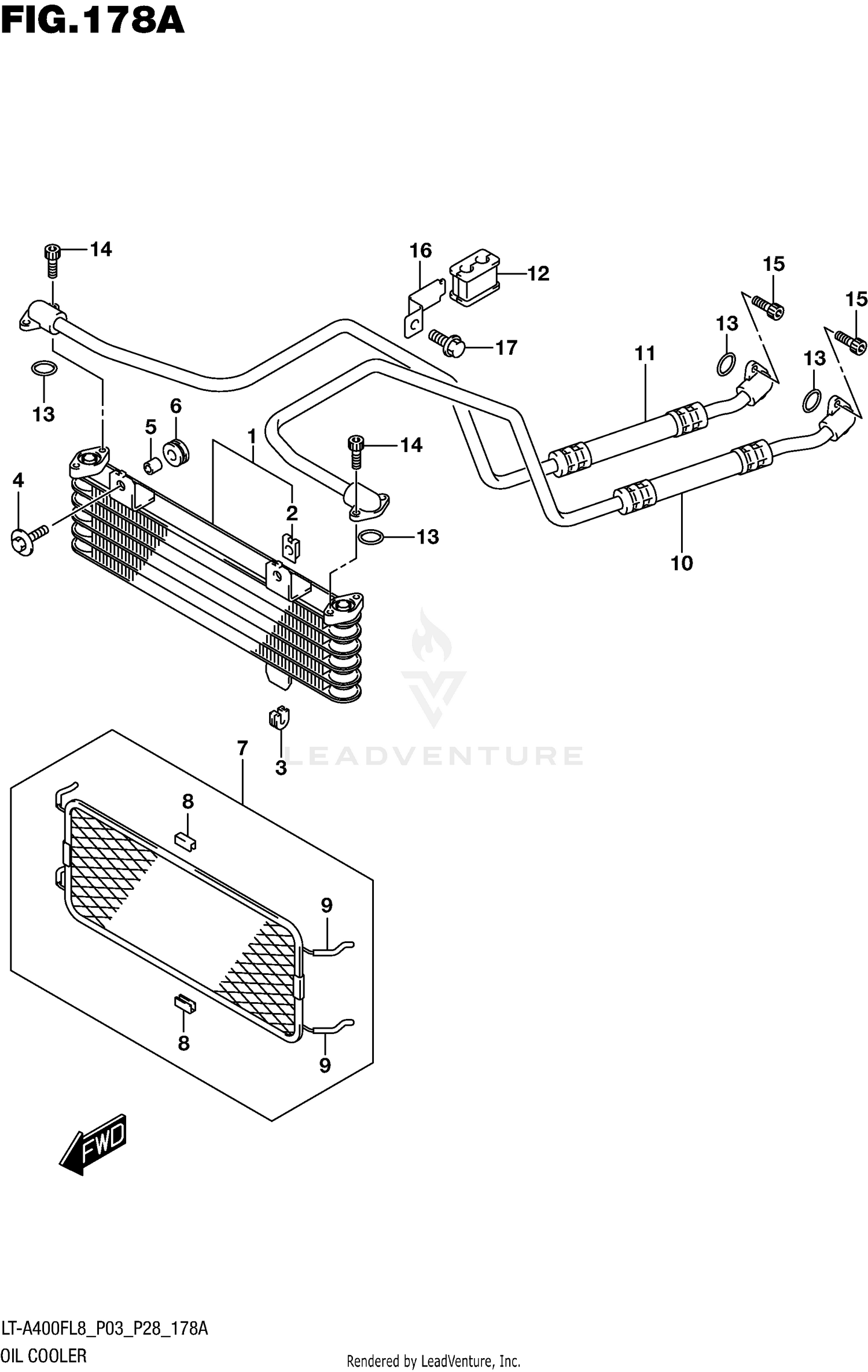

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY,OIL
16600-38F20
Superseded by 16600-38F22
|
$225.99 | ||
|
Unavailable |
|||
|
#2
.NUT,RADIATOR FAN
17802-14F00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,OIL COOLER,NO.2
16628-27A00
|
$3.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT (6X25)
09116-06093
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER (6.5X10X10)
09180-06310
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION (10X20X10)
09320-10015
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
GURD,OIL COOLER
16650-27H00
Superseded by 16650-27H01
|
$94.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
.PROTECTOR, CENTER
16654-27H00
|
$4.00 | ||
|
Unavailable |
|||
|
#9
.HOSE (3X5X600)
09352-30503-600
Superseded by 09352-30504-600
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE,OIL COOLER INLET
16460-38F10
|
$67.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE,OIL COOLER OUTLET
16470-38F10
|
$68.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET,OIL HOSE
16468-38F00
Superseded by 16468-38F01
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (D:2.4,ID:12.3)
09280-12008
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X16)
09106-06073
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP,OIL HOSE
16490-38F00
|
$5.39 | ||
|
Unavailable |
|||
|
#17
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
