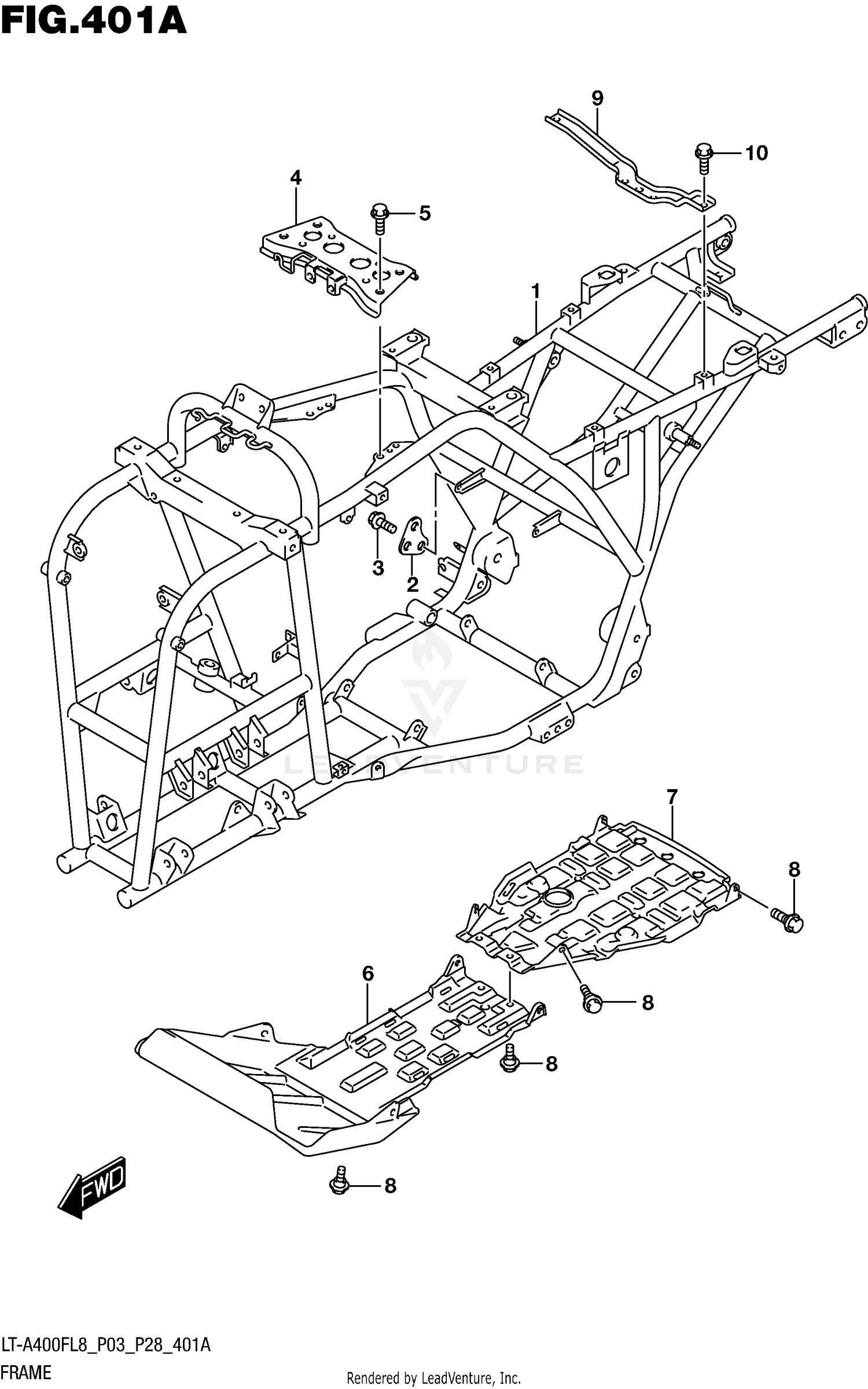

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-27H11-019
|
$1,775.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE,ENG MTG REAR,R
41981-38FA0
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X16)
09103-08441
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, ENG MTG UPPER
41990-27H10
|
$43.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (8X16)
09103-08441
|
$1.78 | ||
|
Unavailable |
|||
|
#6
PROTECTOR,FRONT
42521-27H00
Superseded by 42521-27H00-291
|
$155.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR,ENGINE
42511-38F02
Superseded by 42511-38F04
|
$37.61 | ||
|
Unavailable |
|||
|
#8
BOLT (6X12)
09111-06063
Superseded by 09111-06085
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,BATTERY
41561-27H00
|
$22.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
