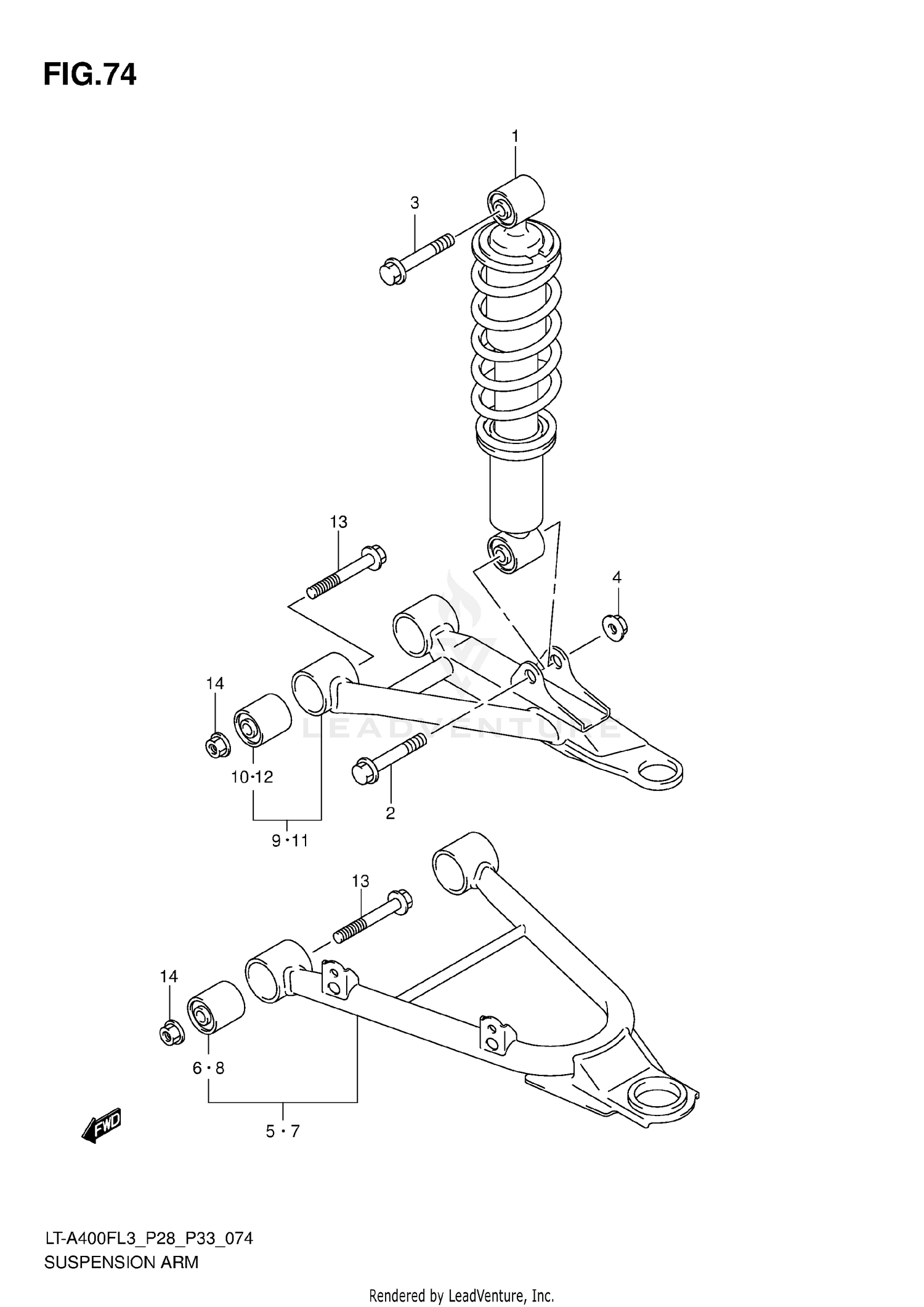

Suspension Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ABSORBER ASSY, FRONT SHOCK
52100-27H10-019
|
$178.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (10X48)
09103-10126
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (10X48)
09103-10352
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08319-3110A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM SET,SUSPENSION LOWER RH
52410-27820
|
$351.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
09319-10055
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM SET,SUSPENSION LOWER LH
52420-27820
|
$345.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#9
ARM SET,SUSPENSION UPPER,R
52430-27810
|
$332.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#11
ARM SET,SUSPENSION UPPER,L
52440-27810
|
$332.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#13
BOLT (10X60)
09103-10301
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
