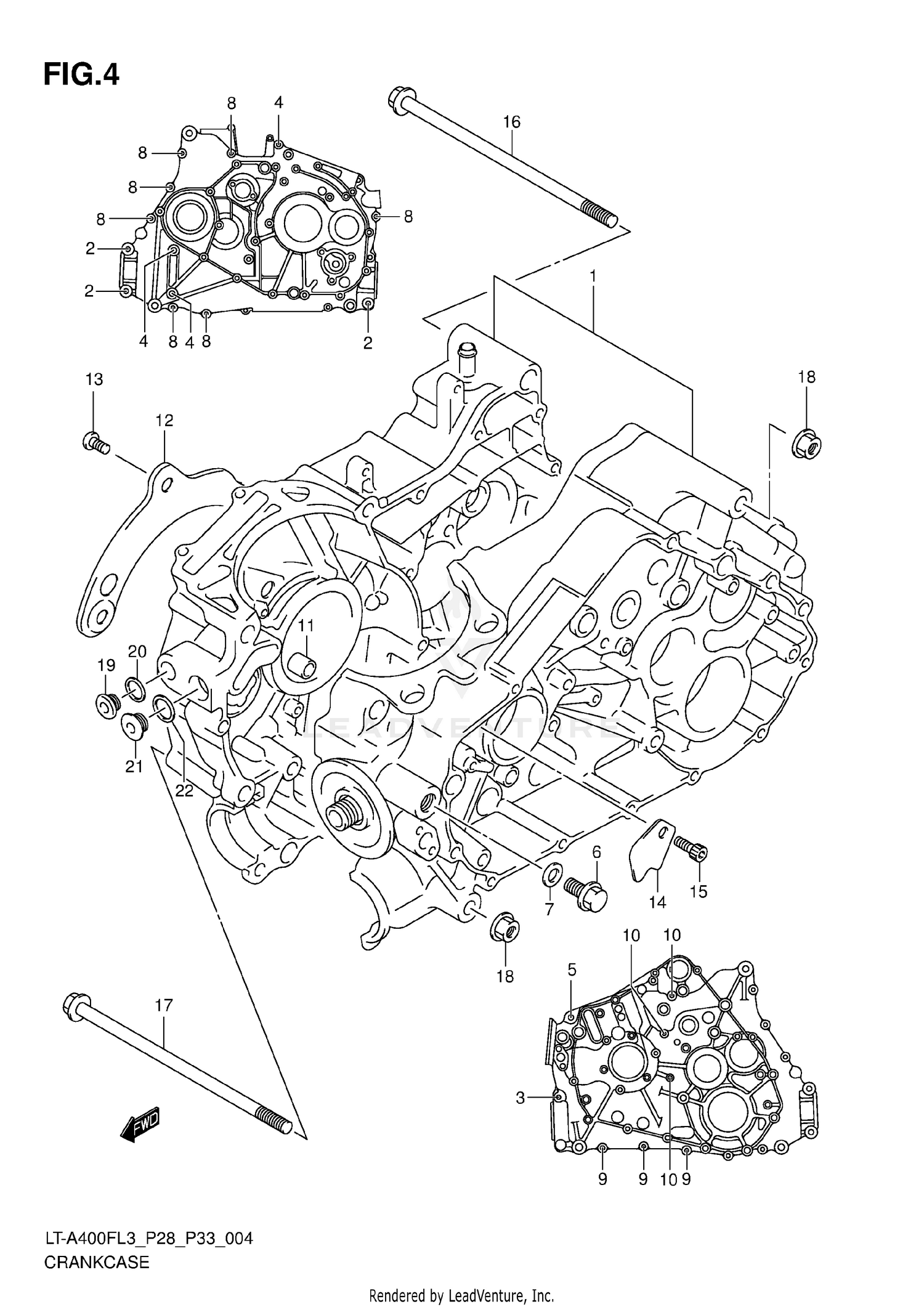

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11302-38812
|
$1,898.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT (8X50)
09103-08081
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BOLT (8X50)
09103-08081
|
$4.05 | ||
|
Unavailable |
|||
|
#4
BOLT (8X85)
09103-08300
|
$2.27 | ||
|
Unavailable |
|||
|
#5
BOLT (8X60)
09103-08217
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG (14X12)
09247-14015
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#8
BOLT
01547-0645A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0645A
|
$3.05 | ||
|
Unavailable |
|||
|
#10
BOLT
01547-0670A
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLATE, OIL GUIDE
11317-38F00
|
$4.42 | ||
|
Unavailable |
|||
|
#13
SCREW
02112-0612A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE,OIL GUIDE,L
11323-38F00
|
$2.48 | ||
|
Unavailable |
|||
|
#15
SCREW
02112-0612A
|
$1.78 | ||
|
Unavailable |
|||
|
#16
BOLT (10X195)
09103-10118
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (10X180)
11611-03G00
|
$24.83 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG (16X8)
09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET (16X22X2)
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG (18X8)
09248-18011
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET (18X24X2)
09168-18009
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
