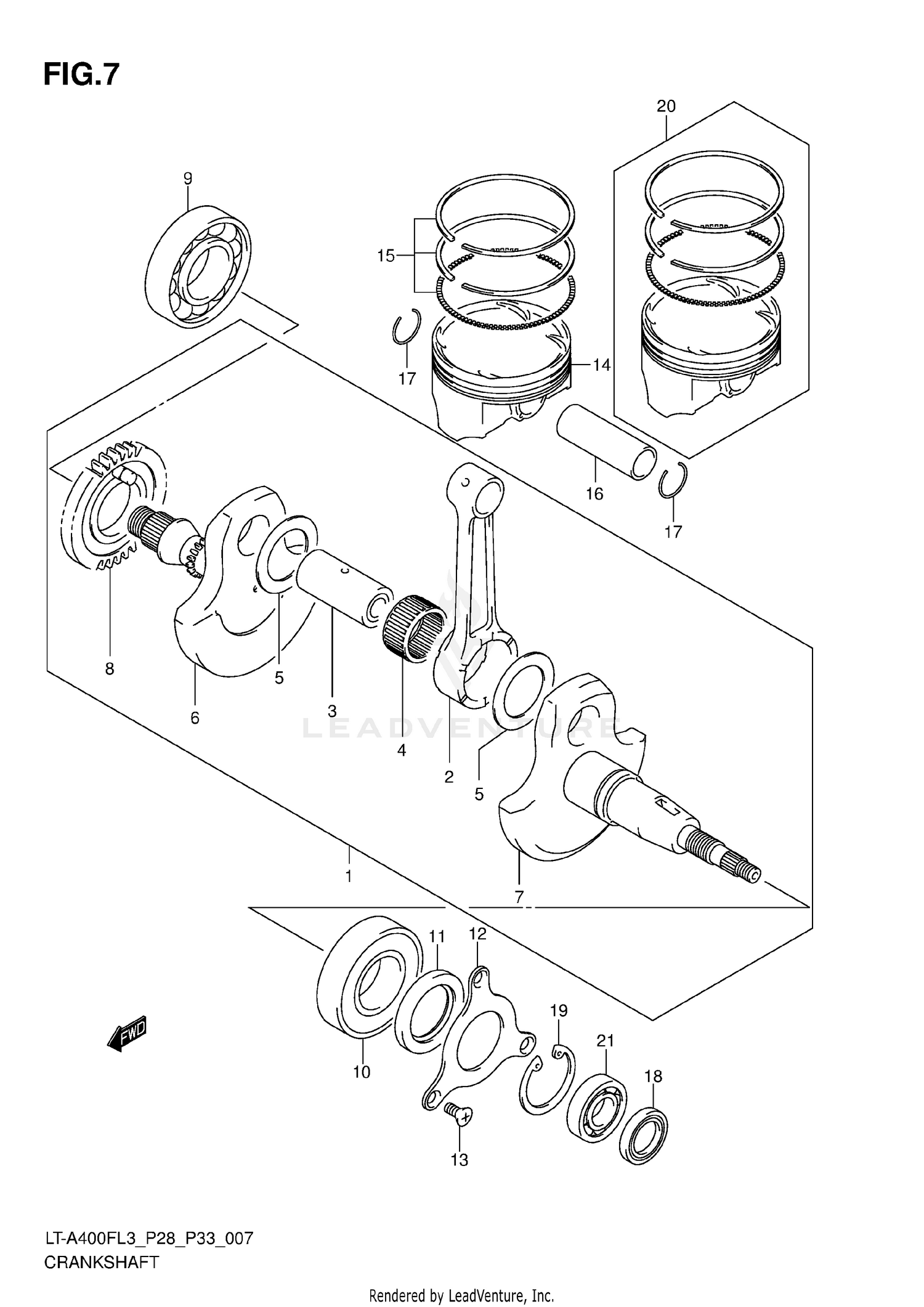

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12201-38821
|
$1,119.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNROD
12161-14D00
|
$168.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CRANK
12210-38F00
|
$74.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (34X43X22)
09263-34005
|
$87.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (34X52X1)
09160-34003
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT, RH (NT:24)
12220-38F12
|
$225.04 | ||
|
Unavailable |
|||
|
#7
CRANKSHAFT, LH
12260-38F10
|
$343.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, CRANK BALANCER DRIVE (NT:37)
12661-38F01
|
$140.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (35X72X17)
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING (35X72X17)
09262-35067
|
$97.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (34X52X6)
09282-34001
|
$41.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
RETAINER, CRANKSHAFT OIL SEAL MIDDLE
12541-38F00
|
$7.37 | ||
|
Unavailable |
|||
|
#13
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON
12111-38F21-0F0
|
$122.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING SET, PISTON (STD)
12140-38F10
|
$68.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,PISTON
12151-24A00
|
$28.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
09381-20004
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
OIL SEAL (25X42X6)
09283-25095
|
$33.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
08331-41479
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
PISTON SET,OS0.5 (OS:0.5)
12100-38F21-050
|
$196.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING (25X47X8)
09262-25006
|
$32.19 | ||
|
Available to order. Add to View Price |
|||
