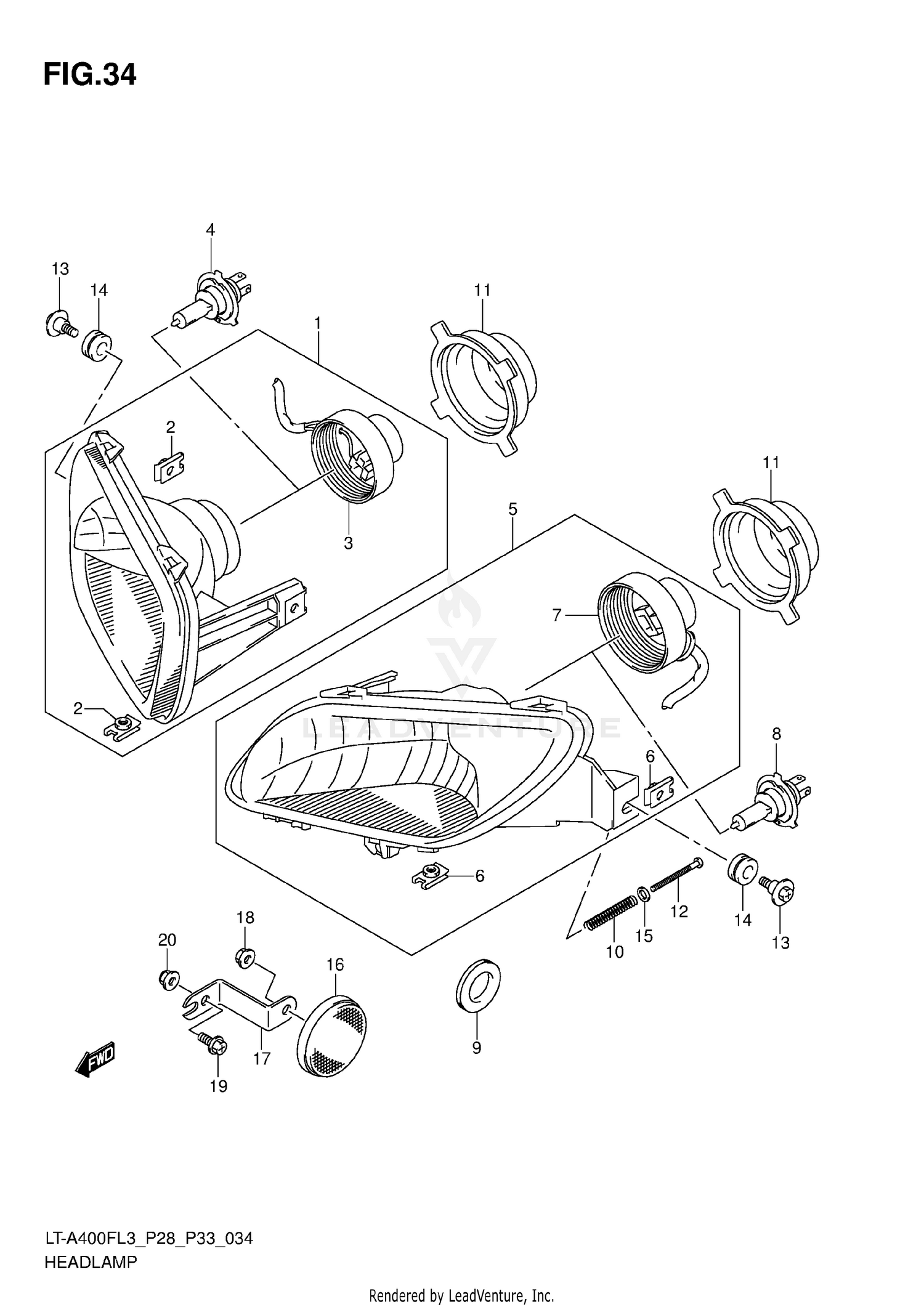

Headlamp (lt-a400fl3 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY, RH
35100-31G92-999
|
$130.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT (M6)
35157-31G90
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
CORD ASSY, RH
35171-31GM1
|
$33.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V,35/35W)
09471-12101
|
$84.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
HEADLAMP ASSY, LH
35300-31G92-999
|
$130.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT (M6)
35157-31G90
|
$7.04 | ||
|
Unavailable |
|||
|
#7
CORD ASSY, LH
35171-31GH1
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V,35/35W)
09471-12101
|
$84.80 | ||
|
Unavailable |
|||
|
#9
GROMMET
09308-07011
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, HEADLAMP ADJUST
35154-31300
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,HEADLAMP HOUSING
35174-31G00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (4X50)
09125-04031
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X22.5)
09139-06118
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-10501
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-0104A
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,FRONT SIDE RR
35956-27H00
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08316-1005B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02162-0516B
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08319-3105B
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
