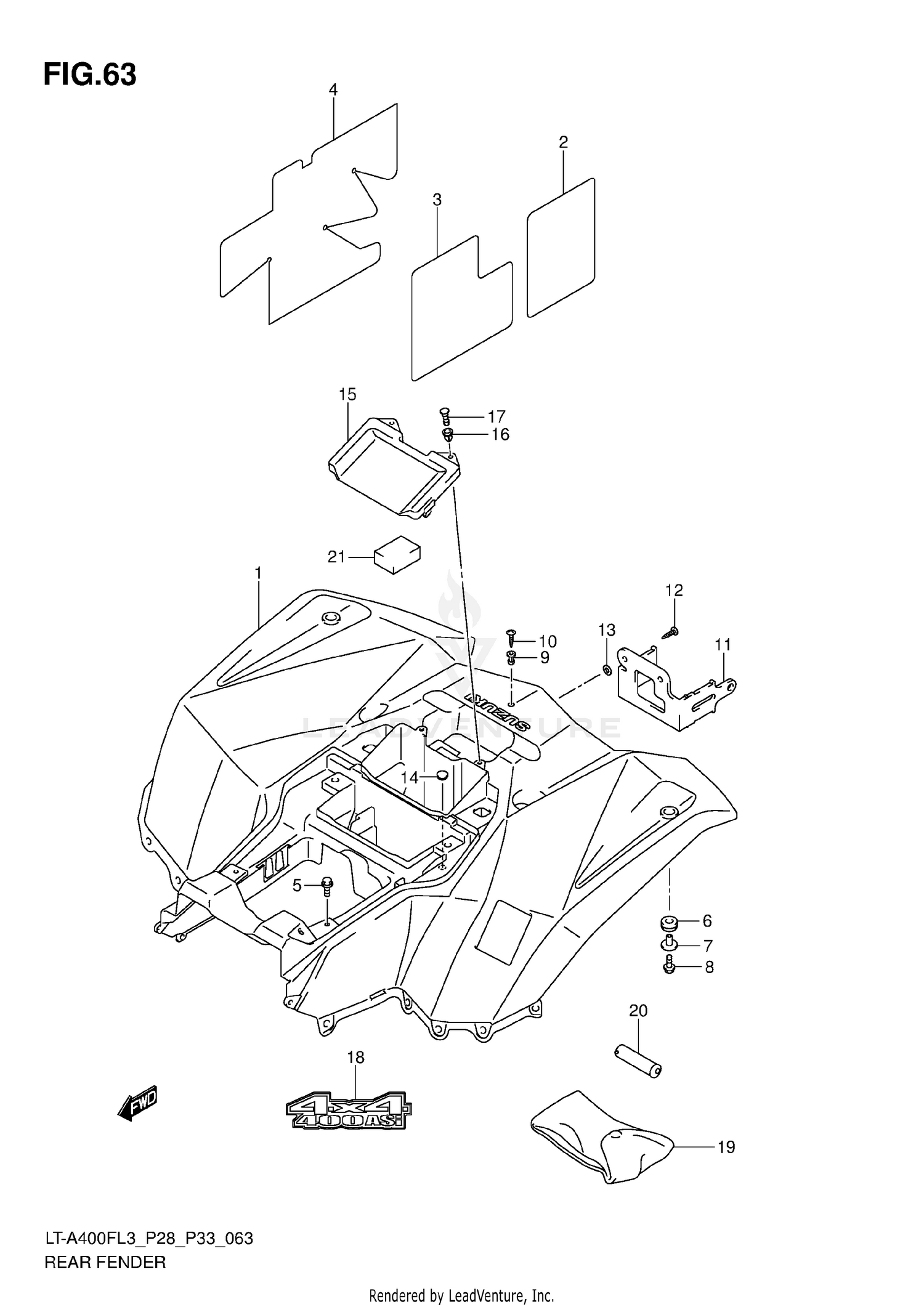

Rear Fender (lt-a400fl3 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,REAR (RED)
63111-27H02-YT9
Superseded by 63111-27H03-YT9
|
$367.95 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER,REAR (GREEN)
63111-27H02-YLG
Superseded by 63111-27H03-YLG
|
$355.02 | ||
|
Unavailable |
|||
|
#1
FENDER, REAR (BLACK)
63111-27H02-YLZ
|
|||
|
Unavailable |
|||
|
#1
FENDER, REAR (YELLOW)
63111-27H02-YU1
|
|||
|
Unavailable |
|||
|
#2
SHIELD, REAR FENDER
63122-27H10
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIELD, REAR FENDER
63123-27H10
Superseded by 63123-27H20
|
$17.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIELD, REAR FENDER
63124-27H10
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X16)
09116-06006
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION (11.5X32X12.2)
09320-11021
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09169-06074
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-05019
|
$8.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
02142-0520B
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLATE,CDI UNIT
47413-27H00
|
$14.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET
09229-04020
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08322-0104A
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP (OD:16)
09250-08018
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, REAR FENDER
63112-27H00
|
$40.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
09409-08329
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUNGER
09409-08330
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
EMBLEM,RR FENDE
68171-27HE0-JLJ
Superseded by 68171-27HE1-JLJ
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
TOOL ASSY
09800-21055
Superseded by 09800-21102
|
$25.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
GAUGE ASSY,AIR PRESSUR
96200-18A02
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION, TOOL
45146-31G10
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
