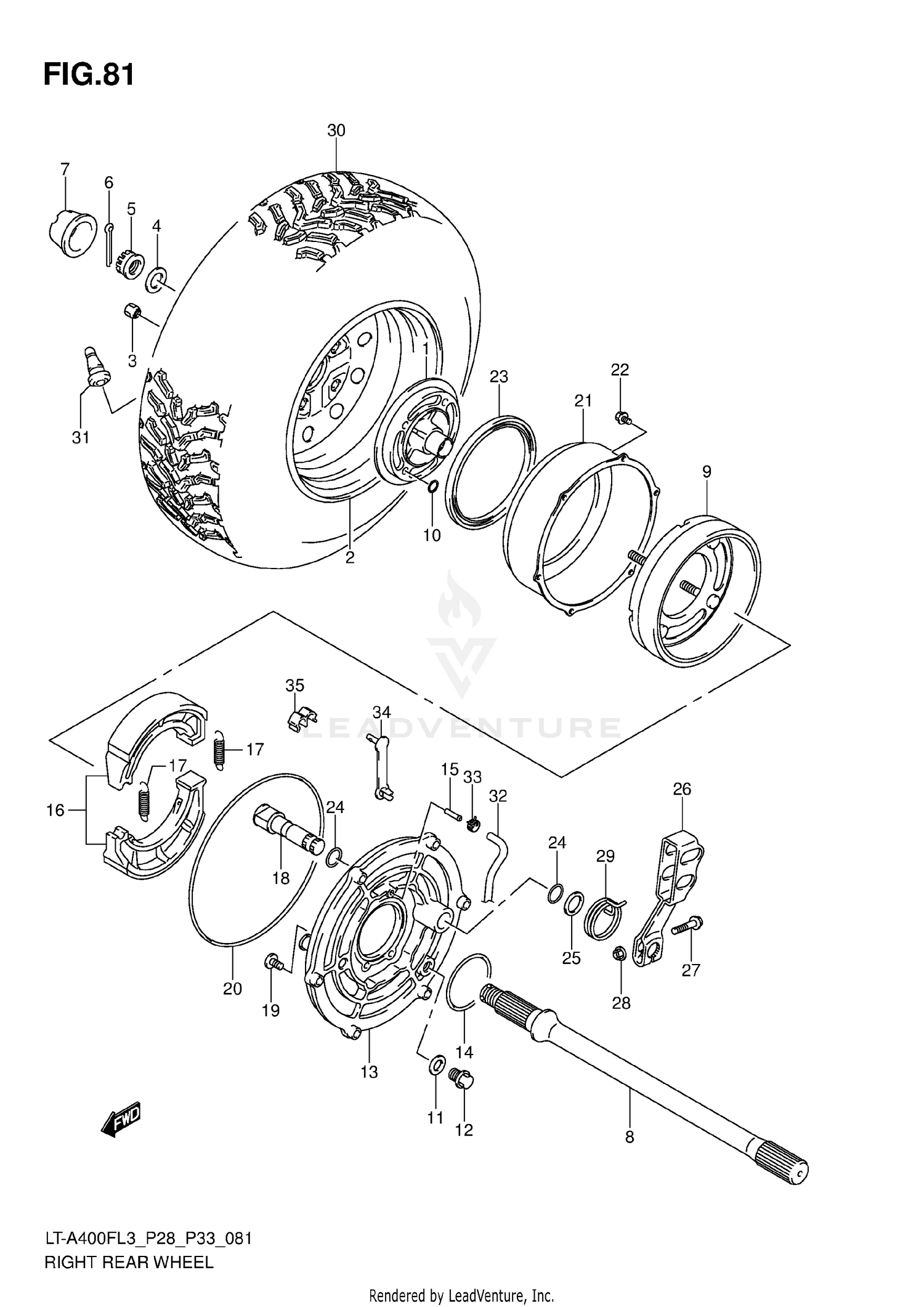

Right Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,REAR,R
64111-38F32
|
$193.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM, REAR WHEEL (12X7.5AT) (BLACK)
65310-38F40-291
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
09140-10021
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,HUB
64723-38F00
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09141-20008
|
$23.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
COTTER PIN
04111-4035A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,WHEEL CENTER
54725-09F01
|
$12.86 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
AXLE,REAR,R
64711-38F20
|
$146.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
DRUM, REAR BRAKE
64120-38F00
|
$326.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (D:1.9,ID:9.8)
09280-10016
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (10X17X2)
09161-10007
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG (10X12)
09247-10008
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
PANEL, REAR BRAKE ANCHOR
64210-38F10
|
$56.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
09280-63001
Superseded by 09280-63005
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
UNION
09364-04004
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHOE SET, REAR BRAKE
64400-38830
|
$63.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SHOE
55420-30000
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAM,REAR BRAKE
64440-09F00
|
$31.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (8X20)
09106-08161
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING (D:3.7,ID:186)
09280-00038
|
$19.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
COVER, REAR BRAKE DRUM
64123-38F00
|
$133.27 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, REAR BRAKE DRUM COVER
64124-38F00
|
$179.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
O RING, REAR BRAKE CAM DUST
64443-18A00
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (16X26X1)
09160-16033
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER, REAR BRAKE CAM
64451-09F00
|
$38.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
01550-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SPRING, REAR BRAKE CAM LEVER
64484-38F00
|
$11.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
TIRE, REAR (AT25X10-12)
65110-38FC0
Superseded by 65110-31G30
|
$326.72 | ||
|
Available to order. Add to View Price |
|||
|
#31
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HOSE, REAR BRAKE BREATHER
64275-27H00
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
09401-06405
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP (L:33)
09407-03401
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
09408-00200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
