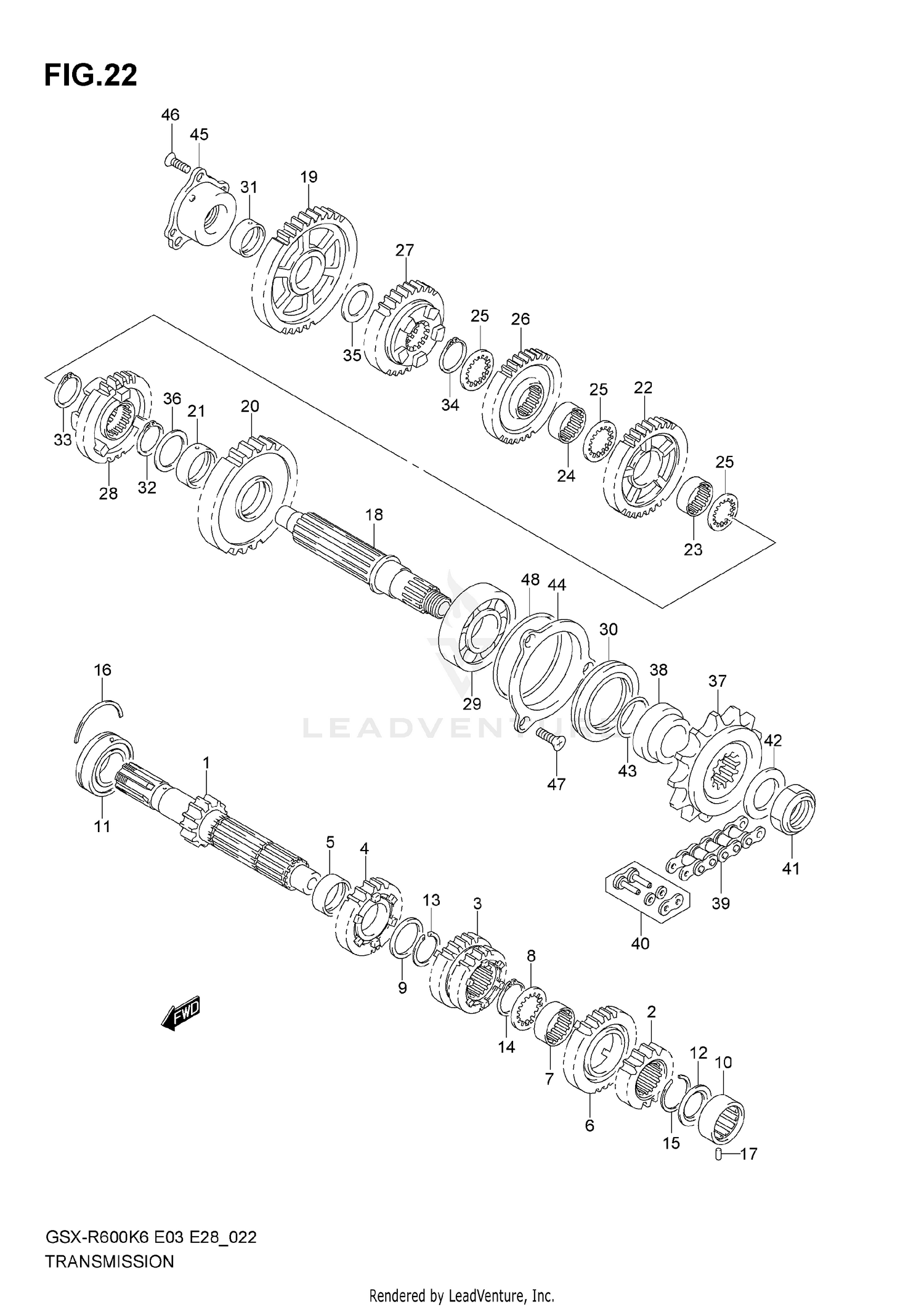

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:14)
24120-01H00
|
$304.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR,2ND DRIVE (NT:19)
24221-35F00
|
$131.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,3RD & 4TH DRIVE (NT:21/2
24231-01H00
|
$235.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 5TH DRIVE (NT:23)
24251-01H00
|
$189.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH 5TH DRIVE GEAR
24252-35F00
|
$27.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR,6TH DRIVEN (NT:24)
24261-01H00
Superseded by 24261-01H01
|
$189.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR,6TH DRIVEN (NT:24)
24261-01H01
|
$189.32 | ||
|
Unavailable |
|||
|
#7
BUSH, 6TH DRIVE GEAR
24262-35F00
|
$32.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, 6TH DRIVE
09167-27001
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, 5TH DRIVE
09160-27008
|
$4.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BEARING, CNTR LH
09263-20087
|
$54.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CNTR RH
09262-25150
|
$89.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, OIL (20X31.2X2.7)
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP, 5TH DRIVE
09380-27006
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP, 6TH DRIVE
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#15
CIRCLIP, 2ND DRIVE
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
C RING
09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COUNTER SHAFT, LH
09261-06003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, DRIVE
24131-01H00
Superseded by 24131-01H01
|
$363.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR,1ST DRIVEN (NT:39)
24311-35F20
|
$180.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR,2ND DRIVEN (NT:39)
24321-35F10
Superseded by 24321-35F11
|
$152.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, 2ND DRIVEN
24322-35F00
|
$23.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR,3RD DRIVEN (NT:36)
24331-40F20
Superseded by 24331-40F30
|
$188.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, 3RD DRIVEN
24262-17E01
|
$43.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH, 4TH DRIVEN GEAR
24262-17E01
|
$43.59 | ||
|
Unavailable |
|||
|
#25
WASHER, 3RD & 4TH DRIVEN
24333-02F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR,4TH DRIVEN (NT:36)
24341-40F20
|
$196.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, 5TH DRIVEN (NT:31)
24351-01H00
Superseded by 24351-01H01
|
$171.01 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, 5TH DRIVEN (NT:31)
24351-01H01
|
$171.01 | ||
|
Unavailable |
|||
|
#28
GEAR, 6TH DRIVEN (NT:26)
24361-01H00
|
$196.77 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, DRIVE SHAFT, LH
09262-28045
|
$113.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL, DRIVE SHAFT, OIL
09283-42017
|
$55.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH, 1ST DRIVEN GEAR
09300-22008
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP, 2ND DRIVEN GEAR
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#33
CIRCLIP, 3RD DRIVEN GEAR
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#34
CIRCLIP, 4TH DRIVEN GEAR
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#35
WASHER, 1ST DRIVEN LH
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, 2ND DRIVEN
09160-27008
|
$4.01 | ||
|
Unavailable |
|||
|
#37
SPROCKET, ENGINE (NT:16)
27510-20A10
|
$82.08 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPACER, ENGINE SPROCKET
27531-01H00
|
$45.92 | ||
|
Available to order. Add to View Price |
|||
|
#39
CHAIN ASSY (RK 525SMOZ8)
27600-06G30-114
Superseded by 27600-06G40-114
|
$221.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
JOINT SET
27620-06G00
|
$24.27 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, ENGINE SPROCKET
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER (25X41X3)
09160-25009
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#43
O RING (D:2.4,ID:23.7)
09280-24010
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#44
RETAINER, DRIVE SHAFT, L
24751-01H00
Superseded by 24751-01H10
|
$143.24 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOUSING, DRIVE SHAFT, SET
24771-01810
|
$187.46 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW, DRIVE SHAFT (6X20)
09139-06159-A05
Superseded by 09139-06159
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW, DRIVE SHAFT (6X20)
09139-06159-A05
Superseded by 09139-06159
|
$4.47 | ||
|
Unavailable |
|||
|
#48
O RING
09280-68009
|
$26.15 | ||
|
Available to order. Add to View Price |
|||
