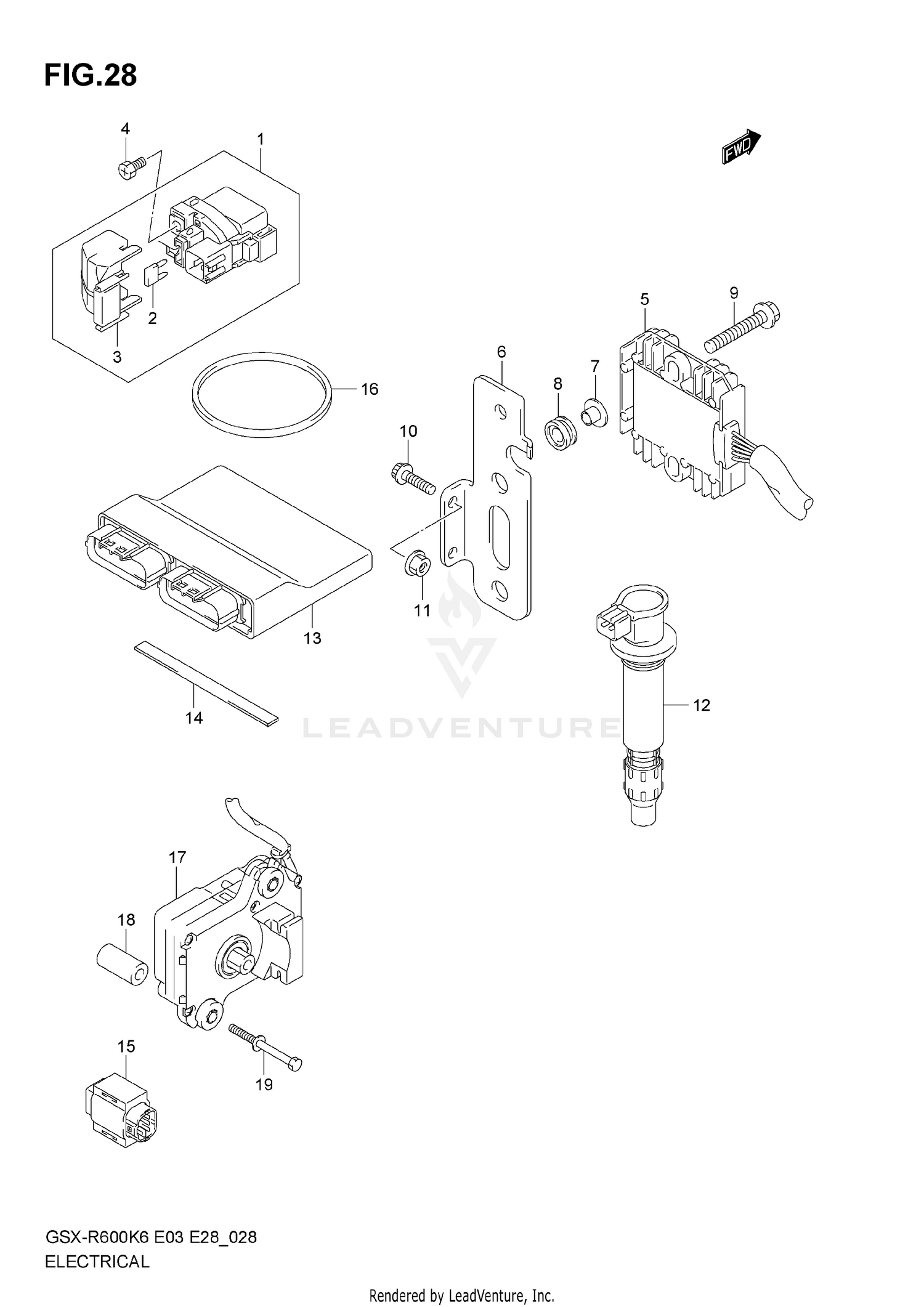

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-41G00
Superseded by 31800-41G10
|
$118.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (30A)
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, STARTER
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-02H00
Superseded by 32800-21H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, RECT FTG
32830-01H00
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
09180-06325
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, RECT FTG BRKT
09320-08072
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, RECTIFIER
02162-0630A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BRKT
07120-0616A
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, RECTIFIER
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COIL ASSY, IGNITION
33410-29G00
|
$194.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONTROL UNIT, FI
32920-01H10
|
$1,793.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (10X130X2)
33652-42F00
|
$2.03 | ||
|
Unavailable |
|||
|
#15
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING (D:3.5,ID:76)
09280-76005
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
ACTUATOR ASSY
33970-41G00
Superseded by 33970-41G02
|
$638.60 | ||
|
Unavailable |
|||
|
#18
SPACER, ACTUATOR (6.2X14.5X26)
09180-06345
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01560-0650A
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
