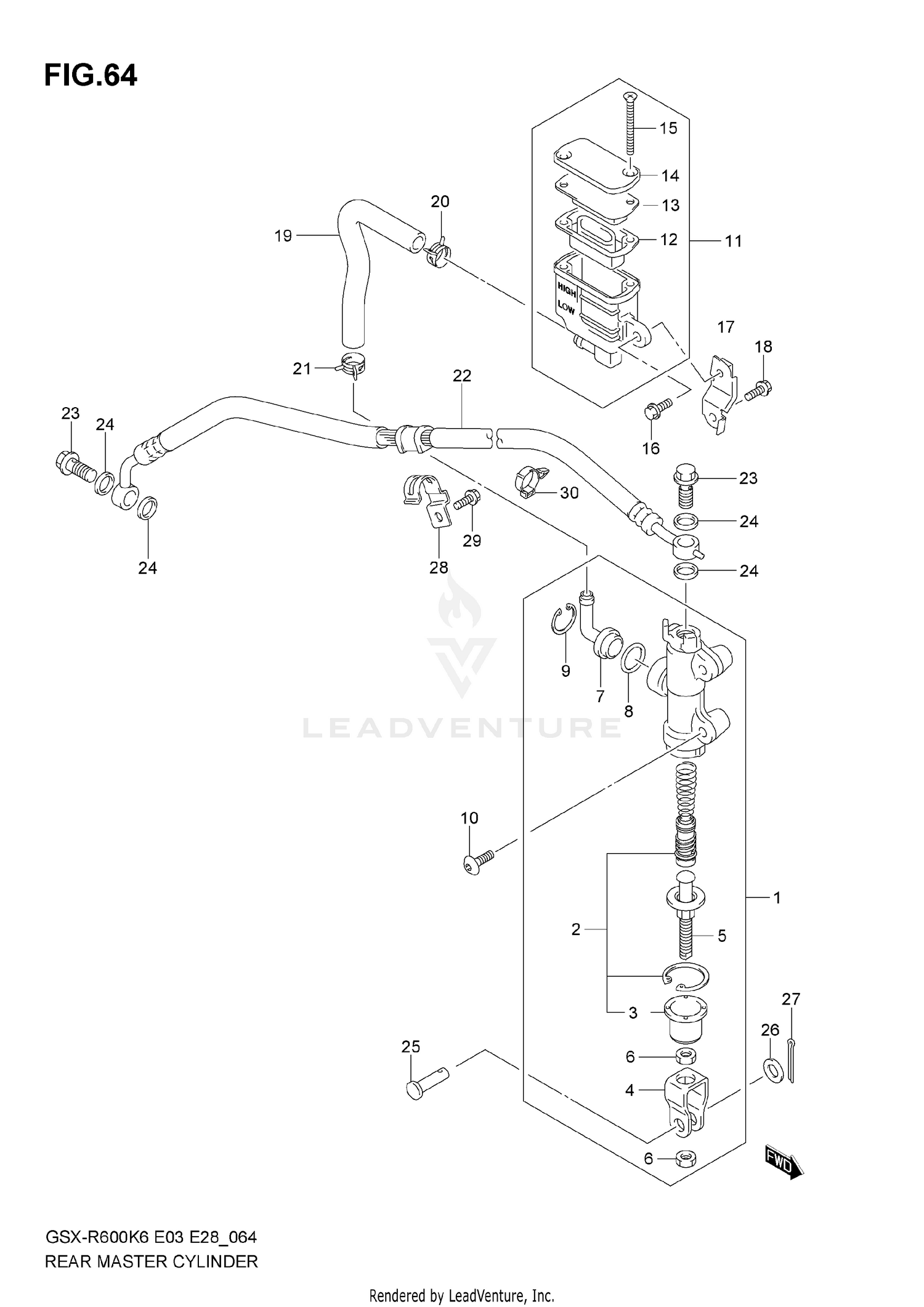

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-01H00
|
$335.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
69600-34820
Superseded by 69600-34821
|
$34.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
69691-00A00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
YOKE
69692-27A30
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, PUSH
69670-48B00
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
69693-05A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR
69672-00B20
|
$9.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O RING
69686-34200
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CIRCLIP
69674-00B20
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09139-06125
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK ASSY,RESERVOIR
69740-01H00
Superseded by 69740-18K00
|
$36.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
69667-01H00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
69668-01H00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP
69669-01H00
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
69689-01H00
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, RESERVOIR TANK
01547-0612A
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BRACKET, RR RESERVOIR TANK
69750-01H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BRACKET
01547-0612A
|
$2.53 | ||
|
Unavailable |
|||
|
#19
HOSE, RESERVOIR TANK
69730-01H00
|
$27.57 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP (ID:11.1)
09401-12404-C02
Superseded by 09401-12404
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09401-15407-A05
Superseded by 09401-15407
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE
69480-01H00
Superseded by 69480-01H01
|
$110.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
UNION
09360-10040-A08
Superseded by 09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN (6X18.2)
09200-06037-A05
Superseded by 09200-06068
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
08322-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP, RR BRAKE HOSE
69268-01H00
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
01547-0612A
|
$2.53 | ||
|
Unavailable |
|||
|
#30
GUIDE, RR BRAKE HOSE
09403-17306
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
