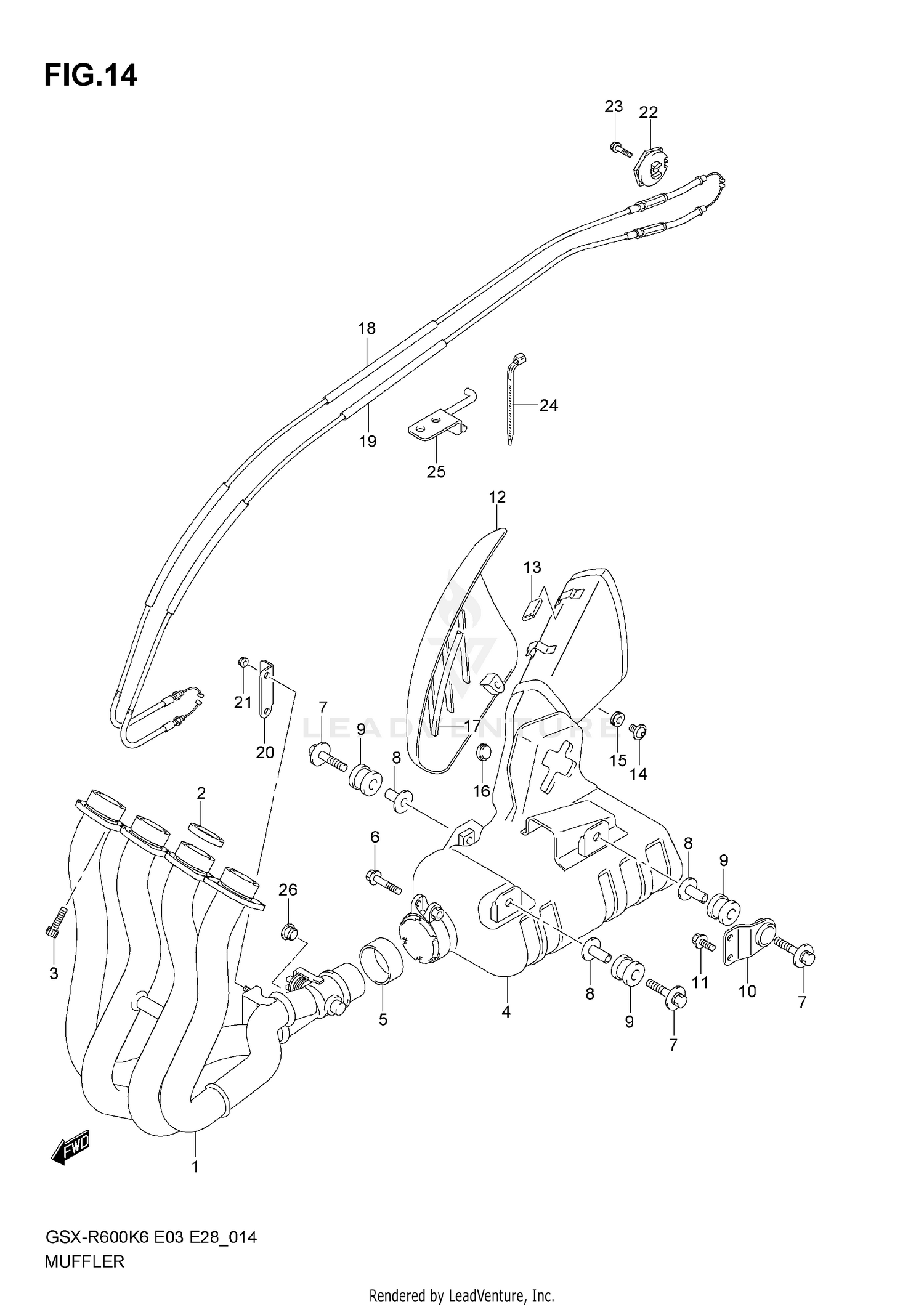

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
14100-01H00-E00
Superseded by 14100-01H00
|
$833.24 | ||
|
Unavailable |
|||
|
#1
PIPE,EXHAUST
14100-01H10-E00
Superseded by 14100-01H10
|
$850.25 | ||
|
Unavailable |
|||
|
#2
GASKET,EXHAUST
14181-46E00
Superseded by 14181-46E10
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07130-0825A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUFFLER
14200-01H00-H01
|
$1,491.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONNECTOR, MUFFLER
14771-24F00
Superseded by 14771-24F01
|
$34.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
09103-08392
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09118-08152-A05
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER, MUFFLER SUPPORT
09180-08152-A05
Superseded by 09180-08152
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-12048
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET
14770-01H00
|
$28.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07120-0816A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER,MUF
14780-01H00-E00
Superseded by 14780-01H01
|
$245.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
14795-10FA0
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
09139-06128
|
$7.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
.CUSHION (8.4X18X6)
09320-08066
|
$10.34 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CUSHION
09321-10018
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
47315-90100
|
$4.67 | ||
|
Unavailable |
|||
|
#18
CABLE,EXH VALVE
11276-01H00-E00
Superseded by 11276-01H01
|
$109.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE,EXH VALVE
11276-01H01-E00
Superseded by 11276-01H01
|
$109.02 | ||
|
Unavailable |
|||
|
#19
CABLE,EXH VALVE
11277-01H00-E00
Superseded by 11277-01H01
|
$109.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE,EXH VALVE
11277-01H01-E00
Superseded by 11277-01H01
|
$109.02 | ||
|
Unavailable |
|||
|
#20
BRACKET
14250-01H00
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PULLEY, CONTROLLER
11269-18G00
Superseded by 11269-18G01
|
$32.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
07120-0516A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET
14610-01H00
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG (18X8)
09248-18005
Superseded by 09248-18011
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
