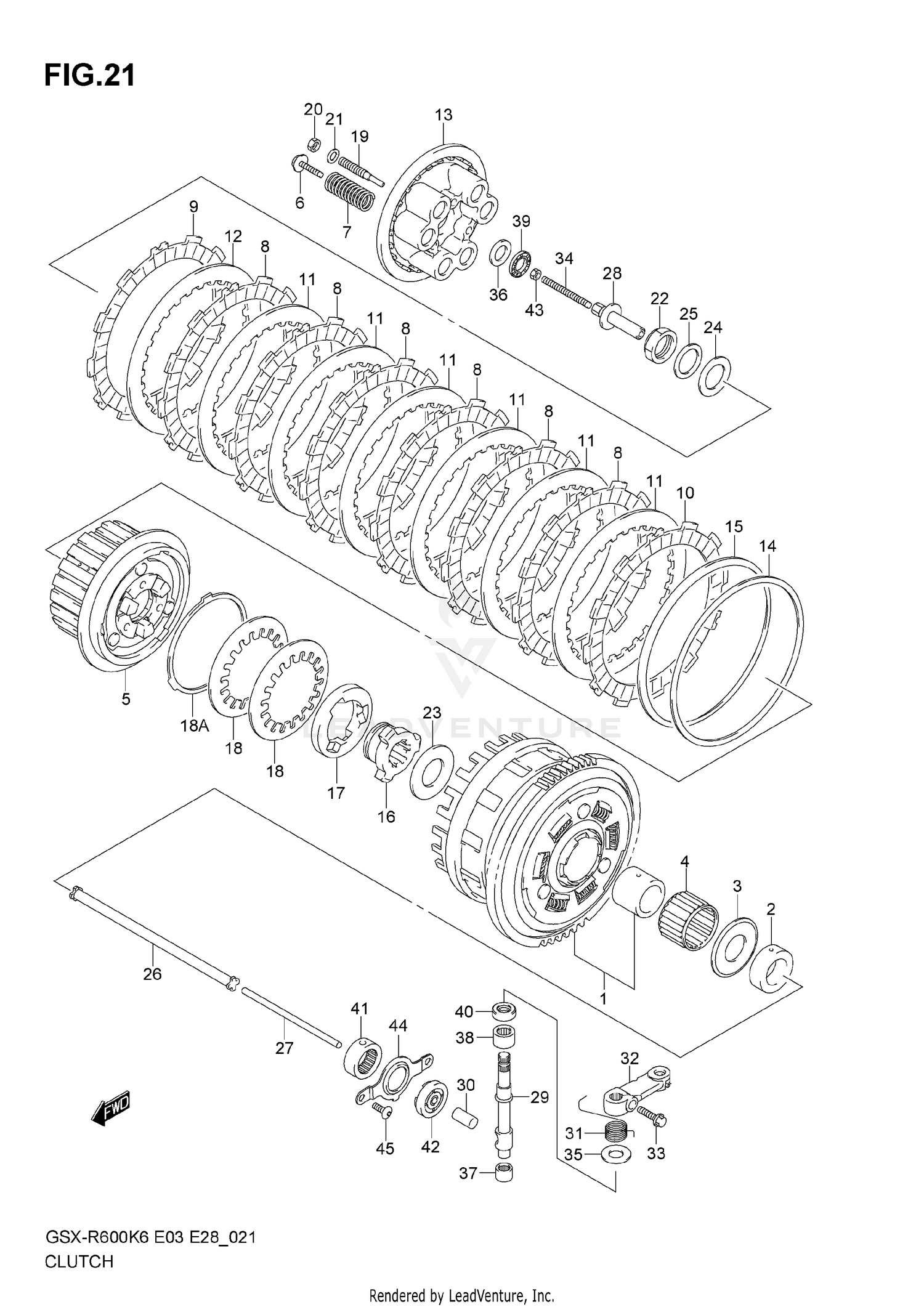

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-01810
Superseded by 21200-01820
|
$561.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, OIL PUMP DRIVE
21253-01H00
|
$46.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (25X54X2.4)
09160-25073
|
$15.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (35X40X26.8)
09263-35015
|
$30.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, CLUTCH SLEEVE
21410-41G10
|
$263.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CLUTCH SPRING
21482-41G00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, CLUTCH
21413-01H00
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH DRIVE NO.1
21441-36F30
|
$37.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,CLUTCH DRIVE NO.1 (T:2.
21441-36F20
Superseded by 21441-36F50
|
$36.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVE NO.3
21442-41G10
Superseded by 21442-41G00
|
$36.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH DRIVEN NO.1
21451-41G20
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, CLUTCH DRIVEN NO.2
21451-41G00
|
$18.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISC,CLUTCH PRESSURE
21462-41G00
|
$88.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT,WAVE WASHER
21471-41G00
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CLUTCH PLATE WAVE
21472-41G10
|
$27.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAM, CLUTCH DRIVE
21611-41G10
|
$126.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAM,CLUTCH DRIVEN
21612-41G10
|
$133.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER,CAM REACTION WAVE
21621-41G00
|
$19.69 | ||
|
Available to order. Add to View Price |
|||
|
#18A
WASHER,CAM REACTION SEAT
21624-41G00
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
LIFTER, CLUTCH PRESSURE DISC
21622-41G00
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CL PRESS DISC
21623-41G00
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (8X14X1.0)
09181-08139
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CLUTCH SLEEVE HUB
09159-24010
|
$16.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER (25X50X2.5)
09160-25056
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (24.2X35X2)
09164-24006
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SLEEVE HUB NUT
09160-25077
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROD, CLUTCH PUSH RH
23110-38B00
|
$29.93 | ||
|
Available to order. Add to View Price |
|||
|
#27
ROD,CLUTCH PUSH LH
23111-35F00
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIECE, CLUTCH PUSH
23121-41G00
|
$55.33 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAMSHAFT,CLUTCH RELEASE
23122-41G00-A05
Superseded by 23122-41G00
|
$64.23 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAP, CLUTCH PUSH ROD
23123-41G00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, CLUTCH RELEASE
23125-41G00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
ARM, CLUTCH RELEASE
23271-41G20
Superseded by 23271-41G21
|
$60.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, CL RELEASE
09103-06223
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, CLUTCH PUSH
09134-06015-A05
Superseded by 09134-06015
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER (10.5X24X1)
09160-10020-A05
Superseded by 09160-10020
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, CLUTCH PUSH
09160-15045
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, CL CAM SHAFT
09263-10014
|
$16.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BEARING, CL RLSE CAM
09263-12027
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING, CL PUSH PIECE
09263-15003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#40
OIL SEAL (10X20X6)
09282-10012
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#41
SEAL, CLUTCH PUSH ROD
09285-06011
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#42
OIL SEAL (10X17X5)
09285-10004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, CLUTCH RELEASE
08310-0006A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
RETAINER,CL PUSH ROD OIL SEAL
24741-01H00-A05
Superseded by 24741-01H00
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW, PUSH ROD
09139-06153
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
