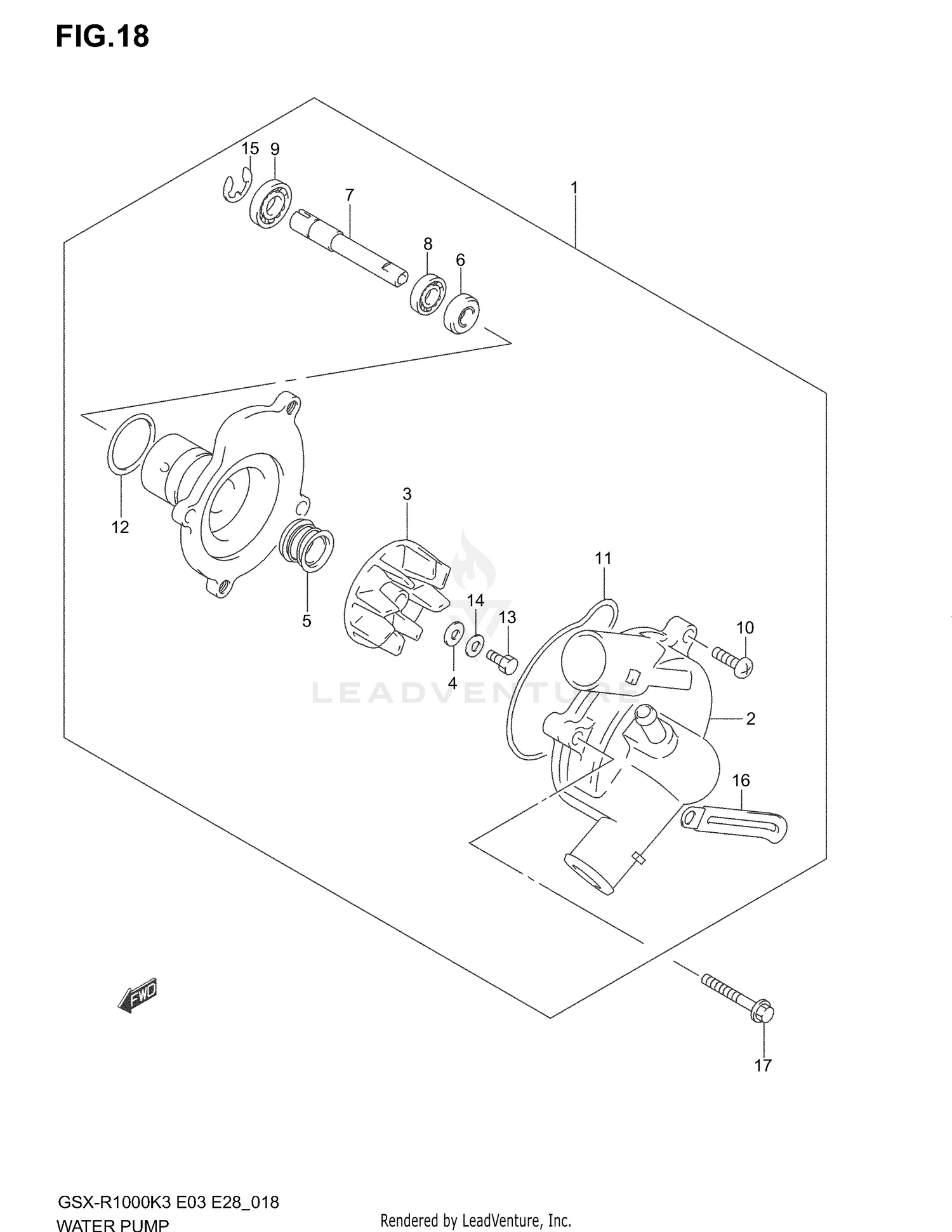

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, WATER
17400-40F00
|
$447.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE, WATER PUMP
17411-40F00
|
$166.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
IMPELLER
17491-40F00
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
09168-06025
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
17419-29F00
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT
17511-40F00
|
$75.14 | ||
|
Unavailable |
|||
|
#8
BEARING (10X26X8)
09262-10014
|
$20.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (12X28X8)
09262-12001
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING
17418-40F00
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
O RING
17435-40F00
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X13)
09100-06099
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK WASHER
09164-06006
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
E-RING, BUSH
08332-11093
Superseded by 08332-1109A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
09404-06432
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WATER PUMP
01547-06353
Superseded by 01547-0635B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
