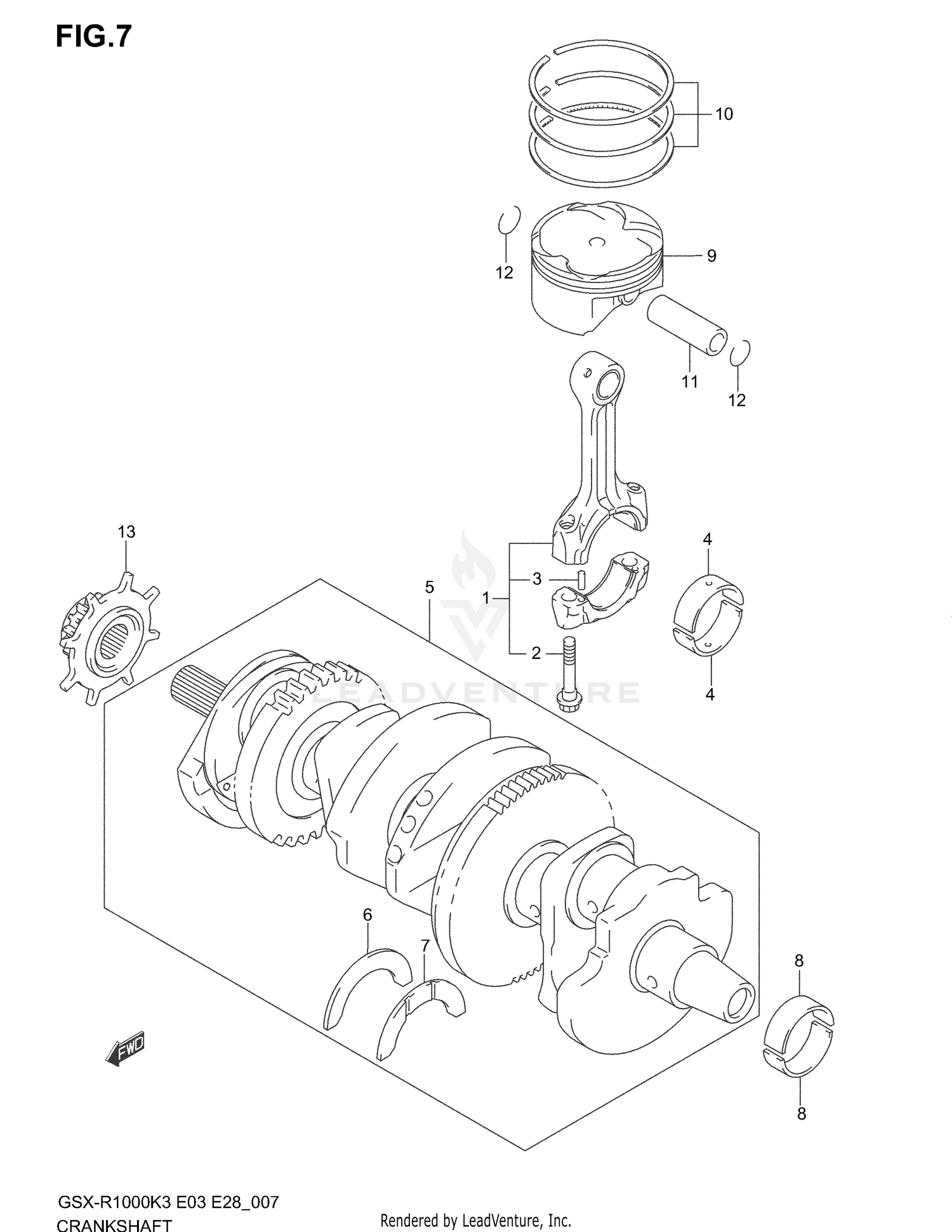

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD ASSY, CONNECTING
12160-40F00
|
$266.03 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
12163-24F00
|
$21.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CONNROD
12165-27A50
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (GREEN)
12164-40F00-0A0
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (BLACK)
12164-40F00-0B0
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (BROWN)
12164-40F00-0C0
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (YELLOW)
12164-40F00-0D0
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT SET
12000-40830
|
$1,363.25 | ||
|
Unavailable |
|||
|
#6
.BEARING, CRANK THRUST
12228-48B00-0E0
|
$12.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0B0
|
$13.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0C0
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0D0
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0E0
|
$12.41 | ||
|
Unavailable |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0F0
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0G0
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0H0
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (GREEN)
12229-40F00-0A0
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLACK)
12229-40F00-0B0
|
$23.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BROWN)
12229-40F00-0C0
|
$24.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (YELLOW)
12229-40F00-0D0
|
$24.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON
12111-40F00-0F0
|
$221.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING SET, PISTON
12140-40F00
|
$80.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
12151-40F00
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
09381-16001
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPROCKET, CAM CHAIN
12731-18G00
|
$85.76 | ||
|
Unavailable |
|||
